3M 3000 Series Straight Through Hole Shrouded PCB Header 24 Contacts 2.54mm Pitch 2 Row N3627-6202RB

Free Delivery in India | Lowest Global Shipping Charges

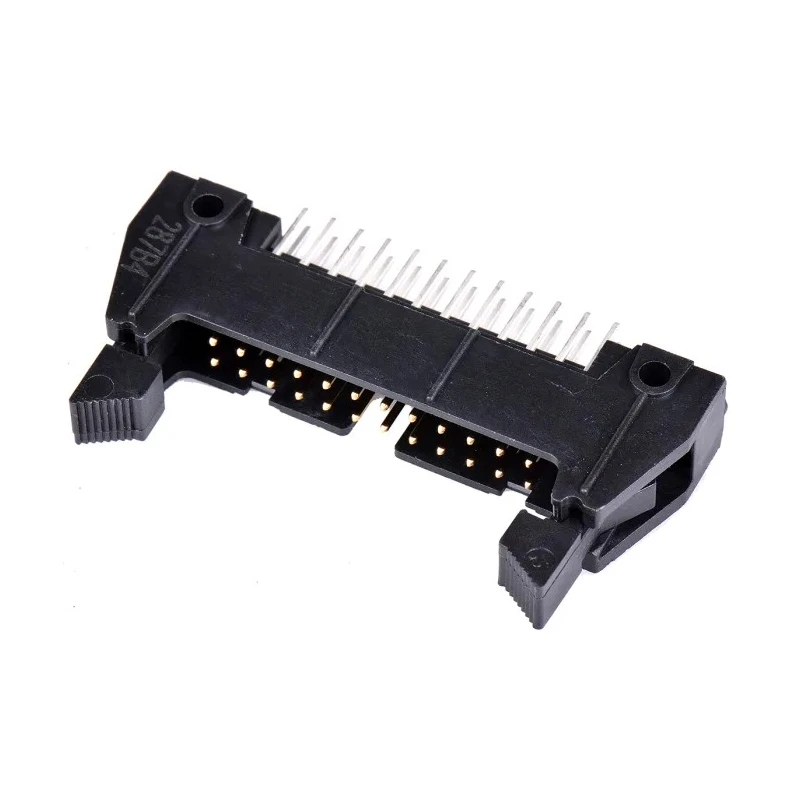

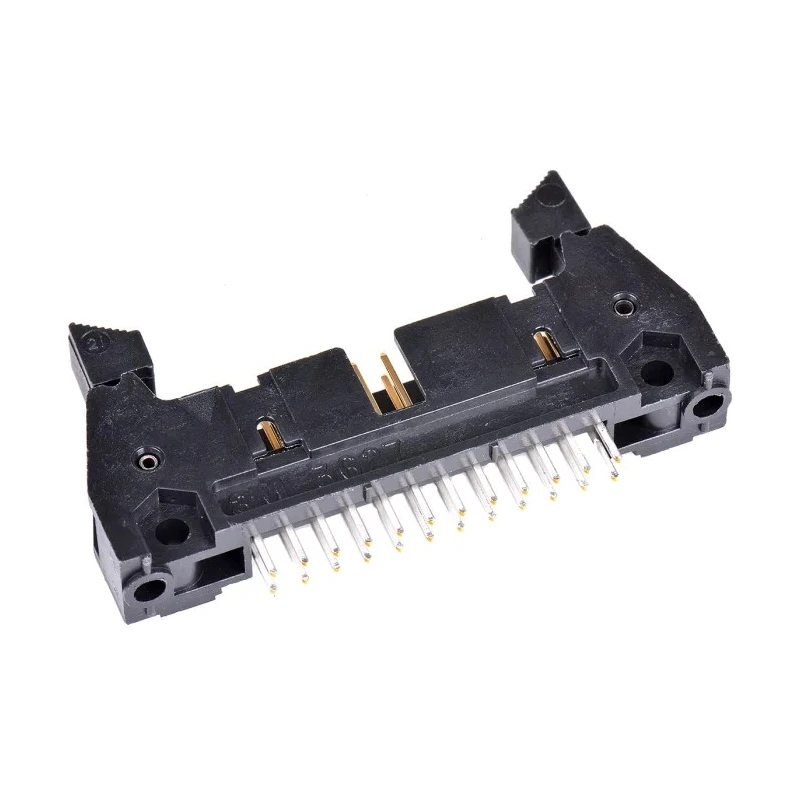

3M 3000 Series Straight Through Hole Shrouded PCB Header 24 Contacts 2.54mm Pitch 2 Row N3627-6202RB



Category PCB Header Brand 3M Condition New

Specifications

Country of Origin	India
Voltage	25V
Brand	3M
Orientation	Straight
Current	2.0
Model	N3627-6202RB
Mount Type	Through Hole
Housing Material	Glass Filled Polyester
Contact Material	Copper Alloy
Series	3000
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	24
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	0.01in
Mating Pin Length	6.2mm
Connector,PCB,multipole,header,solder,straight,short,24way,HE10Brand	3M

Key Features

The housing is made from high temperature glass filled polyester suitable for lead-free soldering up to 260°C.
Contacts are made of copper alloy with gold plating for enhanced conductivity and corrosion resistance.
Features ejector latches with roll-pin style to ensure secure retention in high vibration environments.
Connector system supports easy mating and secure connection with polarization features to prevent misalignment.
Operational temperature range extends from -55°C to 105°C, making it suitable for harsh industrial conditions.
Rated for 25V operating voltage and 2.0A current carrying capacity.
Ideal for industrial, instrumentation, medical, consumer, communication, and data applications.
Designed with robust mounting holes for stable PCB attachment via through-hole installation.

Product Description

3M N3627-6202RB 3000 Series Straight Through Hole Shrouded PCB Header is engineered to provide a reliable and durable connection solution with its 24 gold-plated contacts arranged in two rows at 2.54 mm pitch.

The connector housing is constructed from high temperature PCT thermoplastic glass filled polyester, allowing lead-free soldering processes up to 260°C as per JEDEC J-STD-020C standards.

This PCB header features robust ejector latches with short roll pin style design, ensuring secure mating and easy disconnection in high vibration or demanding industrial environments. The shrouded design protects contacts from mechanical damage and contamination.

Polarization features include center bump and multiple slots to minimize connector misalignment, with additional military-grade polarization achievable using a separate key.

The PCB header supports board-to-board and wire-to-board connector systems, making it versatile across applications in industrial, instrumentation, medical, consumer electronics, communications, and data networking markets.

Operating over a wide temperature range from -55°C to 105°C and rated for 25V and 2.0A, this connector provides dependable electrical performance under thermal and mechanical stresses.

High temperature resistant housing suitable for lead-free soldering. Gold plated copper alloy contacts ensure reliable conductivity. Shrouded design offers contact protection. Roll pin ejector latches provide secure engagement and retention.

Polarization features reduce misalignment risks. Through hole mount with robust mechanical stability. Wide operating temperature range for diverse environments. Applicable to multiple industrial and commercial sectors.

This PCB Header is part of EnvMart's Electronics Components category, ideal for users seeking high quality, durable PCB connectors for demanding electrical and electronic applications.
