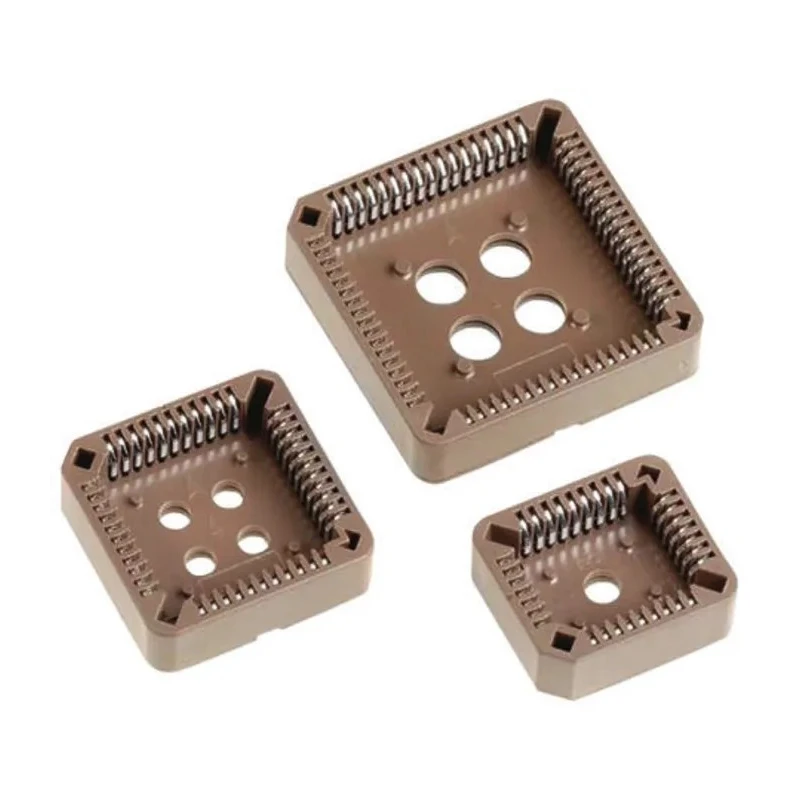

3M 1.27 mm Pitch 44 Way Through Hole SOIC PLCC Female IC Socket 8444-11B1-RK-TP

Free Delivery in India | Lowest Global Shipping Charges

3M 1.27 mm Pitch 44 Way Through Hole SOIC PLCC Female IC Socket 8444-11B1-RK-TP



Category IC Socket Brand 3M Condition New

Specifications

Country of Origin	India
Brand	3M
Orientation	Straight
Current	1A
Model	8444-11B1-RK-TP
Housing Material	Polyethylene Terephthalate
Contact Material	Copper Alloy
Series	8400
Termination Type	Solder
Maximum Operating Temperature	105°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Number of Rows	4
Pitch	1.27mm
Contact Plating	Tin over Nickel
Number of Contacts	44
Row Pitch	12.7mm
IC Socket Type	PLCC Socket
Socket Mount Type	Through Hole
TE Connectivity 1.27mm Pitch 44 Way PLCC SocketBrand	TE Connectivity
84 way SMT PLCC production socketBrand	3M
ASSMANN WSW 1.27 mm Pitch 44 Way DIP Through Hole PLCC IC SocketBrand	ASSMANN WSW

Key Features

Accepts PLCC devices with standard JEDEC outlines for compatibility.
Open top design facilitates efficient airflow to maintain device temperatures.
Molded slots enable convenient extraction of inserted devices.
Constructed with copper alloy contacts plated with tin over nickel for excellent conductivity.
PET housing provides durable insulation and environmental protection.
Rated for currents up to 1 Ampere ensuring stable electrical performance.
Suitable for wave soldering process compatibility only.
Operational temperature range from -40°C to +105°C supports diverse environments.

Product Description

3M 8444-11B1-RK-TP is a high-quality IC Socket designed as a female PLCC socket with a 1.27 mm pitch and 44 contact points. This socket features a through-hole SOIC package type optimized for reliable electronic interconnections in demanding industrial and manufacturing settings.

The socket housing is made from Polyethylene Terephthalate (PET), which offers excellent mechanical strength and environmental resistance, protecting the copper alloy contacts plated with tin over nickel from corrosion. The open top design facilitates unobstructed airflow, helping to maintain thermal stability for mounted devices.

With a current rating of 1A and temperature tolerance from -40°C to +105°C, this socket is suitable for various applications including automated chip carrier loading, electronic device assembly manufacturing, and environments requiring durable and highly reliable electronic connections.

The molded slots enhance ease of device extraction, and the socket is compatible strictly with wave soldering processes to assure joint quality. Its 44 contacts arranged in 4 rows with a precise 1.27 mm pitch and 12.7 mm row pitch assure proper alignment and excellent electrical performance.

Accepts PLCC devices with JEDEC standard outlines. Open top design improves airflow and cooling. Molded slots facilitate device removal. Copper alloy contacts with tin over nickel plating provide low resistance. Durable PET housing ensures protection and longevity.

Supports 1A current rating for reliable signal performance. Compatible only with wave soldering process. Temperature rating from -40°C to +105°C suits diverse industrial uses. 44 contacts in 4 rows with 1.27 mm pitch and 12.7 mm row pitch.

Ideal for automated loading systems and electronic assemblies.

This 3M IC Socket is well suited for industrial, manufacturing, laboratory, and electronics prototyping environments. Its strict compliance with JEDEC device outlines ensures interoperability with a wide range of PLCC chip carriers. Browse the EnvMart catalog for more quality IC Sockets and components from top manufacturers.
