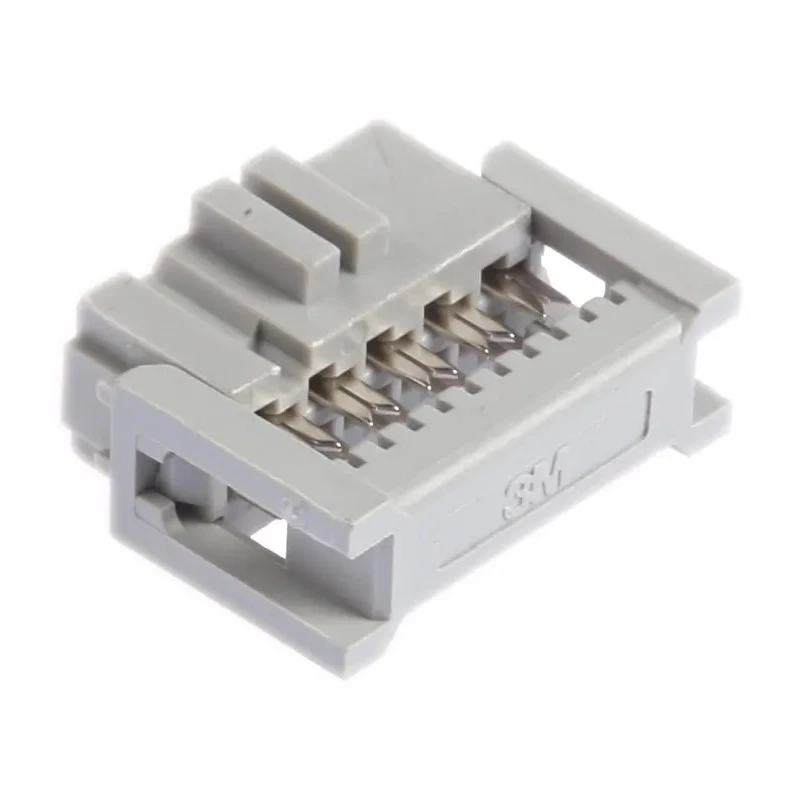

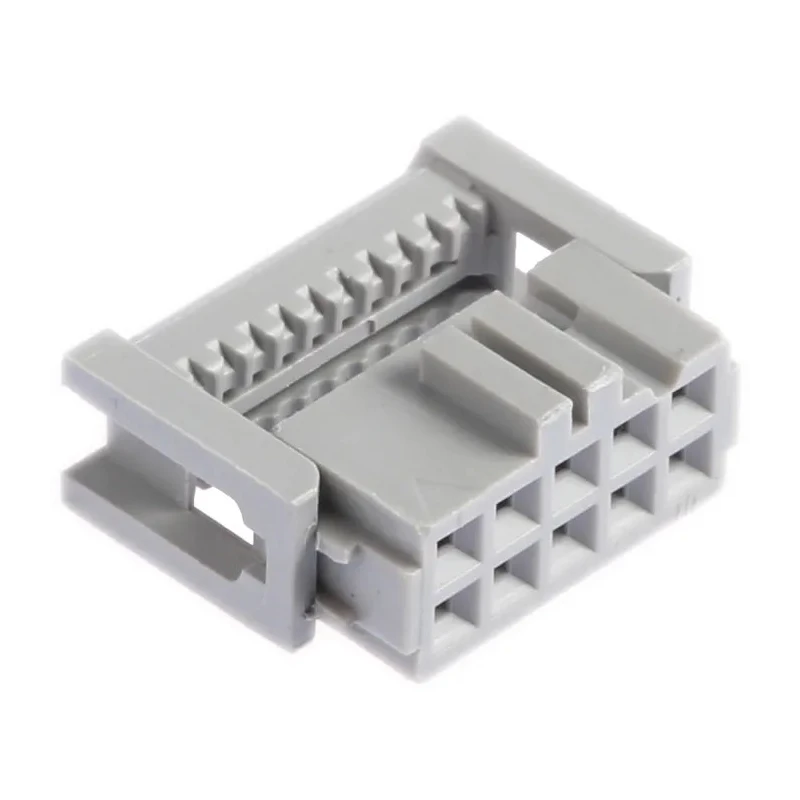

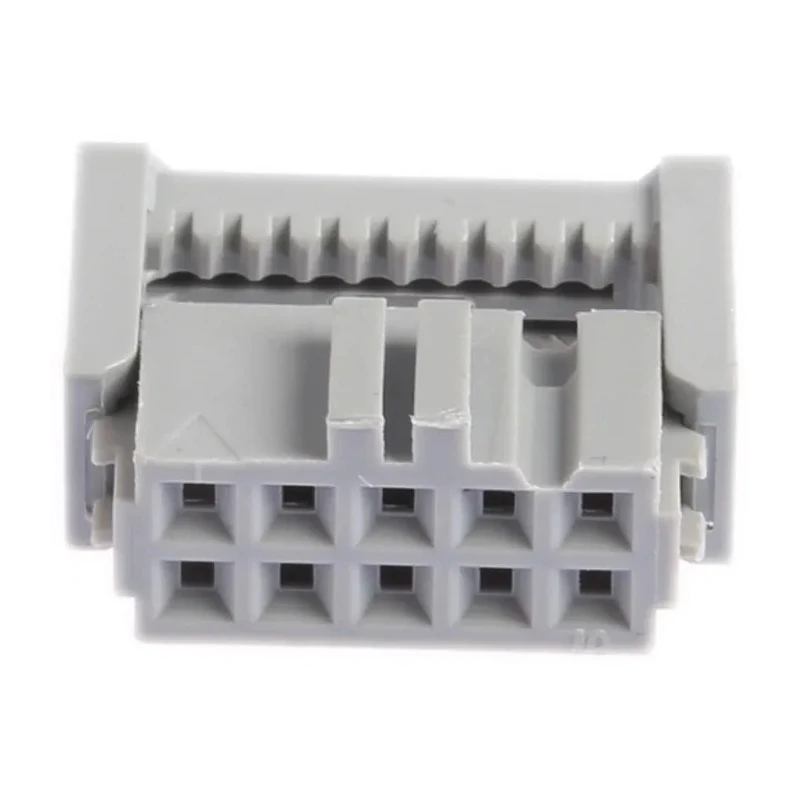

3M 10-Way IDC Connector Female for Cable, 2 Row 89110-0101HA 1000V AC 1A Pitch 2.54mm

Free Delivery in India | Lowest Global Shipping Charges

3M 10-Way IDC Connector Female for Cable, 2 Row 89110-0101HA 1000V AC 1A Pitch 2.54mm



Category IDC Connector Brand 3M Condition New

Specifications

Country of Origin	Vietnam
Voltage	1000V ac
Brand	3M
Orientation	Right Angle
Current	1A
Model	89110-0101HA
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Series	891
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	10
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Shrouded
3M 10-Way IDC Connector Female for Cable, 2 RowBrand	3M
TE Connectivity 10-Way IDC Connector Female for Cable, 2 RowBrand	TE Connectivity
RS PRO 10-Way IDC Connector Female for Cable, 2 RowBrand	RS PRO

Key Features

Preassembled design enables fast termination without stripping wires.
Gold over nickel contact plating ensures reliable electrical connections.
Double-recessed cover allows cable termination from either side.
Right angle orientation improves cable routing in tight spaces.
High operating temperature range from -55°C to 105°C suits various environments.
10 contacts arranged in two rows with phosphor bronze contact material.
Shrouded female connector with cable mount type enhances durability.
Suitable for computer drives, smartphones, laptop internal connections.

Product Description

3M 89110-0101HA 10-Way IDC Connector Female for Cable, 2 Row is a high-quality insulation displacement contact (IDC) socket designed for efficient ribbon cable termination with a pitch of 2.54mm, supporting up to 1A current and voltage up to 1000V AC. Its preassembled design simplifies installation by eliminating the need to strip wires, using sharp contact points to pierce insulation and ensure secure electrical contact.

The connector features a double-recessed cover allowing cable termination from either side and gold over nickel plating on phosphor bronze contacts for enhanced corrosion resistance and reliability. The connector's housing is made from durable polybutylene terephthalate, suited for demanding environments with operating temperatures ranging from -55°C to 105°C. The right-angle orientation supports compact cable routing in electronic devices.

This IDC socket is ideal for use in computer drives, smartphones, laptops, and other electronic peripherals requiring space-saving, reliable connections. Its 10-contact, 2-row female configuration suits various cable assemblies, meeting the standards of the 891 Series connectors known for their military polarization and quick termination features.

Preassembled connector enables quick cable termination. Gold over nickel contact plating for strong electrical contact. Double-recessed cover allows termination from both sides. Right angle mount supports compact assembly designs.

Wide operating temperature range from -55°C to 105°C. 10 female contacts arranged in two rows. Durable polybutylene terephthalate housing. Phosphor bronze contact material for reliable conductivity. Suitable for internal connections in computers and mobile devices.

3M IDC connectors are widely used in industrial electronics, computer manufacturing, telecommunications, and other commercial applications where fast, reliable cable terminations are essential. This female 10-way IDC connector facilitates efficient assembly line usage and manual or semi-automatic equipment loading, thanks to sword packaging design. Choose this connector to enhance productivity and connection reliability in your electronic assemblies.
