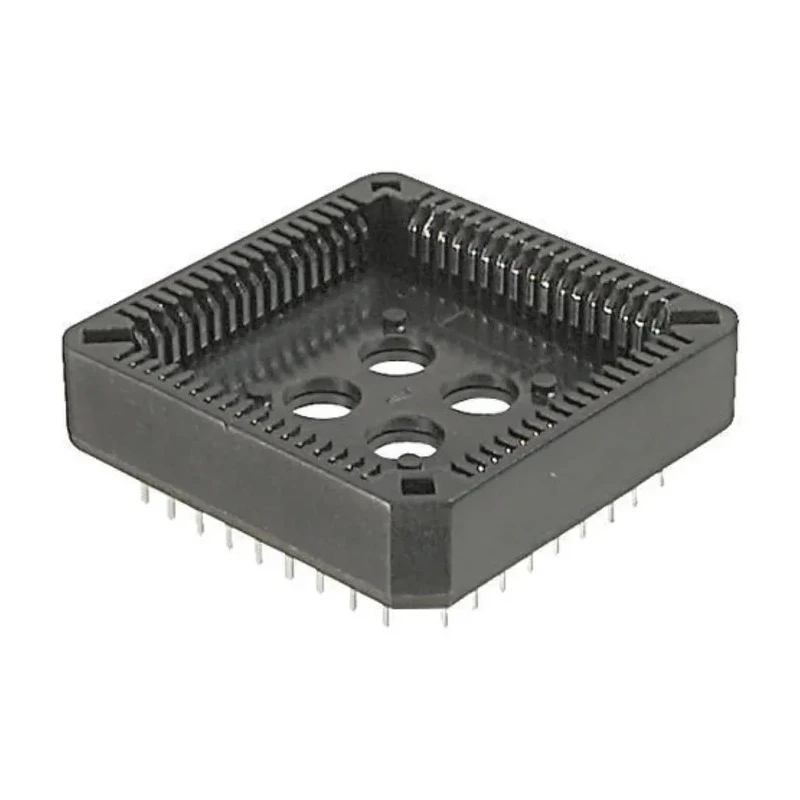

ASSMANN WSW 1.27 mm Pitch 68 Way DIP Through Hole PLCC IC Socket A-CCS 068-Z-T

ASSMANN WSW A-CCS 068-Z-T 1.27 mm Pitch 68 Way DIP Through Hole PLCC IC Socket offers a reliable and precise connection interface for integrated circuits and electronic modules. This IC socket features a 1.27 mm pitch, accommodating 68 contacts distributed in 4 rows to facilitate high-density PCB mounting. The through-hole device mount type with a straight orientation simplifies fitting to printed circuit boards.

The contacts are made from phosphor bronze, selected for its excellent electrical conductivity and mechanical resilience, and are plated with tin over nickel to ensure superior corrosion resistance and sustained performance.

Designed to handle a current rating of 1 ampere and a voltage rating up to 100 volts, this socket supports demanding electronic applications within its temperature range of -40°C to 105°C. Polybutylene terephthalate housing provides robust mechanical stability and resistance against industrial environmental factors.

This product complies with RoHS directives, promoting environmentally responsible manufacturing and usage. Suitable for use in industrial electronics, manufacturing equipment, and laboratory electronic assemblies, this socket facilitates secure and maintainable IC connections.

Features 68 contacts arranged over 4 rows for high-density applications. 1.27 mm pitch ensures compatibility with standard PCB layouts. Constructed with phosphor bronze contacts plated with tin over nickel for optimum conductivity and corrosion resistance.

Suitable for through-hole mounting with straight orientation for ease of assembly. Rated to handle currents up to 1A and voltages up to 100V for robust electrical performance. Housing made from durable polybutylene terephthalate material suited for industrial environments.

Wide operating temperature range from -40°C to 105°C supports various application conditions. Compliant with RoHS standards ensuring environmental and safety conformity. Manufactured in Taiwan, ensuring quality and consistency.
