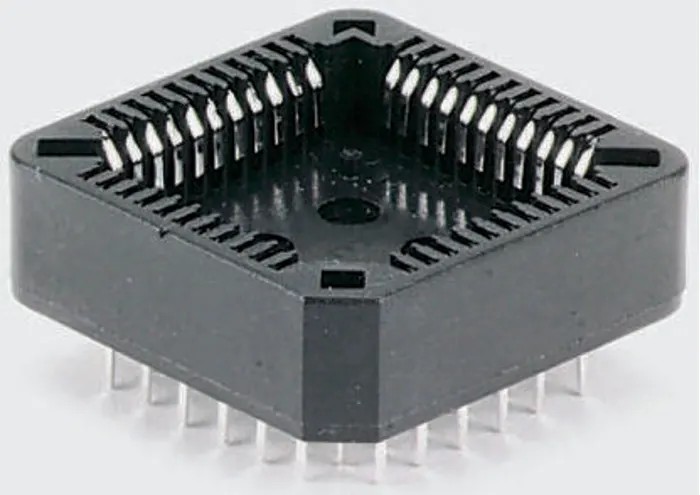

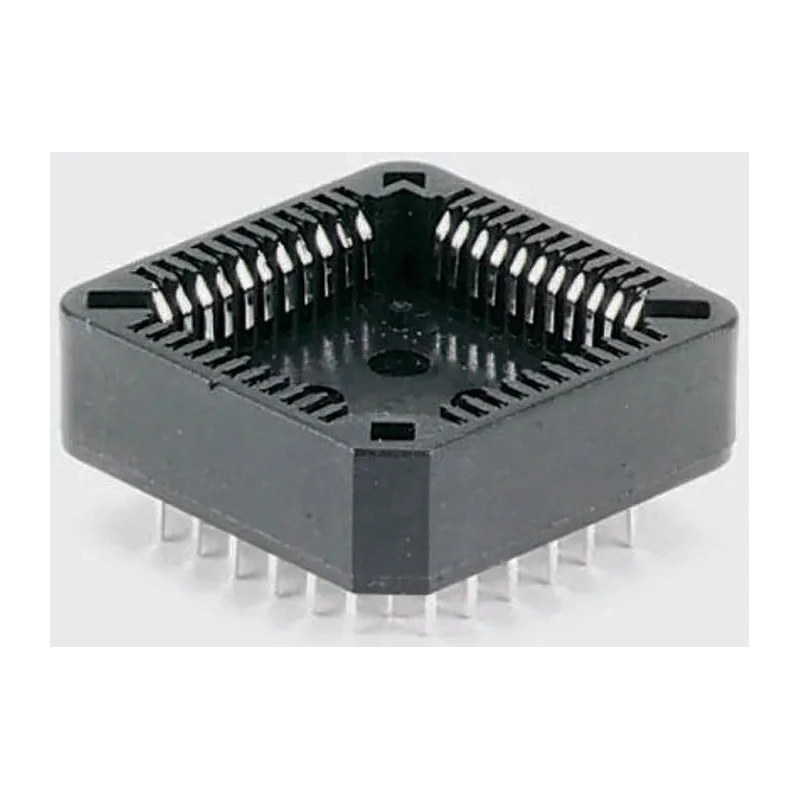

Winslow 1.27 mm Pitch 20 Way Through Hole PLCC IC Socket WPLCC020-1PTRC

The Winslow WPLCC020-1PTRC is a 20 way PLCC IC socket featuring a 1.27 mm pitch and through hole mounting design. This socket is engineered for reliable, durable electrical connections in electronic assemblies requiring surface mounting of plastic leaded chip carriers.

Constructed from high-quality phosphor bronze contacts plated with tin over copper, the socket ensures excellent conductivity and corrosion resistance. The housing is manufactured using polybutylene terephthalate material, combined with a glass-filled polyester insulation, providing enhanced mechanical strength and electrical insulation. The socket’s design supports straight contact orientation and solder termination for solid, lasting mounting on printed circuit boards.

With a current rating of 1 ampere and voltage capability up to 150 volts, this socket suits a broad range of IC applications. It maintains reliable operation within a temperature range of -55°C to 105°C, addressing demanding thermal environments. Compliance with JEDEC standard patterns and 2.54 mm grid spacing makes this socket suitable for standardized PLCC devices.

This IC socket’s through hole mount type facilitates robust mechanical retention on PCBs while enabling easy maintenance and replacement of ICs without soldering directly to the chip. The stand-offs incorporated in the design improve cleaning access and heat dissipation for enhanced operational reliability. Suitable extraction tools ensure safe removal of devices.

Features 20 contacts rated for 1A current carrying capacity. Contact pitch is 1.27 mm, suitable for PLCC devices. Phosphor bronze contact material with tin over copper plating ensures durability. Through hole mount type with straight contact orientation.

Operating temperature range from -55°C to 105°C. Housing made of polybutylene terephthalate with glass filled polyester insulation. Solder termination type for secure board mounting. Voltage rating of 100 to 150 V for diverse applications.

Complies with JEDEC patterns to fit standardized PLCC components. Manufactured in Taiwan, Province Of China.

This Winslow IC Socket is ideal for use in electronic manufacturing, prototyping, laboratory testing, and repair work involving PLCC devices. It supports rigorous industrial applications demanding reliable connection integrity and ease of IC replacement.
