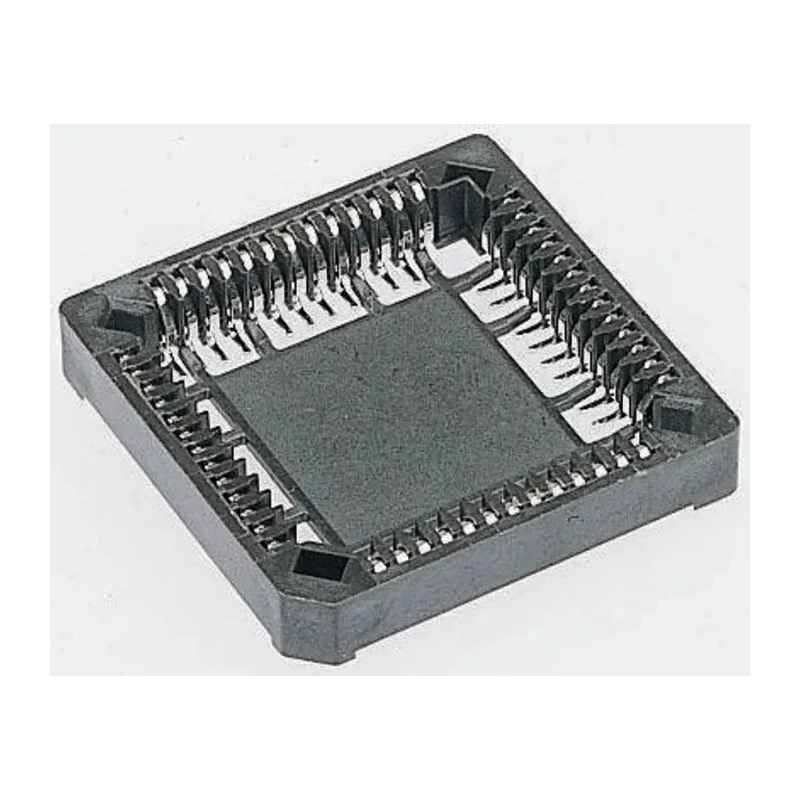

Winslow 1.27 mm Pitch 32 Way Through Hole PLCC IC Socket WPLCC032-ST1RC

Winslow WPLCC032-ST1RC 1.27 mm Pitch 32 Way Through Hole PLCC IC Socket is engineered to precisely fit PLCC chip carriers on printed circuit boards with 32 contact points arranged at a 1.27 mm pitch. The through-hole mounting style allows secure solder connection and excellent mechanical stability suitable for industrial and commercial electronics manufacturing.

The high-quality phosphor bronze contacts plated with tin over copper offer low electrical resistance and corrosion resistance to maintain signal integrity. This socket supports a steady current of 1A and withstands maximum operating voltages of 100 Vac rms and 150 Vdc, making it suitable for a wide range of low voltage electronic applications.

The housing is constructed from polyphenylene sulphide, known for its excellent thermal stability and electrical insulation properties, operational between -55°C and 105°C which covers industrial ambient temperature ranges. The socket's low profile design with a height of 4.5 mm enables space-saving on PCBs, especially critical when designing compact electronics.

This product features polarizing tabs that ensure correct IC orientation during insertion, protecting devices from damage due to reversal. The built-in standoffs facilitate efficient cleaning of the PCB and visual inspection of solder joints through a window, enhancing manufacturing quality control.

The socket is suitable for use in professional environments such as industrial electronics assembly, repair and prototyping laboratories, and HVAC control modules where reliable IC contacts are essential. It enables easy insertion and removal up to 100 cycles, supporting maintenance or upgrades without compromising socket integrity.

The device mount type is surface with solder termination, compatible with standard PCB assembly processes. Its 1.27 mm pitch matches JEDEC PLCC standards ensuring broad compatibility with various chip carrier ICs.

Set your designs apart with Winslow’s durable and performance-oriented IC Socket, optimized for precision and long-term reliability in semiconductor mounting. This socket is a valuable component for electronic engineers and manufacturing professionals handling PLCC ICs.

Explore more industrial-grade electronics components and socket accessories in EnvMart’s comprehensive catalog for enhanced industrial and laboratory solutions. The socket features phosphor bronze contacts plated with tin over copper for reliable electrical connection.

It supports a current rating of 1A and voltage ratings of 100 Vac rms and 150 Vdc. The orientation is straight with a low profile design having a height of 4.5 mm for compact PCB layouts. Operating temperature range is from -55°C to 105°C ensuring performance under varied environmental conditions.

The housing material is durable polyphenylene sulphide providing electrical insulation and mechanical strength. Contact grid follows a 0.1 inch (2.54 mm) JEDEC pattern with a 1.27 mm pitch suitable for standard PLCC chip carriers.

Features polarizing alignment to avoid incorrect IC insertion and standoffs to ease PCB cleaning and solder joint inspection. Typical mechanical life is 100 insertion cycles, ideal for reliable prototyping and production use.

Designed for surface device mounting with through-hole solder termination ensuring stable mechanical and electrical connection on PCBs.
