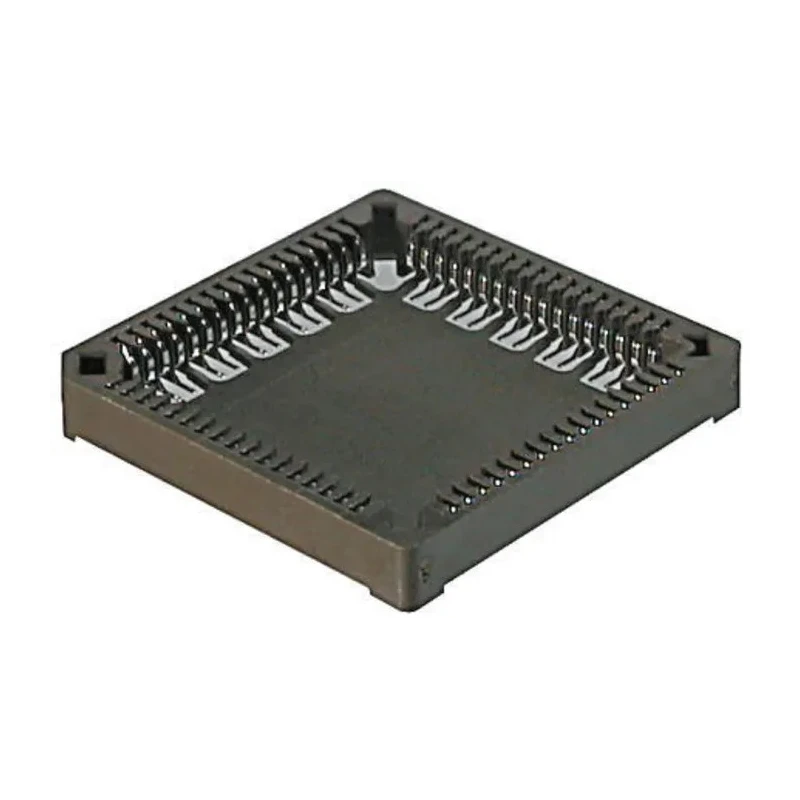

ASSMANN WSW 1.27 mm Pitch 68 Way DIP Through Hole PLCC IC Socket A-CCS 068-Z-SM

The ASSMANN WSW A-CCS 068-Z-SM is a professional-grade 68 Way DIP Through Hole PLCC IC Socket featuring a 1.27 mm pitch. Designed for electronic, industrial, and manufacturing applications, this IC socket ensures secure and reliable connections for integrated circuits.

This socket has 68 contacts arranged in 4 rows, supporting a current rating of 1 A and an operating voltage of 100 V. The contact material is high-quality phosphor bronze, plated with tin over nickel for excellent conductivity and corrosion resistance. The housing made of nylon offers durability and withstands operating temperatures from -40°C to 105°C, making it suitable for various industrial environments.

It employs a through-hole mounting type with straight orientation and solder termination, making it compatible with standard PCB assembly processes. Compliance with RoHS standards guarantees it is environmentally friendly and free of hazardous substances.

This component is ideal for use in electronics manufacturing, prototype development, and repair work where reliable IC socketing is required. Manufactured in Taiwan, Province Of China, it meets rigorous quality standards and performance expectations.

The socket supports 68 contacts arranged in 4 rows for effective IC interfacing. Operates at 100 V voltage with 1 A current capacity. Phosphor bronze contacts with tin over nickel plating ensures strong conductivity and resistance to corrosion.

Nylon housing material for durability and wide temperature operation (-40°C to 105°C). Through hole mounting technology with straight orientation and solder termination. RoHS compliant for environmentally friendly manufacturing and use.

Manufactured in Taiwan, Province Of China, ensuring quality assurance. 1.27 mm pitch and PLCC socket type compatible with various IC packages.

This ASSMANN WSW IC socket is widely used in industrial, manufacturing, laboratory, and electronics prototyping sectors. For detailed technical documents and 3D models, users can reference additional resources available from manufacturers and distributors.
