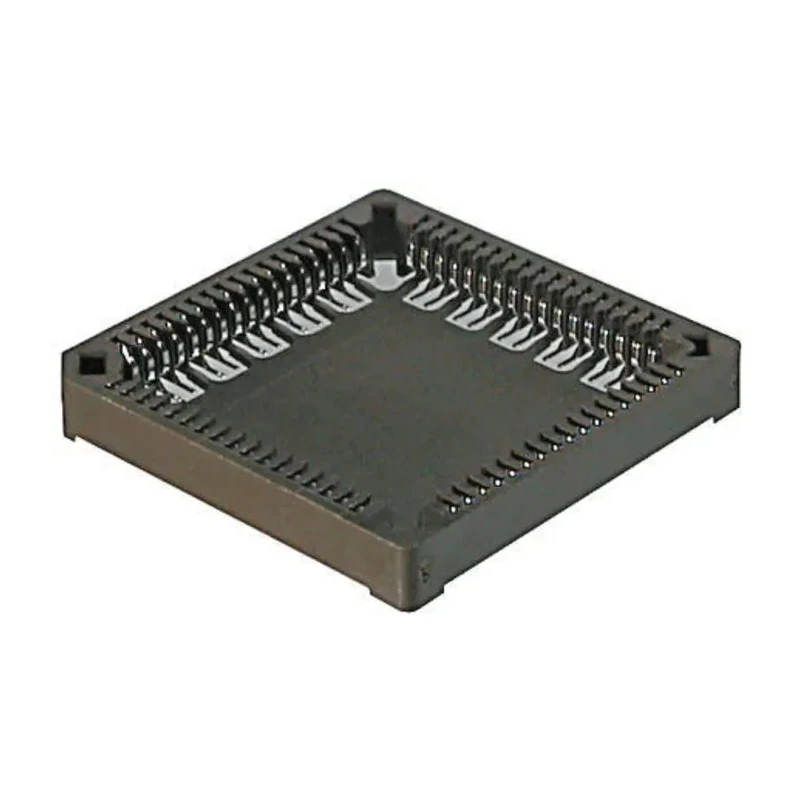

ASSMANN WSW 1.27 mm Pitch 28 Way Surface Mount PLCC IC Socket A-CCS 028-Z-SM

ASSMANN WSW A-CCS 028-Z-SM is a 28 Way Surface Mount PLCC IC Socket designed with a fine 1.27 mm pitch for precise and reliable mounting on PCBs. It is engineered to meet the demands of modern electronic assembly, providing secure connections and robust electrical performance.

The socket features 28 phosphor bronze contacts plated with tin over nickel to enhance conductivity and resistance to corrosion. The 4-row contact arrangement supports efficient connection density for complex circuits.

Rated for a maximum current of 1 ampere and voltage of 100 volts, this socket is suitable for electronic components requiring moderate power handling. It is designed with a straight orientation and surface mount device (SMD) mounting for integration into automated manufacturing processes.

The nylon housing material provides excellent thermal stability and electrical insulation, ensuring device reliability across operating temperatures from -40 degrees Celsius up to 105 degrees Celsius. This wide temperature range makes it suited for industrial and commercial electronic applications operating under varying environmental conditions.

The A-CCS series socket complies with RoHS standards, affirming its environmentally friendly composition and adherence to international regulatory requirements. Termination by solder ensures firm, durable attachment to printed circuit boards, facilitating high-volume assembly in industrial electronics manufacturing.

This IC socket is manufactured in Taiwan, Province Of China, reflecting consistent quality control and production excellence. 1.27 mm pitch for precise surface mount applications. 28 contacts arranged in 4 rows ensuring connectivity density.

Phosphor bronze contact material with tin over nickel plating. Supports 1 A current and 100 V voltage rating. Nylon housing for insulation and thermal stability. Straight orientation with surface mount device mounting type.

Operates from -40°C to 105°C temperature range. RoHS compliant for environmental safety. Solder termination for secure PCB attachment. Manufactured in Taiwan, Province Of China.

Ideal for use in industrial, laboratory, and commercial electronic device assembly applications, the ASSMANN WSW A-CCS 028-Z-SM IC Socket enhances production efficiency and connectivity reliability. Explore more from ASSMANN WSW and other electronics components at EnvMart.
