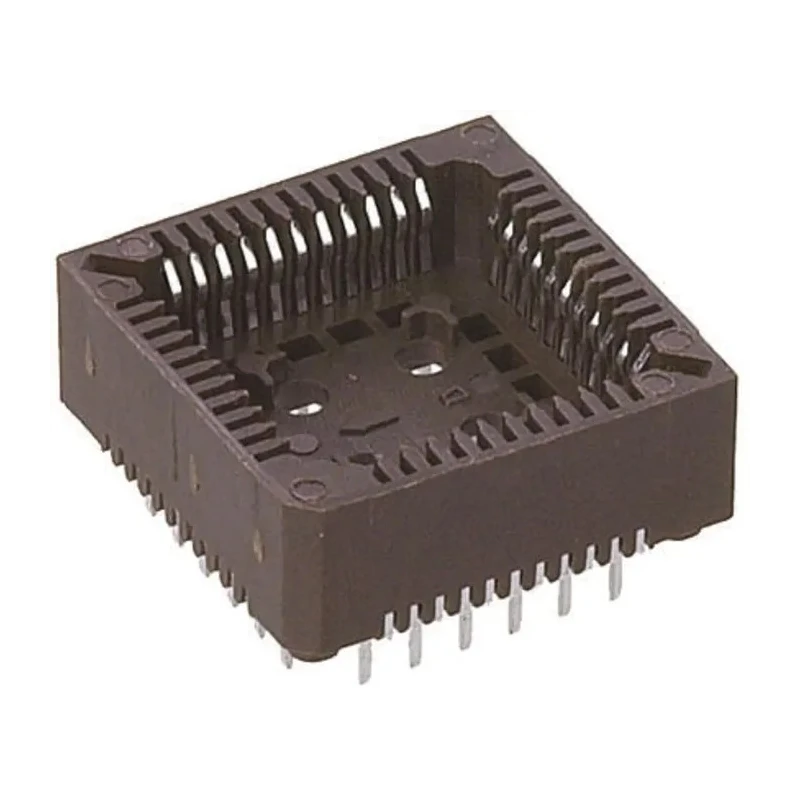

Preci-Dip 1.27 mm Pitch 68 Way DIP Through Hole PLCC IC Socket 540-88-068-24-008

Preci-Dip 540-88-068-24-008 is a high-quality 68 Way DIP Through Hole PLCC IC Socket that features a 1.27 mm pitch, designed for precise and durable mounting of IC packages on PCBs. This PLCC socket meets JEDEC MO-047 standards for square IC package sizes and ensures compatibility with industrial and electronic manufacturing applications.

The socket package type is DIP (Dual Inline Package), featuring through-hole mounting for stable soldering on printed circuit boards. The 68 contacts are arranged in 4 rows, providing a secure electrical connection with low contact resistance, made from phosphor bronze and plated with tin for corrosion resistance and stable conductivity.

Rated for a current of 1 Ampere and supporting voltages up to 150 Volts, this socket is suitable for a wide range of electronic circuits in industrial, laboratory, and manufacturing environments. Its housing is constructed from fibreglass reinforced polyphenylene sulphide, offering excellent mechanical strength and resistance to elevated temperatures.

The socket performs reliably at extreme operating temperatures ranging from -55 degrees Celsius to 125 degrees Celsius. It assures mechanical robustness with a minimum of 50 insertion and removal cycles, making it ideal for prototyping and production maintenance. The contact pressure is maintained at a minimum of 1.5 Newtons per contact to ensure stable electrical performance.

This product meets the UL 94V-0 flammability standard, providing enhanced safety in electrical applications. Designed and manufactured in Switzerland, this precision socket aligns with high industrial and quality benchmarks.

The socket features a DIP package type suitable for through-hole PCB mounting. It has 68 contacts arranged in 4 rows with a pitch of 1.27 mm. The contact material is phosphor bronze with tin plating to ensure durability and conductivity.

Rated for 1A current and voltage up to 150V, suitable for various low-power electronic applications. The housing is made of fibreglass reinforced polyphenylene sulphide for high temperature resistance. Operates reliably between -55°C and 125°C temperature range.

The contact pressure is minimum 1.5 N per contact for secure insertion. Mechanical life guarantees a minimum of 50 insertion cycles. Complies with UL 94V-0 flammability standard for safety.

This IC socket is widely used in industrial electronics, electronic manufacturing, laboratory testing, and prototyping. It enables efficient and reliable installation and replacement of PLCC IC packages on PCBs.
