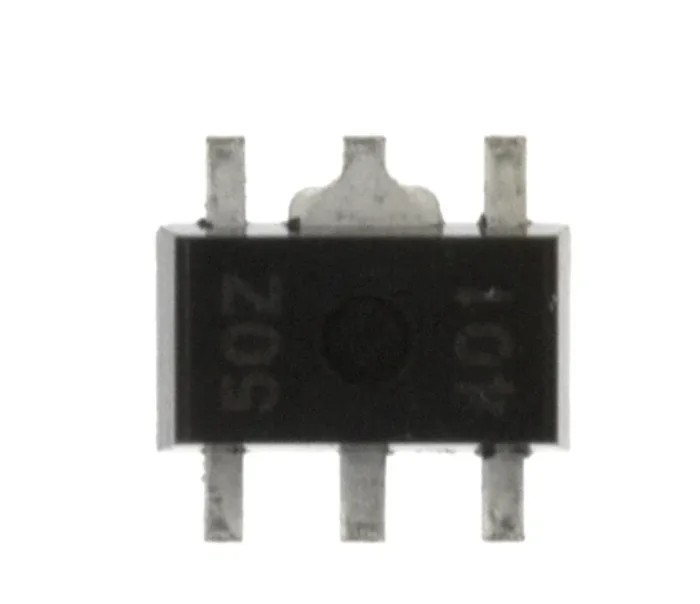

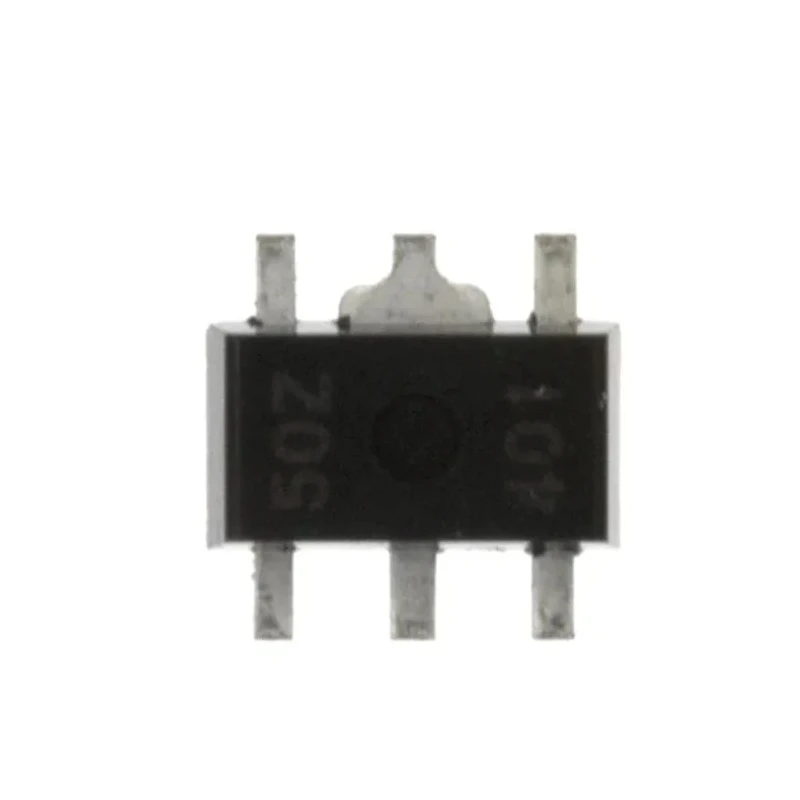

Nisshinbo Micro Devices 1-Channel Boost Controller 12V 400 mA SOT-89 NJW4132U2-C-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJW4132U2-C-TE1 |
| Series | NJW4132 |
| Topology | Boost |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-89 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 40V |
| Maximum Output Current | 2.25A |
| Standards/Approvals | RoHS |
| Maximum Output Voltage | 12V |
| Minimum Input Voltage | 5V |
| Minimum Output Current | 400mA |
Key Features
- The device supports a maximum output voltage of 12V and a maximum output current of 2.25A.
- Operates within a wide input voltage range from 5V to 40V suitable for varied power sources.
- Equipped with PWM control and built-in compensation for stable performance.
- The package type is SOT-89, allowing compact and efficient PCB mounting.
- Operates reliably under extreme temperatures from -40°C to 85°C.
- RoHS compliant ensuring environmental safety and regulatory compliance.
- Single output topology boost converter designed for precise voltage boosting.
- Ideal for industrial, electronic component assembly, power management circuits, and embedded system designs.
Product Description
Nisshinbo Micro Devices NJW4132U2-C-TE1 is a high-frequency switching regulator IC designed for boost converter applications with a broad input voltage range from 5V to 40V. This 1-Channel Boost Controller provides a maximum output voltage of 12V and supports output currents up to 2.25A, making it suitable for various power management needs in industrial and electronic systems.
The device features built-in compensation circuitry and PWM control for efficient and stable voltage regulation. Packaged in the compact SOT-89 form factor, it facilitates easy integration into space-constrained PCB designs.
The operating temperature range from -40°C to 85°C allows this controller to function reliably under harsh environmental conditions. Compliance with RoHS standards underlines its environmental compatibility and manufacturing quality.
This boost controller is ideal for use in industrial electronics, power supply modules, embedded control circuits, and other applications requiring reliable DC-DC conversion with precise output voltage control.
The device supports a maximum output voltage of 12V and max output current of 2.25A. Wide input voltage range from 5V to 40V accommodates various power sources. PWM control and integrated compensation ensure stable operation.
Compact SOT-89 package supports efficient PCB mounting. Wide operating temperature range of -40°C to 85°C for demanding conditions. RoHS compliant for environmentally responsible use. Single output channel topology designed specifically for boost applications.
Perfect for industrial and embedded power management solutions. Explore more semiconductor components and power management ICs at EnvMart for your next industrial or electronic design project.
Explore more products in our DC to DC Controllers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 12V.
It supports a maximum output current of 2.25A.
This boost controller operates within a wide input voltage range from 5V to 40V.
The device is packaged in a compact SOT-89 form factor, suitable for efficient PCB mounting.
It operates reliably in temperatures ranging from -40°C to 85°C.
This model uses a boost topology for voltage conversion.
Yes, this device is RoHS compliant, ensuring environmental safety and regulatory compliance.
It is ideal for industrial electronics, power supply modules, and embedded control circuits.
The minimum output current is 400mA.
It is equipped with PWM control and built-in compensation for stable operation.
The country of origin for this model is India.
This device has a single output channel.
