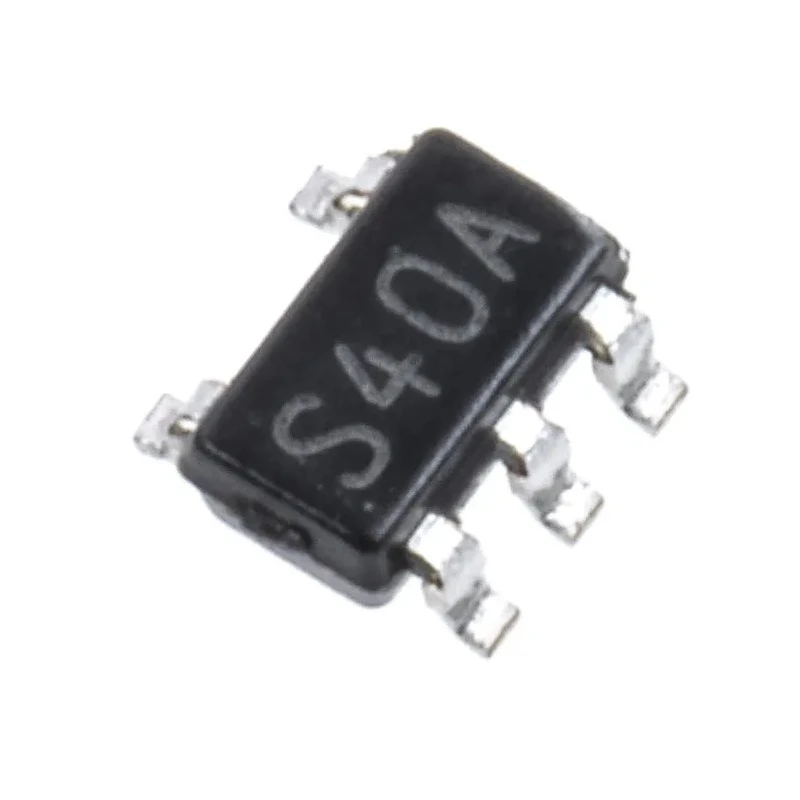

Texas Instruments 5-Pin, SOT-23 5-Channel Current Mode PWM Controller 1400 kHz 14V LM2611AMF/NOPB

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments 5-Pin, SOT-23 5-Channel Current Mode PWM Controller 1400 kHz 14V LM2611AMF/NOPB

Name: Texas Instruments 5-Pin, SOT-23 5-Channel Current Mode PWM Controller 1400 kHz 14V LM2611AMF/NOPB
Brand: Texas Instruments
SKU: 194820
Price: 5.89 USD
Availability: InStock



Category DC to DC Controllers Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	1.02mm
Length	2.92mm
Model	LM2611AMF/NOPB
Width	1.6mm
Mount Type	Surface
Maximum Duty Cycle	88%
Series	LM
Output Current	1.2A
Maximum Operating Temperature	125°C
Package Type	SOT-23
Minimum Operating Temperature	-40°C
Number of outputs	5
Output Voltage	-1.23V
Maximum Switching Frequency	1400kHz
Pin Count	5
Maximum Supply Voltage	14V
Minimum Supply Voltage	2.7V
Start-up Supply Current	1.8mA
PWM Controller Type	Current Mode
Cuk switching regulator,LM2611AMFBrand	National Semiconductor

Key Features

Operates with a maximum switching frequency of 1400 kHz for high-speed applications.
Consumes a low start-up supply current of 1.8 mA for energy efficiency.
Supports an output current of up to 1.2 A with a maximum duty cycle of 88%.
Designed for surface mount applications using a compact SOT-23 package with 5 pins.
Operates over a wide temperature range from -40°C to 125°C for rugged environments.
Features current mode PWM control ensuring stable and precise power regulation.
Suitable for DC to DC converter designs requiring step-up, step-down, or buck-boost configurations.
Package dimensions are 2.92 mm length, 1.6 mm width, and 1.02 mm height.

Product Description

Texas Instruments LM2611AMF/NOPB is a high-efficiency 5-channel current mode PWM controller designed for DC to DC switching regulator applications. It supports a maximum switching frequency of 1400 kHz and a maximum supply voltage of 14V, allowing it to be used in various power management circuits.

This device is housed in a compact 5-pin SOT-23 package suitable for surface mount technology, making it ideal for space-constrained electronic designs. It supports an output current capability of 1.2 A with an 88% maximum duty cycle, offering reliable performance in demanding industrial and commercial applications.

With a low start-up supply current of 1.8 mA, the LM2611AMF/NOPB is well-suited for battery-powered and energy-efficient systems. The device operates over a wide temperature range from -40°C to 125°C, ensuring stability in harsh environmental conditions.

Its current mode PWM controller architecture delivers precise and stable voltage regulation, supporting step-up, step-down, and buck-boost DC to DC converter designs. Typical applications include power management in telecommunications, portable instrumentation, and embedded systems.

Maximum switching frequency: 1400 kHz for high-speed applications. Start-up supply current: 1.8 mA for low power consumption. Output current: 1.2 A with 88% maximum duty cycle. Compact 5-pin SOT-23 package suitable for surface mounting.

Operating temperature range: -40°C to 125°C for robust operation. Current mode PWM control for stable power regulation. Package dimensions: 2.92 mm (L) x 1.6 mm (W) x 1.02 mm (H).

This component is a reliable choice for industrial, laboratory, telecommunications, and electronic manufacturing sectors requiring efficient power management ICs. Browse EnvMart for more Texas Instruments power management solutions and DC to DC Controllers.
