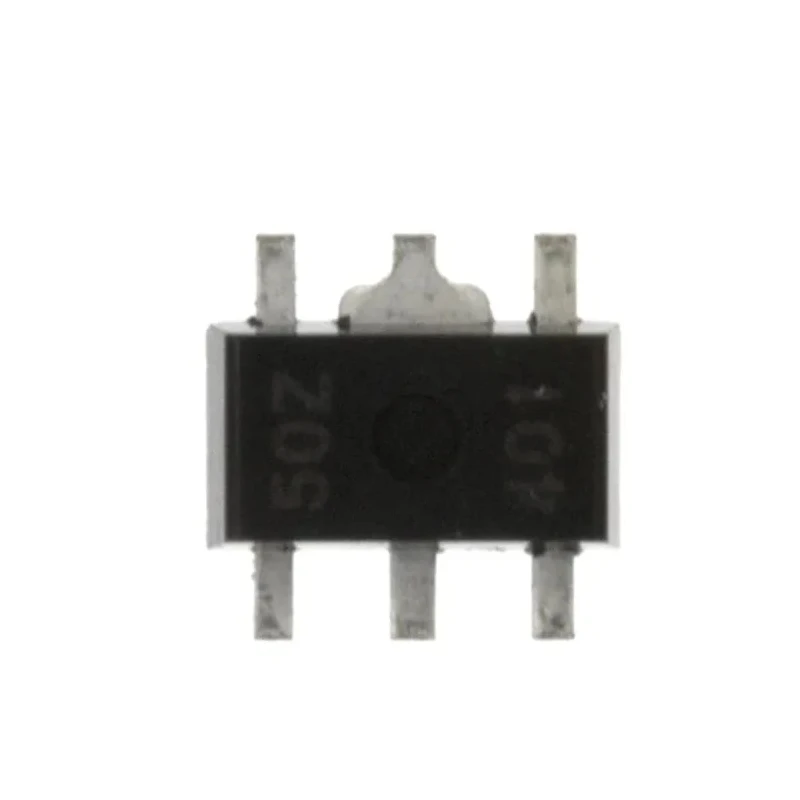

Nisshinbo Micro Devices 1-Channel Boost Controller NJW4132U2-C-TE1 12V 400mA SOT-89

Free Delivery in India | Lowest Global Shipping Charges

Nisshinbo Micro Devices 1-Channel Boost Controller NJW4132U2-C-TE1 12V 400mA SOT-89

Name: Nisshinbo Micro Devices 1-Channel Boost Controller NJW4132U2-C-TE1 12V 400mA SOT-89
Brand: Nisshinbo Micro Devices
SKU: 177904
Price: 2.48 USD
Availability: InStock



Category DC to DC Controllers Brand Nisshinbo Micro Devices Condition New

Specifications

Country of Origin	India
Brand	Nisshinbo Micro Devices
Model	NJW4132U2-C-TE1
Series	NJW4132
Topology	Boost
Maximum Operating Temperature	85°C
Package Type	SOT-89
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	40V
Maximum Output Current	2.25A
Standards/Approvals	RoHS
Maximum Output Voltage	12V
Minimum Input Voltage	5V
Minimum Output Current	400mA

Key Features

The device operates between 5V minimum and 40V maximum input voltage.
Supports maximum output voltage of 12V with a minimum output current of 400mA.
Maximum output current rating is 2.25A ensuring robust current handling.
Package type is SOT-89 suitable for surface-mount applications.
Operates reliably in temperatures from -40°C up to 85°C.
Built-in compensation circuit with PWM control enhances performance stability.
The boost controller is RoHS compliant for environmental safety.
Single output channel designed specifically for boost topology converters.

Product Description

Nisshinbo Micro Devices presents the NJW4132U2-C-TE1, a 1-channel boost controller IC designed for high-performance DC-DC boost converter applications. The device features a wide input voltage range from 5V to 40V and supports a maximum output voltage of 12V, making it suitable for various power management scenarios in industrial and electronic applications.

This boost controller is contained within a compact SOT-89 package, enabling easy integration in surface mount technology (SMT) designs. Its built-in compensation circuit and pulse width modulation (PWM) control allow stable and efficient voltage regulation, contributing to improved power efficiency and minimized energy losses. The device handles a minimum output current of 400mA and a peak current of 2.25A, ensuring reliable performance under demanding conditions.

The IC operates over a wide temperature range from -40°C to 85°C, ensuring suitability for harsh industrial environments. Additionally, it complies with RoHS standards, confirming its environmental friendliness and conformity to regulatory requirements.

Applications include power management in consumer electronics, industrial machinery control circuits, and other systems requiring a compact, efficient boost converter solution. The single output channel is optimized for boost topology arrangements, providing precise voltage step-up from varied input sources.

The device features PWM control with integrated compensation circuitry. Designed to operate with a wide input voltage span from 5V up to 40V. Provides a regulated output voltage of up to 12V and current handling up to 2.25A.

Compact SOT-89 package facilitates easy PCB integration. Meets RoHS environmental standards for safe deployment. Supports operating temperatures from -40°C to 85°C for industrial robustness. Suitable for use in electronic and industrial power conversion applications.

Explore more DC-DC Controllers from established semiconductor suppliers at EnvMart for dependable and efficient power management solutions to meet your industrial and electronic design requirements.
