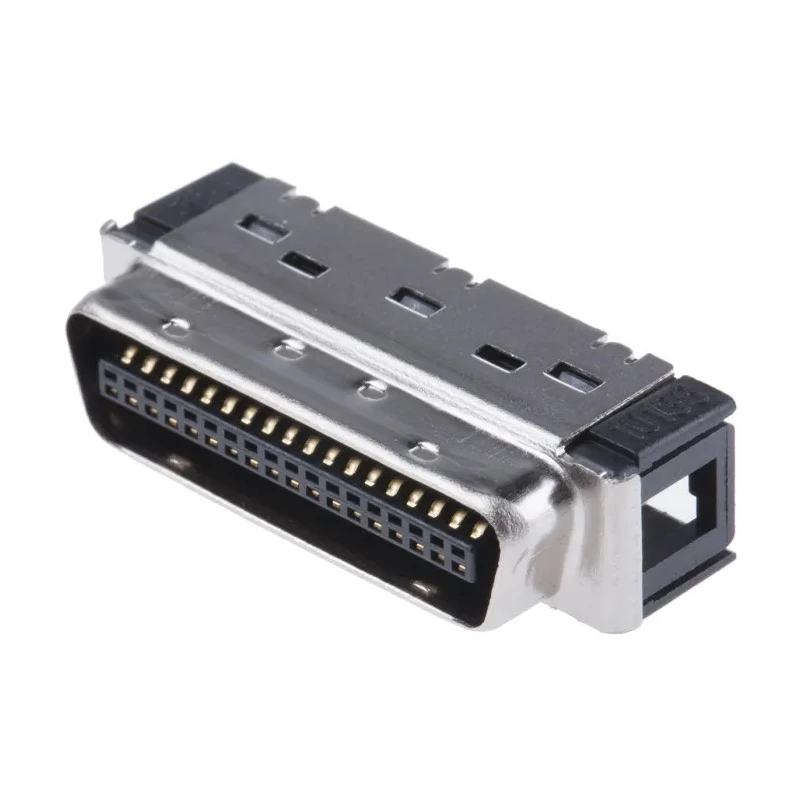

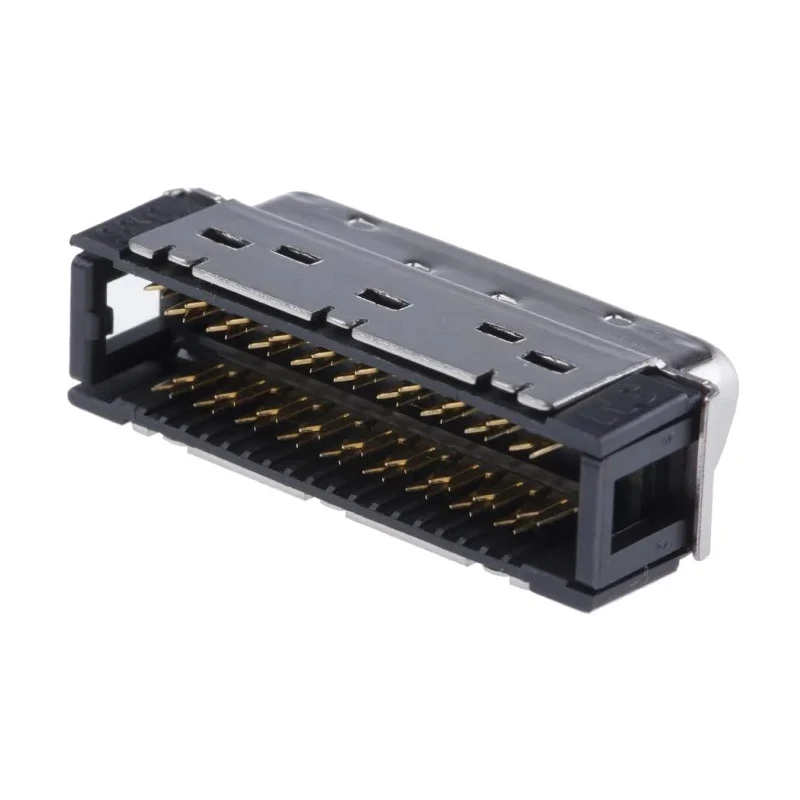

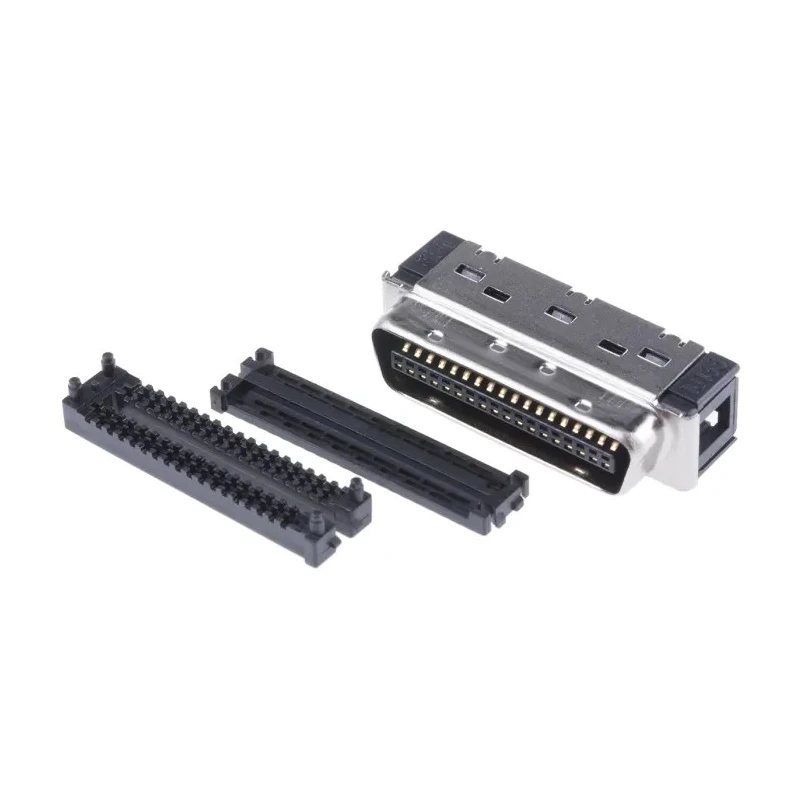

3M 101 Series 36-Way Straight Cable D-Sub Connector, 1.27mm Pitch, IDC Wiremount, Male, 10136-6000EL
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 150.0, 200.0V |
| Brand | 3M |
| Orientation | Straight |
| Current | 1A |
| Model | 10136-6000EL |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | 101 |
| Mounting Hardware | Wire |
| Termination Type | IDC |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Pitch | 1.27mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 36 |
| Contact Gender | Male |
| Connector Gender | Male |
| 3M 101 36 Way Straight 2.54 mm Pitch Cable D-Sub Connector MaleBrand | 3M |
Key Features
- Features a 36-way configuration for high-density signal interfacing.
- 1.27 mm pitch enables compact design in electronic assemblies.
- IDC termination supports rapid installation and secure connections.
- Male connector orientation for compatibility with PCB receptacles and cable assemblies.
- Constructed with steel housing for durability and EMI/ESD protection.
- Gold-over-nickel plated copper alloy contacts ensure optimal conductivity and long life.
- Rated for 1A current and up to 200V maximum voltage.
- Suitable for operating temperatures from -20°C to 85°C.
Product Description
The 3M 10136-6000EL is a high-density, straight cable D-sub connector designed for demanding electronic and industrial environments. Offering a 36-way configuration with a fine 1.27 mm pitch, this IDC wiremount plug achieves efficient signal distribution and occupies minimal space in control panels or computing assemblies. Its robust steel housing delivers mechanical protection and shields against electromagnetic interference and electrostatic discharge.
This male connector utilizes IDC (insulation displacement contact) termination, streamlining cable installation and ensuring reliable connections. The copper alloy contacts are plated with gold over nickel, enhancing signal integrity and resistance to environmental factors. The connector is rated for 1A current and can withstand up to 200V, supporting a wide range of digital and analog signals.
The 10136-6000EL is suitable for applications such as industrial automation, medical equipment, and high-performance computing systems. Its straight cable-mount design integrates seamlessly with ribbon, round, twisted pair, or twinax cables, and is compatible with various 3M backshells and accessories. It mates with PCB receptacles for secure multi-pin interfacing.
Operating between -20°C and 85°C, this D-sub connector ensures performance under varying environmental conditions. The product's IDC termination is ideal for fast, tool-less installation, aiding reliability in service and field situations. Gold-over-nickel plating and copper alloy materials contribute to longevity and low contact resistance.
In industrial, laboratory, and computing applications, the 3M 101 Series D-sub connectors are favored for their robust construction, high-density capability, and strong EMI/ESD protection. This connector is suitable for use in hospital equipment, industrial computers, and demanding control systems.
Explore additional D-Sub Connectors and related components in the Electronics & Electricals category on EnvMart for comprehensive solutions to your connectivity needs from leading brands such as 3M.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 36-way configuration, designed for high-density signal interfacing with a 1.27 mm pitch.
The connector is rated for a maximum voltage of up to 200V.
It utilizes IDC (insulation displacement contact) termination, which supports rapid installation and secure connections.
This connector is rated for a current of 1A.
The housing is made of steel, while the contacts are copper alloy plated with gold over nickel for optimal conductivity.
It can operate within a temperature range of -20°C to 85°C.
This model has a straight orientation, making it compatible with PCB receptacles and cable assemblies.
It is suitable for applications in industrial automation, medical equipment, and high-performance computing systems.
It integrates seamlessly with ribbon, round, twisted pair, or twinax cables.
The robust steel housing provides mechanical protection and shields against electromagnetic interference (EMI) and electrostatic discharge (ESD).
This model is designed for cable mounting and uses wire as the mounting hardware.
The connector is manufactured in Japan.
