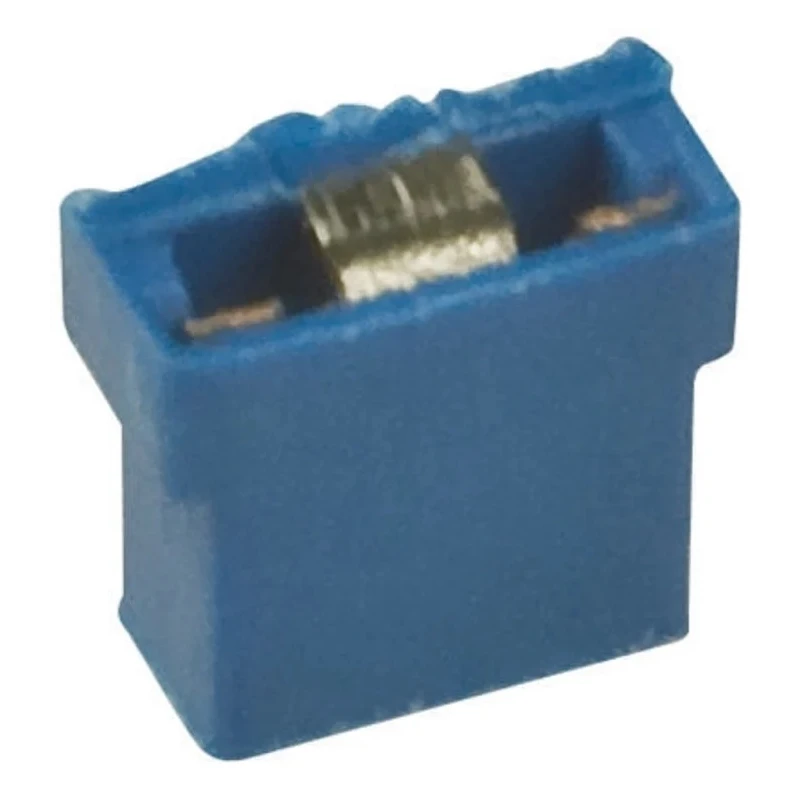

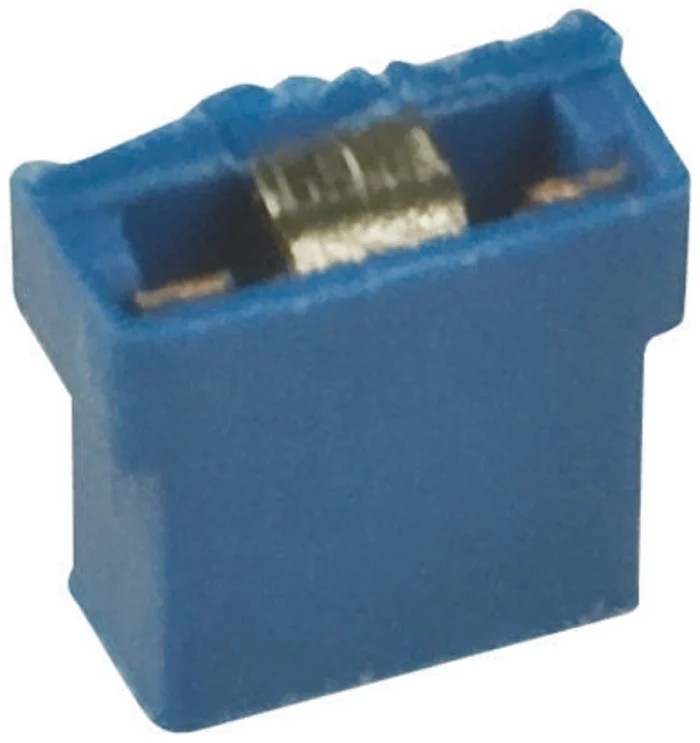

HARWIN Jumper Straight Female Blue Open Top 2 Way 1 Row 2 mm Pitch M22-1910005
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 250V |
| Brand | HARWIN |
| Colour | Blue |
| Orientation | Straight |
| Current | 2A |
| Length | 3.9mm |
| Model | M22-1910005 |
| Depth | 1.95mm |
| Width | 3.5mm |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Beryllium Copper Alloy |
| Series | M22-19 |
| Sub Type | Open Top |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 20mΩ |
| HARWIN, M22-19 Jumper Straight Female Red Open Top 2 Way 1 Row 2 mm PitchBrand | HARWIN |
Key Features
- The jumper features a blue polybutylene terephthalate housing for durability and insulation.
- It supports a maximum current rating of 2 amperes and voltage up to 250 volts.
- The contacts are made of beryllium copper alloy plated with gold for reliable connectivity.
- The connector is designed for a 1-row configuration, 3.9 mm in length and 3.5 mm in width.
- The maximum contact resistance is rated at 20 milliohms ensuring low signal loss.
- This jumper is suitable for test probe applications with an open top design.
- Manufactured in the United Kingdom with no certifications or approvals specified.
- Its compact dimensions make it ideal for electronic component assemblies requiring precise jumper links.
Product Description
HARWIN M22-1910005 is a 2-way jumper with a straight, female connector design and open top housing colored blue, ideal for PCB connector applications. This jumper features a 2 mm pitch with a single row layout, allowing stable and reliable connections in electronic circuits.
The housing is constructed of polybutylene terephthalate that offers high durability and insulation performance. The contacts employ a beryllium copper alloy with gold plating to ensure excellent electrical conductivity and resistance to corrosion.
Rated for 2 amperes of current and 250 volts, this jumper suits a variety of electronic and industrial applications such as power connectors, wiring harnesses, and test probes requiring easy access.
The jumper dimensions are compact, with a length of 3.9 mm, width of 3.5 mm, and depth of 1.95 mm, fitting tightly on standard PCBs. The maximum contact resistance is low at 20 milliohms, guaranteeing signal integrity.
Manufactured in the United Kingdom, this product adheres to no formal standards or approvals but is trusted in industrial and electronics manufacturing environments. The open top design facilitates easy access for testing and adjustment during circuit troubleshooting.
The jumper features a blue polybutylene terephthalate housing for durability and insulation. It supports a 2A current rating and 250V voltage rating for reliable operation. Gold-plated beryllium copper alloy contacts provide excellent conductivity and corrosion resistance.
Compact design with 3.9 mm length and 3.5 mm width fits standard PCB layouts. Low maximum contact resistance of 20 milliohms ensures minimal signal degradation. Open top style allows convenient testing and probe connection access.
Manufactured in the United Kingdom for quality and reliability assurance.
This jumper is suitable for electronic manufacturing, laboratory testing, industrial automation, and other applications requiring precise and reliable jumper links on PCBs. Explore related HARWIN jumpers and connectors for comprehensive electronic component solutions on EnvMart.
Explore more products in our Jumpers & Shunts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this jumper is 2 amperes.
It can handle a voltage of up to 250 volts.
The contacts are made of beryllium copper alloy and are plated with gold for reliable connectivity.
This jumper has a length of 3.9 mm, a width of 3.5 mm, and a depth of 1.95 mm.
The maximum contact resistance is rated at 20 milliohms.
It features a straight orientation and a 1-row configuration.
This jumper is suitable for electronic manufacturing, laboratory testing, and industrial automation applications.
The housing is constructed from polybutylene terephthalate, providing durability and insulation.
No certifications or approvals are specified for this jumper.
The pitch size of this jumper is 2 mm.
The jumper features a blue color for its housing.
This jumper is manufactured in the United Kingdom.
