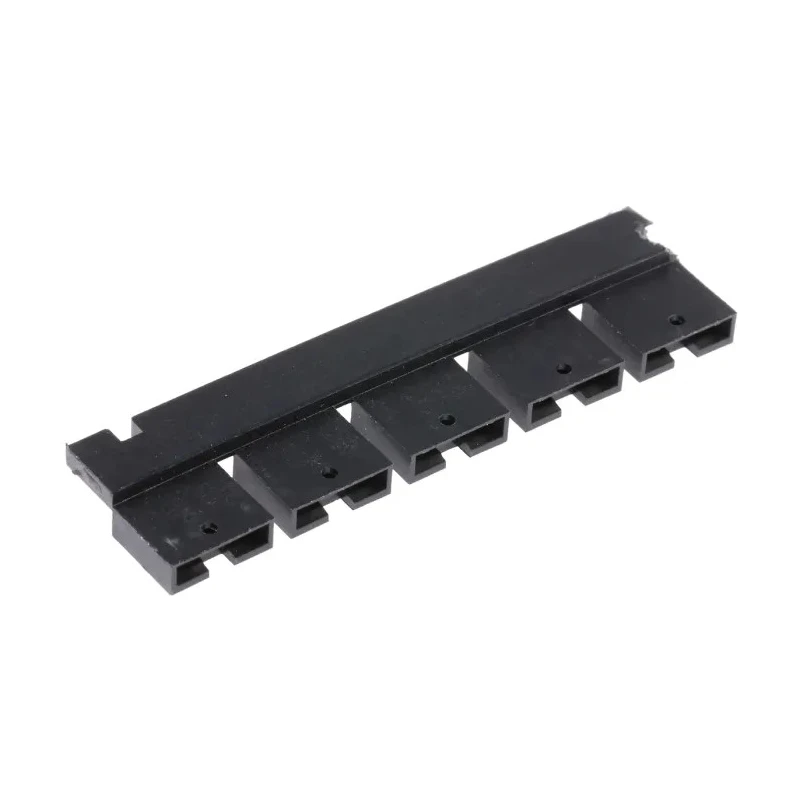

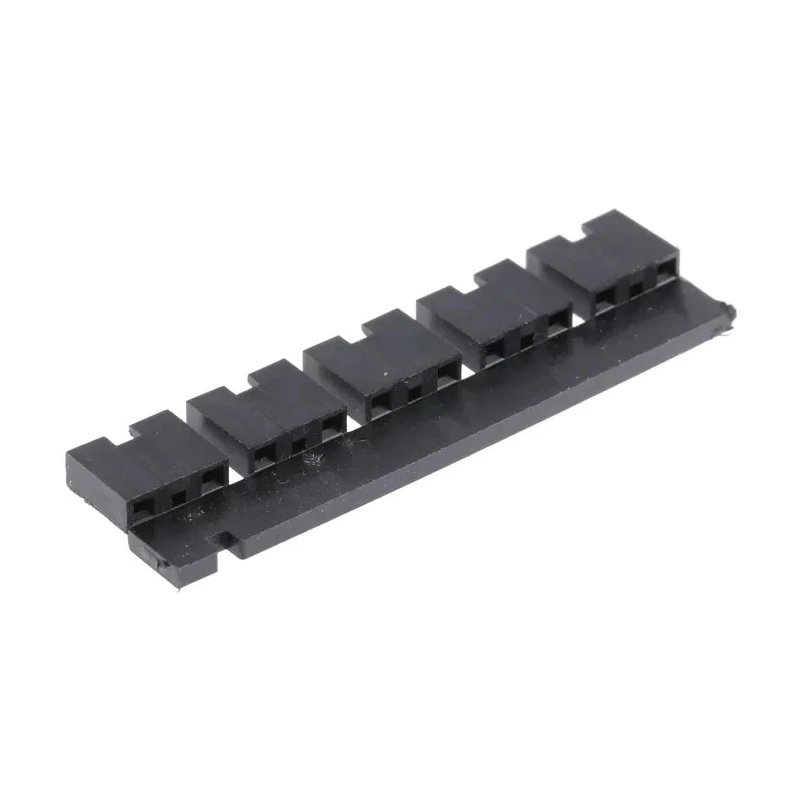

TE Connectivity AMPMODU Shunt Straight Female Open Top 2 Way 1 Row 5.08 mm Pitch 250V 3A 531230-4

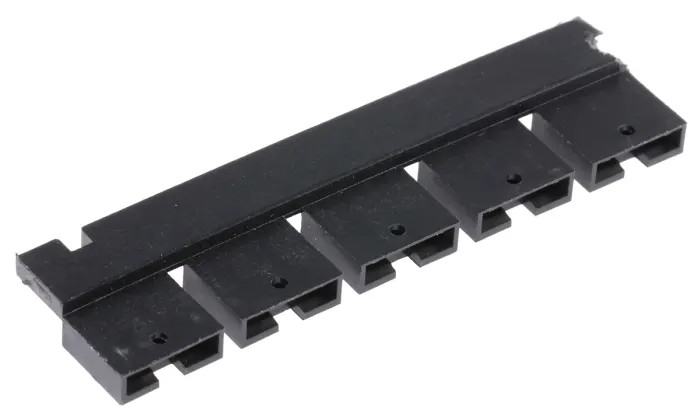

TE Connectivity 531230-4 AMPMODU Shunt Straight Female Open Top 2 Way 1 Row 5.08 mm Pitch is a precision electronic component designed for professional PCB jumper applications. This shunt features a robust black polyester housing rated at 94V-0 for flame retardance and enhanced mechanical strength. The housing is glass-filled and low profile, optimizing space on printed circuit boards.

The connector employs beryllium copper alloy contacts with tin over nickel plating to ensure corrosion resistance and consistent electrical conductivity. Its straight female configuration facilitates straightforward insertion and removal in PCB layouts with 5.08 mm pitch spacing between contacts arranged in a single row.

This component supports a voltage rating of 250 volts and a current rating of 3 amperes, making it suitable for a variety of electronic circuit jumper and shunt installations. The maximum contact resistance is engineered to remain below 15 milliohms, contributing to minimal signal loss and efficient electrical performance.

Its compact physical dimensions of 7.62 mm length, 2.54 mm width, and 6.35 mm depth facilitate integration in space-constrained environments. The open top design allows for easy stacking and enhances installation flexibility on the PCB. The product is ideal for industrial electronics, manufacturing, automation systems, and other applications requiring reliable jumper solutions.

Use cases include electronics assembly lines, prototyping, industrial automation devices, and power distribution modules. The rugged design combined with precise electrical ratings makes it well-suited for demanding electronic environments.

Low profile 94V-0 rated black polyester GF housing ensures durability and safety. Beryllium copper alloy contacts with tin over nickel plating offer long-lasting conductivity. Supports up to 250V voltage and 3A current for versatile electrical applications.

Two contacts in a single row with 5.08 mm pitch for standard PCB compatibility. Compact size enables space-efficient PCB layouts and stacking. Open top style housing provides ease of assembly and maintenance. Explore the Electronics & Electricals category at EnvMart for more high-quality connectors and shunt components to meet your industrial and manufacturing needs.
