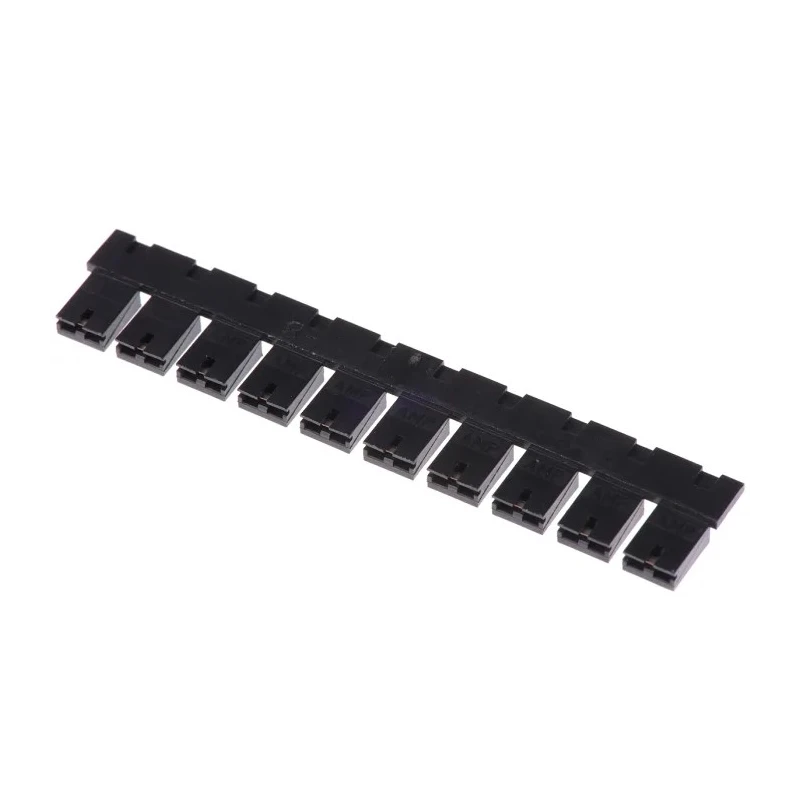

TE Connectivity AMPMODU Shunt Straight Female Black Open Top 2 Way 1 Row 2.54 mm Pitch 2-382811-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Colour | Black |
| Orientation | Straight |
| Current | 3A |
| Length | 5.08mm |
| Depth | 6.35mm |
| Width | 2.54mm |
| Housing Material | Polyester |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU |
| Sub Type | Open Top |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 15mΩ |
Key Features
- Constructed with black glass-filled polyester housing rated UL 94V-0 for flame retardance.
- Features phosphor bronze contacts with tin over nickel plating providing reliable conductivity.
- Supports up to 3A current and voltage rating of 250V.
- Compact low profile design with a height of 6.35mm and length of 5.08mm.
- Open top style allows easy insertion and configurable stacking for flexible circuit design.
- Maximum contact resistance is 15 milliohms ensuring minimal electrical loss.
- Connector orientation is straight to fit standard PCB layouts.
- Durable construction suitable for industrial and electronic component applications.
Product Description
TE Connectivity 2-382811-1 AMPMODU shunt is a precision-engineered electronic component designed for wire-to-board or board-to-board connections in industrial and commercial applications. This jumper features a straight female connector configuration with a black open top housing, making it ideal for flexible circuit assembly tasks.
The housing is made from UL 94V-0 rated black glass-filled polyester, providing excellent flame retardant properties and mechanical strength. The contact material is phosphor bronze with a tin over nickel plating, ensuring reliable conductivity and resistance to corrosion.
This low profile AMPMODU shunt has a pitch of 2.54 mm, with 2 contacts in a single row, supporting current up to 3 amperes and voltage up to 250 volts. Its compact dimensions of 5.08 mm in length, 2.54 mm width, and 6.35 mm depth allow for space-saving PCB designs while maintaining performance.
The open top design facilitates easy insertion and stacking of shunts, enabling configurable electrical pathways to fit diverse circuit design requirements. Maximum contact resistance is specified at 15 milliohms, which ensures efficient electrical transmission with minimal loss.
Common industrial applications include electronics manufacturing, automation systems, power supply assemblies, and other environments requiring robust and reliable PCB jumper solutions.
Constructed with black glass-filled polyester housing rated UL 94V-0 for flame retardance. Features phosphor bronze contacts with tin over nickel plating providing reliable conductivity. Supports up to 3A current and voltage rating of 250V.
Compact low profile design with a height of 6.35mm and length of 5.08mm. Open top style allows easy insertion and configurable stacking for flexible circuit design. Maximum contact resistance of 15 milliohms ensuring minimal electrical loss.
Connector orientation is straight to fit standard PCB layouts. Suitable for diverse industrial, manufacturing, and electronic applications. Explore the wide range of TE Connectivity AMPMODU shunts on EnvMart to find complementary connectors and accessories for your electronics projects and industrial needs.
Explore more products in our Jumpers & Shunts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a maximum current of 3A and a voltage rating of 250V.
The housing is made from black glass-filled polyester, while the contacts are phosphor bronze with tin over nickel plating.
It has a length of 5.08mm, a width of 2.54mm, and a depth of 6.35mm.
The connector orientation is straight, which fits standard PCB layouts.
The maximum contact resistance is specified at 15 milliohms.
The open top design allows for easy insertion and configurable stacking, facilitating flexible circuit assembly.
Common applications include electronics manufacturing, automation systems, and power supply assemblies.
The pitch of this model is 2.54mm.
Yes, it is suitable for various industrial and electronic component applications due to its durable construction.
It features a female connector gender.
The country of origin for this shunt is India.
This model has 2 contacts in a single row.
