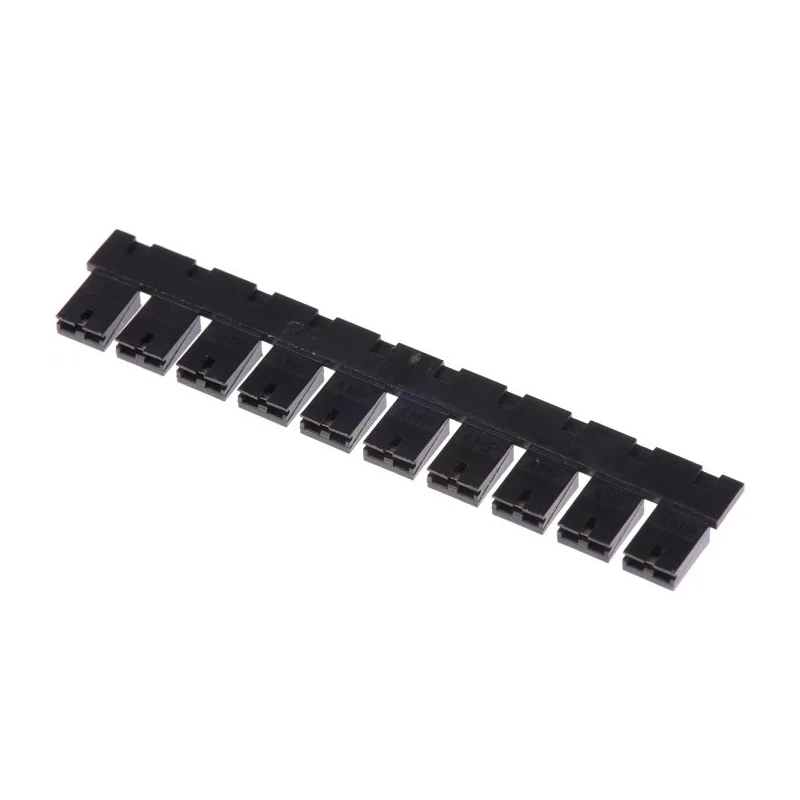

TE Connectivity AMPMODU Shunt Straight Female Open Top 2 Way 1 Row 2.54 mm Pitch 2-382811-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Colour | Black |
| Orientation | Straight |
| Current | 3A |
| Length | 5.08mm |
| Depth | 6.35mm |
| Width | 2.54mm |
| Housing Material | Polyester |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU |
| Sub Type | Open Top |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 15mΩ |
Key Features
- This shunt features a 2.54 mm pitch and is designed with 2 positions and one row.
- The housing is made from durable black UL 94V-0 rated glass-filled polyester.
- Fabricated with phosphor bronze contact material plated with tin over nickel for corrosion resistance.
- Supports a current rating of 3A and voltage rating up to 250V.
- The design offers straight orientation and open top sub-type for easy installation.
- The product exhibits a maximum contact resistance of 15 milliohms.
- Compact size dimensions include a length of 5.08 mm, width of 2.54 mm, and depth of 6.35 mm.
- Stackable one-piece contact construction optimizes modular assembly applications.
Product Description
TE Connectivity model 2-382811-1 is an AMPMODU Shunt Straight Female Open Top jumper featuring a 2-way and 1 row configuration with a 2.54 mm pitch. It is designed for electronic and electrical applications requiring reliable connectivity on printed circuit boards.
The jumper's housing is constructed from robust black glass-filled polyester rated UL 94V-0 for flame resistance and durability in industrial environments. Contacts are made from phosphor bronze and plated with tin over nickel, ensuring excellent electrical performance and corrosion protection.
With a current rating of 3A and voltage rating of 250V, this jumper is suitable for low-power interconnection tasks. The maximum contact resistance is tightly controlled at 15 milliohms to maintain signal integrity.
The straight orientation and open top design facilitate easy stacking and efficient assembly in modular connector systems. Compact dimensions of 5.08 mm length, 2.54 mm width, and 6.35 mm depth allow integration in space-constrained areas.
This jumper is part of the TE Connectivity AMPMODU series, widely used in industrial automation, electronic manufacturing, and telecommunications equipment. It is also ideal for wire to board or board to board connections in laboratory, construction, HVAC, and commercial applications.
This shunt features a 2.54 mm pitch and is designed with 2 positions and one row. The housing is made from durable black UL 94V-0 rated glass-filled polyester. Fabricated with phosphor bronze contact material plated with tin over nickel for corrosion resistance.
Supports a current rating of 3A and voltage rating up to 250V. The design offers straight orientation and open top sub-type for easy installation. The product exhibits a maximum contact resistance of 15 milliohms. Compact size dimensions include a length of 5.08 mm, width of 2.54 mm, and depth of 6.35 mm.
Stackable one-piece contact construction optimizes modular assembly applications. Explore the TE Connectivity AMPMODU Jumpers & Shunts category on EnvMart for comprehensive solutions in electronic connector components.
Explore more products in our Jumpers & Shunts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this shunt is up to 250V.
This model supports a current rating of 3A.
The dimensions of this shunt are 5.08 mm in length, 2.54 mm in width, and 6.35 mm in depth.
The housing is made from black UL 94V-0 rated glass-filled polyester, while the contacts are fabricated from phosphor bronze plated with tin over nickel.
The maximum contact resistance is 15 milliohms.
This shunt has a female connector gender.
The design features a straight orientation with an open top sub-type for easy installation.
This shunt is designed with 2 contacts.
The country of origin for this shunt is India.
This shunt is part of the AMPMODU series by TE Connectivity.
It is suitable for low-power interconnection tasks in electronic and electrical applications, including industrial automation and telecommunications equipment.
The pitch size of this shunt is 2.54 mm.
