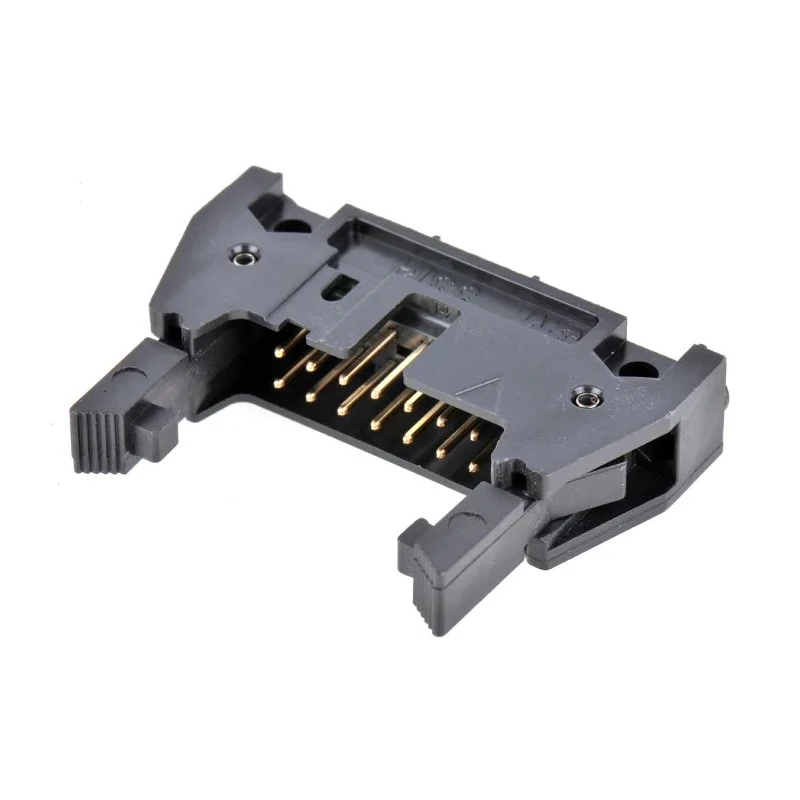

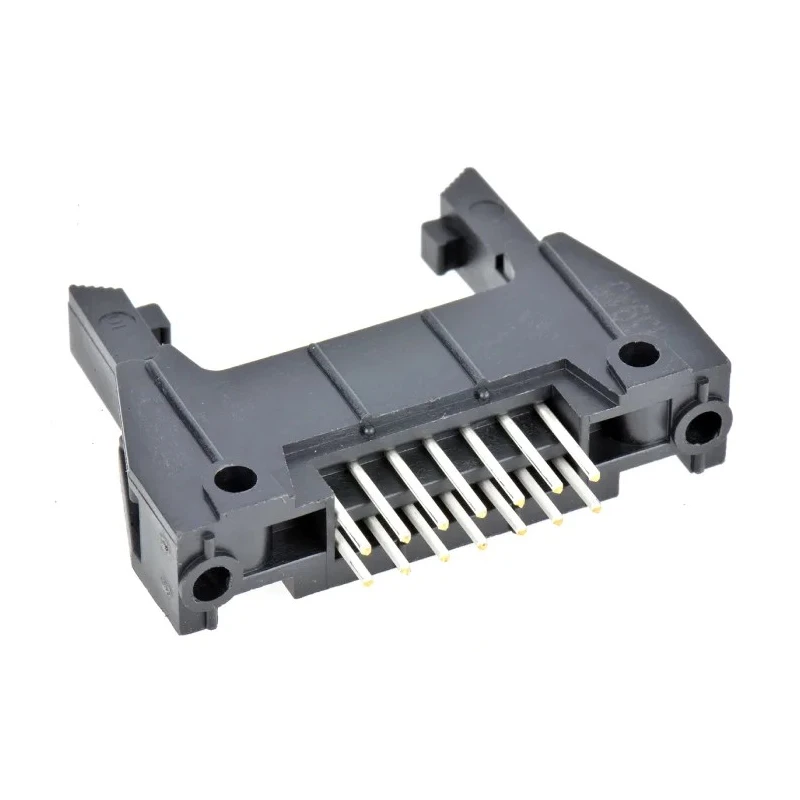

3M 3000 Series Straight Through Hole PCB Header, 14 Contacts, 2.54 mm Pitch, 2 Row, Shrouded N3314-6302RB

Free Delivery in India | Lowest Global Shipping Charges

3M 3000 Series Straight Through Hole PCB Header, 14 Contacts, 2.54 mm Pitch, 2 Row, Shrouded N3314-6302RB



Category PCB Header Brand 3M Condition New

Specifications

Country of Origin	India
Voltage	25V
Brand	3M
Orientation	Straight
Current	1A
Model	N3314-6302RB
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	3000
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	14
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	0.01in
Mating Pin Length	6.2mm
RS PRO 14-Way IDC Connector Plug Through Hole Mount, 2-RowBrand	RS PRO
HE10 PCB IDC str boxed header long 14WBrand	3M

Key Features

This PCB header supports a current rating of 1 ampere for reliable performance.
It uses copper alloy contacts plated with gold to ensure excellent conductivity and corrosion resistance.
The termination type is solder with a tail pin length of 0.01 inch and mating pin length of 6.2 mm.
The component is designed for through hole mount and oriented straight for standard PCB installation.
The housing material is high temperature PCT thermoplastic, suitable for lead-free soldering up to 260°C.
It operates within a temperature range of -55°C to 105°C ensuring durability in harsh environments.
This connector system allows board-to-board and wire-to-board connections with robust ejector latch options to prevent accidental disconnection.
Polarization features include BC polarization notches and military polarization capability using optional polarizing keys.

Product Description

3M N3314-6302RB 3000 Series Straight Through Hole PCB Header, featuring 14 contacts arranged in 2 rows on a 2.54 mm pitch, provides reliable electronic interconnection solutions suitable for industrial and commercial electronics assembly.

This shrouded header design protects contacts from mechanical damage and contamination, enhancing connection integrity over time. The PCB header supports board-to-board and wire-to-board applications, with gold-plated copper alloy contacts offering excellent electrical conductivity and resistance to corrosion.

Constructed from high temperature PCT thermoplastic, the header tolerates lead-free soldering processes up to 260°C (JEDEC J-STD-020C), making it ideal for modern manufacturing standards. Operating temperature range from -55°C to 105°C ensures functionality in demanding thermal environments.

The component features robust long roll pin style ejector latches which provide secure mating and facilitate easy disconnection in maintenance or replacement scenarios. The ejection latch design mitigates damage risk during usage in high vibration conditions.

BC polarization notches and extra polarization slots assist with quick and accurate board alignment, reducing assembly errors. Military polarization can be achieved using a separate 3M polarizing key (part number N3518), increasing application versatility.

Typical applications include industrial instrumentation, medical devices, communications equipment, and consumer electronics requiring durable and precise PCB connectivity. This PCB Header is designed for through-hole mounting and straight orientation.

Wide industrial applicability from instrumentation to communications equipment. High temperature housing compatible with lead-free manufacturing. Robust ejector latch system for secure connection and maintenance ease. Polarization features minimize misalignment risks during assembly.

Explore more 3M electronic components and PCB connectors within EnvMart for high-performance industrial-grade solutions designed to meet modern manufacturing demands.
