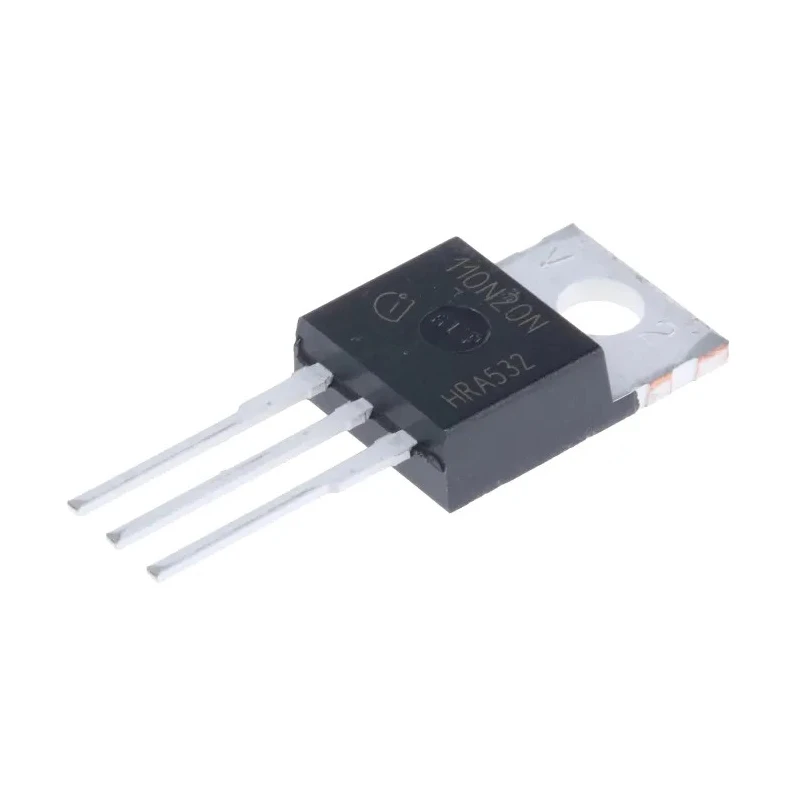

Infineon OptiMOS 3 N-Channel MOSFET, 88 A, 200 V, Enhancement Mode, 3-Pin TO-220 IPP110N20N3GXKSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 9.45mm |
| Length | 10.36mm |
| Model | IPP110N20N3GXKSA1 |
| Width | 4.57mm |
| Mount Type | Through Hole |
| Series | OptiMOS 3 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 88A |
| Maximum Drain Source Voltage Vds | 200V |
| Maximum Drain Source Resistance Rds | 11mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 300W |
| Typical Gate Charge Qg @ Vgs | 65nC |
| Maximum Gate Source Voltage Vgs | -20, +20V |
| Forward Voltage Vf | 1.2V |
Key Features
- Optimized for power efficiency using OptiMOS 3 technology.
- Enhancement mode channel type for high switching performance.
- Supports continuous drain current of up to 88 A.
- Maximum drain-source voltage of 200 volts for robust operation.
- Low drain-source resistance at 11 milliohms minimizes power loss.
- Maximum power dissipation capability of 300 watts.
- Operates safely within a temperature range from -55°C to 175°C.
- Typical gate charge of 65 nC at 6.5 V gate-source voltage.
Product Description
Infineon IPP110N20N3GXKSA1 is a high-performance OptiMOS 3 N-Channel MOSFET designed for power electronics applications requiring efficient switching and high current handling capability. It supports a continuous drain current of 88 A and a maximum drain-source voltage of 200 V, making it suitable for robust industrial and automotive electronic systems.
This device is packaged in a 3-pin TO-220 form factor optimized for through-hole mounting, providing reliable mechanical and thermal stability. The enhancement mode channel type allows for improved switching performance, and the low maximum drain-source resistance of 11 milliohms reduces conduction losses.
The MOSFET is rated for maximum power dissipation of 300 W and can operate safely over a wide temperature range from -55°C minimum up to 175°C maximum, ensuring durability under demanding conditions.
With a typical gate charge of 65 nC at a gate-source voltage of 6.5 V, the MOSFET offers fast switching suitable for power supply designs, motor drives, and general-purpose switching. Its maximum gate-source voltage tolerance is ±20 V, further supporting robust gate control.
Compact package dimensions of 10.36 mm length, 9.45 mm height, and 4.57 mm width facilitate integration in constrained spaces. This device does not possess automotive certification but conforms to industrial performance standards.
Optimized power density and efficiency with OptiMOS 3 technology. Application in industrial power supplies, motor control, and consumer electronics. Robust performance at elevated temperatures for reliable operation. Reliable through-hole mounting with TO-220 package.
Low power loss due to minimal Rds(on).
Infineon OptiMOS 3 MOSFETs are widely used in industrial and commercial electronics for enhanced switching efficiency and power handling. This product is categorized under MOSFETs suitable for semiconductor discrete device applications.
Explore additional Infineon semiconductor devices and other MOSFET products in the EnvMart catalog to find optimal solutions for your power and switching needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for the IPP110N20N3GXKSA1 is 88 A.
This model has a maximum drain-source voltage rating of 200 V.
The typical gate charge for this MOSFET at a gate-source voltage of 6.5 V is 65 nC.
The maximum power dissipation capability of the IPP110N20N3GXKSA1 is 300 W.
The dimensions of the TO-220 package are 10.36 mm in length, 9.45 mm in height, and 4.57 mm in width.
The maximum drain-source resistance (Rds) for this model is 11 milliohms.
It operates safely within a temperature range from -55°C to 175°C.
This MOSFET supports through-hole mounting due to its TO-220 package type.
The IPP110N20N3GXKSA1 features an N-channel type.
The maximum gate-source voltage tolerance for this model is ±20 V.
This model is suitable for applications in industrial power supplies, motor control, and consumer electronics.
The IPP110N20N3GXKSA1 belongs to the OptiMOS 3 series.
