Phoenix Contact SDC 2.5/ 4-PV-5.0-ZB Series Straight PCB Terminal Block, 4 Contacts, 5 mm Pitch, 320V, 12A 1864053

Free Delivery in India | Lowest Global Shipping Charges

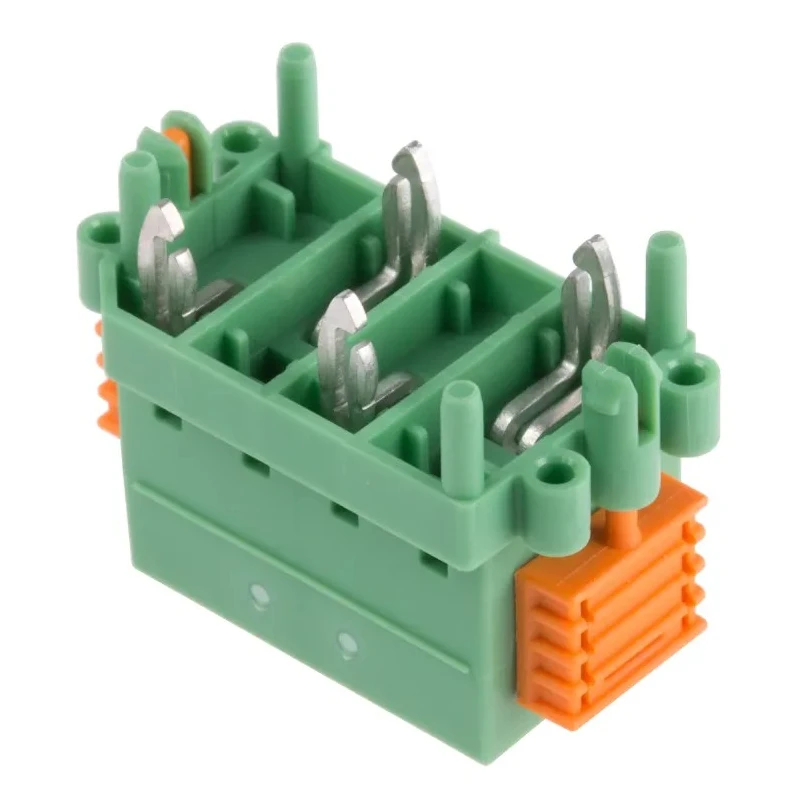

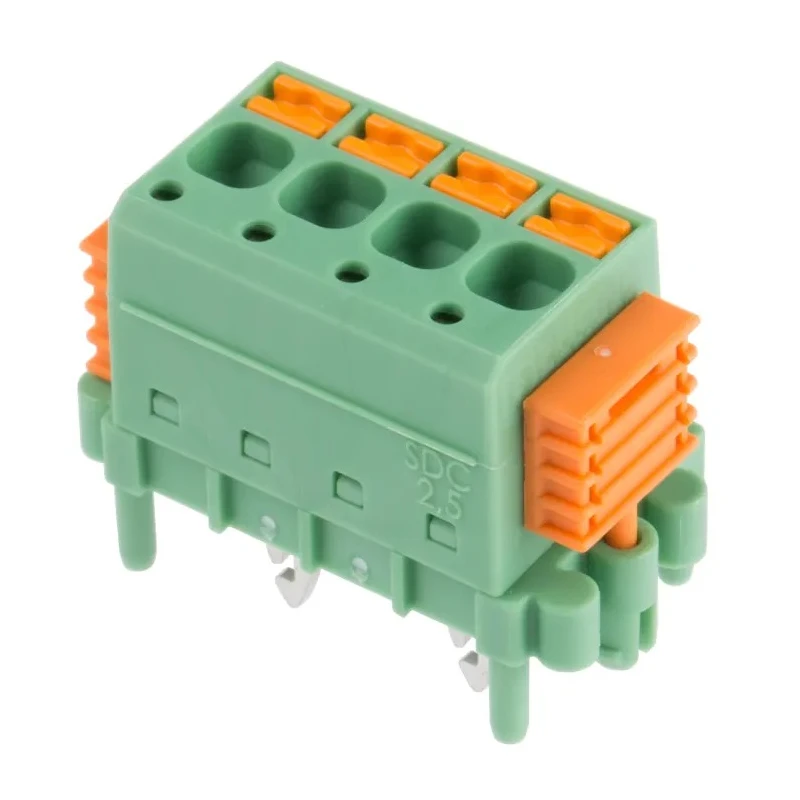

Phoenix Contact SDC 2.5/ 4-PV-5.0-ZB Series Straight PCB Terminal Block, 4 Contacts, 5 mm Pitch, 320V, 12A 1864053

Name: Phoenix Contact SDC 2.5/ 4-PV-5.0-ZB Series Straight PCB Terminal Block, 4 Contacts, 5 mm Pitch, 320V, 12A 1864053
Brand: PHOENIX CONTACT
SKU: 184869



Category PCB Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	India
Voltage	320V
Brand	Phoenix Contact
Orientation	Straight
Current	12A
Model	1864053
Housing Material	Polyamide
Series	SDC 2.5/ 4-PV-5.0-ZB
Number of Rows	1
Pitch	5mm
Standards/Approvals	cULus Recognised, EU RoHS, UL Recognised
Number of Contacts	4

Key Features

Designed with SKEDD push-in spring technology for easy PCB mounting without soldering or special machinery.
Features a locking mechanism for secure, vibration-resistant connection on the PCB.
Polyamide housing material ensures durability and electrical insulation.
Suitable for harsh industrial environments with reliable connection performance.
Compact single-row, straight orientation design saves PCB space in applications.
Ideal for use in automotive, industrial electronics, control cabinets, and power tools.
Complies with cULus Recognised, EU RoHS, and UL standards.

Product Description

Phoenix Contact 1864053 SDC 2.5/ 4-PV-5.0-ZB Series Straight PCB Terminal Block features a 5 mm pitch and 4 contact points arranged in a single row. Rated for 320V and a nominal current capacity of 12A, this terminal block is designed with SKEDD technology that employs push-in spring contacts eliminating the need for soldering or press fit installation.

This innovative design allows cables and wires to be plugged directly into the PCB, saving assembly time and reducing component count while maintaining a secure electrical connection through a locking mechanism that resists vibration. The housing is made of polyamide, offering excellent durability and electrical insulation required in demanding industrial and commercial environments.

These PCB terminal blocks are suited for applications in automotive systems, industrial electronics, consumer electronics, machine construction, control cabinets, power tools, white goods, solar power industry, and medical devices. The single-row and straight orientation make them ideal for compact PCB layouts where space and reliability are critical.

The blocks comply with industry standards such as cULus Recognised, EU RoHS, and UL Recognised, ensuring quality and safety compliance for professional industrial use. Push-in spring contact technology removes the need for soldering or special fitting tools.

Locking mechanism secures the terminal block firmly to the PCB for vibration resistance. Polyamide housing delivers durability suitable for harsh operating environments. Compact design with 5 mm pitch and single row for space-efficient PCB layouts.

Rated for 320V voltage and 12A current for robust electrical performance. Applications include automotive, industrial electronics, machinery, solar power, and medical systems. RoHS compliant and certified by cULus and UL for safety assurance.

Choose Phoenix Contact PCB Terminal Blocks from EnvMart for reliable, easy-to-install, and durable PCB connectivity solutions.
