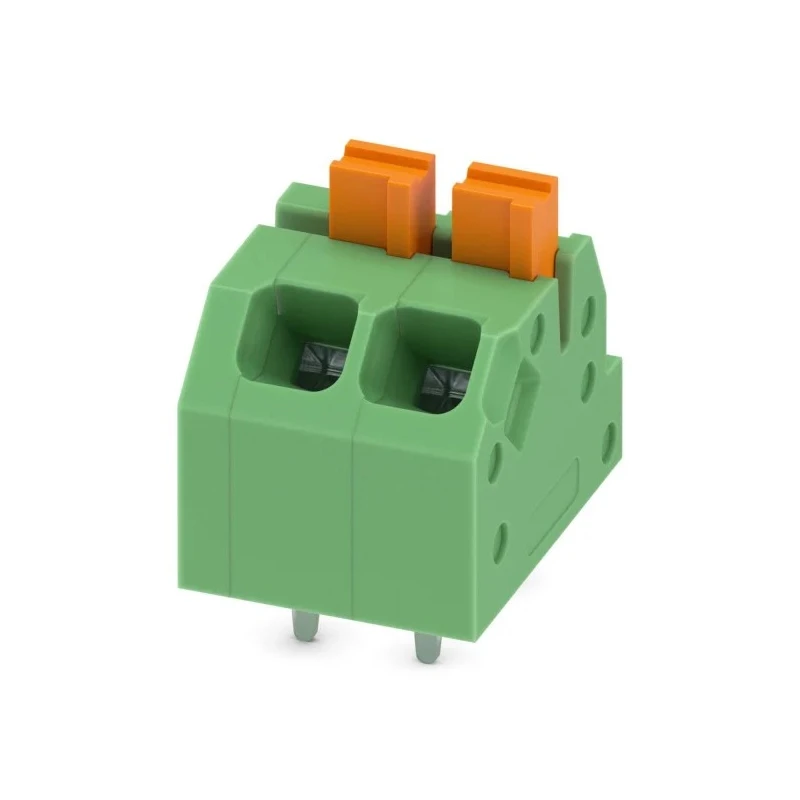

Phoenix Contact SPTAF 1/2-3.5-EL Series Angled Wave Soldering Mount PCB Terminal Block, 2 Contacts, 3.5 mm Pitch 1862042

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact SPTAF 1/2-3.5-EL Series Angled Wave Soldering Mount PCB Terminal Block, 2 Contacts, 3.5 mm Pitch 1862042

Name: Phoenix Contact SPTAF 1/2-3.5-EL Series Angled Wave Soldering Mount PCB Terminal Block, 2 Contacts, 3.5 mm Pitch 1862042
Brand: PHOENIX CONTACT
SKU: 80885
Price: 1.03 USD
Availability: InStock



Category PCB Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Poland
Voltage	160V
Brand	Phoenix Contact
Colour	Green
Orientation	Angled
Current	16A
Model	1862042
Mount Type	Wave Soldering Mount
Housing Material	Polyamide
Series	SPTAF 1/ 2-3.5-EL
Number of Rows	2
Connection Method	Push-in spring connection
Pitch	3.5mm
Standards/Approvals	EU RoHS, cULus Recognised
Number of Contacts	2
PCB Terminal block, nominal current	16 A, nom. voltage: 160 V, pitch: 3.5 mm, number of positions: 2, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green

Key Features

Angled wave soldering mount design enables efficient PCB integration.
Supports two contacts with a 3.5 mm pitch for compact circuit layouts.
Rated for 16A current and 160V voltage, suitable for demanding electronic applications.
Push-in spring connection technology allows quick, tool-free installation.
Constructed from durable polyamide for optimal insulation properties.
Integrated finger-operated release button delivers convenient operation.
Compact physical footprint is ideal for space-limited PCB assemblies.
Complies with EU RoHS and cULus safety standards.

Product Description

Phoenix Contact SPTAF 1/2-3.5-EL Series Angled Wave Soldering Mount PCB Terminal Block, model 1862042, is engineered for high performance in modern PCB assemblies. The terminal block features an angled orientation, supporting wave soldering mount installation for secure and reliable board connections. With two contact positions at a precise 3.5 mm pitch, the block is optimized for space efficiency and circuit flexibility.

This component is rated for 16A nominal current and 160V nominal voltage, meeting the requirements for robust power and signal distribution in electronic devices, control panels, and industrial automation systems. Polyamide housing material provides excellent insulation and mechanical strength, enhancing safety and durability even in demanding environments.

The SPTAF 1/2-3.5-EL utilizes a push-in spring connection method, allowing installers to achieve fast and stable wiring without the need for specialized tools. Finger-operated release mechanisms contribute to ease of maintenance and reconfiguration. An integrated test option supports quick circuit verification during installation and servicing.

Its small form factor makes the terminal block particularly suitable for PCBs where space utilization and compact layouts are critical. The product adheres to EU RoHS directives and is cULus recognized, ensuring compliance with stringent safety and environmental standards.

Angled wave soldering mount facilitates secure PCB attachment. 2 contacts, 3.5 mm pitch, rated for 16A/160V. Push-in spring connection, tool-free and efficient. Polyamide housing for exceptional dielectric performance. Finger-operated release button enables accessible operation.

Integrated test feature simplifies circuit diagnostics. Space-saving design for high-density PCB applications. Compliance with EU RoHS and cULus regulations.

Typical uses include electronic circuit boards, power distribution, control interfaces, and instrumentation assemblies in electronics manufacturing, automation, and laboratory environments. Explore more PCB Terminal Blocks from Phoenix Contact and related categories in EnvMart for tailored electronic solutions.
