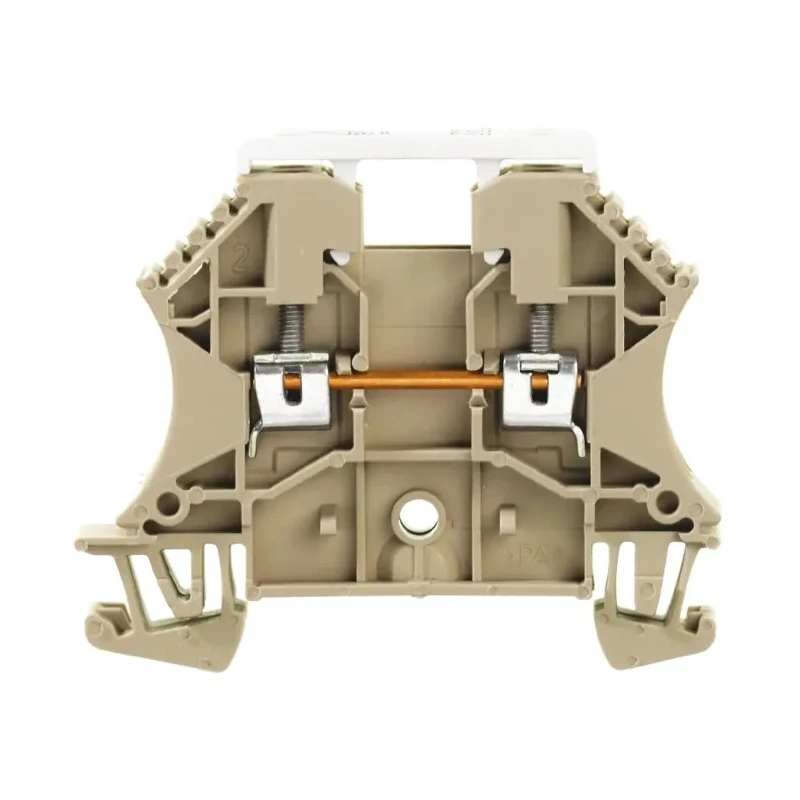

Weidmüller Thermoelectric Voltage Terminal Block 2.5mm² 1-Level Screw Connection W Series 1041500000
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 55V |
| Brand | Weidmüller |
| Colour | Dark Beige |
| Series | W |
| Termination Type | Screw |
| Maximum Operating Temperature | 120°C |
| Number of Levels | 1 |
| Minimum Operating Temperature | -50°C |
| Pitch | 10.2mm |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 2.5mm² |
| Terminal Block Current | 1A |
Key Features
- Constructed from nylon 6.6, rated for continuous operation at 120°C and short-term 180°C.
- Features screw termination type and screw clamp technology for secure connections.
- Compatible with 1-level installation on Top Hat DIN rails with 10.2mm pitch.
- Supports voltages up to 55V and current up to 1A for thermoelectric signals.
- Dark beige color for easy identification and compatibility with W Series modular thermocouple terminals.
- Provides mechanical strength with hardened steel and optimal conductivity with tinned copper contacts.
- Free from cadmium and halogen and complies with RoHS environmental regulations.
- Touch-proof design in accordance with BS 3042 standards.
Product Description
Weidmüller 1041500000 W Series thermoelectric voltage terminal block is engineered for precise and safe connection of thermocouple wires in industrial and laboratory environments. It features a 2.5mm² cable cross-section compatibility, suitable for various thermocouple types including K, T, J, SR, B, E, and NH. The terminal block supports voltage ratings up to 55V and current capacity of 1A, allowing reliable signal transmission for temperature measurement and monitoring.
The terminal housing is made from durable nylon 6.6 material, providing continuous temperature resistance up to 120°C and short-term exposure up to 180°C. The screw termination ensures secure wire connections and easy installation on 'Top Hat' DIN rails with a 10.2mm pitch. The block is produced with high-quality tinned copper contacts and hardened steel for mechanical strength and optimal conductivity.
This W Series terminal block is dark beige in color for compatibility with related modular thermocouple terminals and designed to comply with environmental guidelines including RoHS. The product ensures safe, touch-proof connections conforming to BS 3042, enhancing both operator safety and system reliability.
Ideal for industrial automation, electrical panel building, instrumentation, HVAC control, and process monitoring applications. Its robust construction supports harsh environments and extended operational life.
Constructed from nylon 6.6 with UL94V-0 self-extinguishing rating for fire safety. Screw clamp connection technology provides reliable and maintenance-friendly wiring. Suitable for direct mounting on symmetric 'Top Hat' DIN rail per BS5584:1978 and EN 50022 standards.
Compliant with RoHS and free from halogen and cadmium hazardous substances. Compatible with multiple thermocouple types for versatile use. Compact 1-level design simplifies wiring density in terminal panels. Explore Weidmüller's comprehensive range of DIN Rail Terminal Blocks and accessories on EnvMart for industrial and electrical engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this terminal block is 55V.
This model has a current capacity of 1A.
It is compatible with wire sizes ranging from 26 AWG to 12 AWG, with a cable cross-section area of 2.5mm².
The terminal block operates within a temperature range of -50°C to 120°C for continuous use, and can withstand short-term exposure up to 180°C.
This model features a screw termination type, which ensures secure wire connections.
It is designed for a pitch size of 10.2mm, suitable for installation on Top Hat DIN rails.
The terminal block is constructed from nylon 6.6 and features tinned copper contacts for optimal conductivity.
Yes, it complies with RoHS environmental regulations and is free from cadmium and halogen.
The terminal block is dark beige in color, which aids in easy identification and compatibility with W Series modular thermocouple terminals.
This model features a 1-level design, which simplifies wiring density in terminal panels.
It is designed to be touch-proof in accordance with BS 3042 standards, enhancing operator safety.
It is compatible with various thermocouple types including K, T, J, SR, B, E, and NH.
