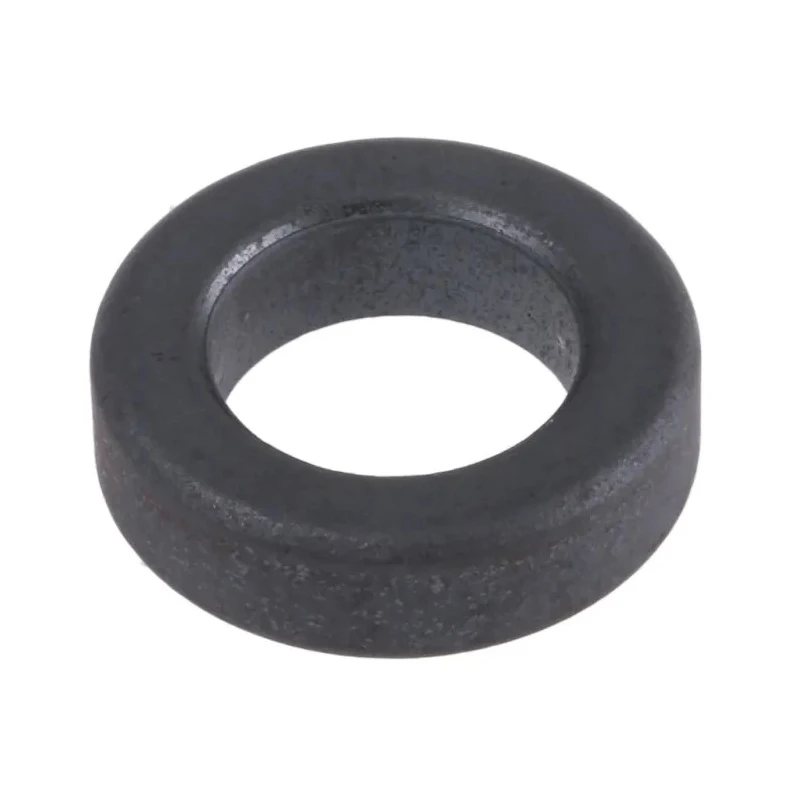

Fair-Rite Ferrite Ring Toroid Core 4.75 mm Height for Pulse, Power Input Filter, Ground Fault Interrupter 5943005101

Fair-Rite 5943005101 Ferrite Ring Toroid Core with a height of 4.75 mm is engineered for demanding electronic applications including pulse transformers, power input filters, ground fault interrupters, and broadband transformers. This ferrite ring core utilizes a combination of high, medium, and low permeability materials such as 75 (Ui=5000), 76 (Ui=10000), 67 (Ui=40), 61 (Ui=125), 43 (Ui=800), 77 (Ui=2000), 78 (Ui=2300), and 85 materials to precisely match diverse performance requirements.

The toroidal core’s ring shape optimizes the ferrite’s magnetic properties, improving common mode noise suppression and enhancing immunity in signal conditioning tasks. The cores are burnished post-manufacture to eliminate sharp edges, promoting safe handling. AL values have been verified by measurements at 10 kHz to maintain consistency with design parameters.

This ferrite ring is highly suitable for industrial, manufacturing, and electronic repair applications requiring reliable EMI suppression and noise filtering, enhancing signal integrity and protecting sensitive components.

Constructed from multiple ferrite composition grades for tailored electromagnetic performance. Ring configuration maximizes material efficiency and magnetic flux distribution. Burnished surfaces facilitate easy and safe handling.

Tested AL values ensure predictable inductance properties at the specified minimum frequency. RoHS compliant to meet global environmental and safety standards.

This product is a capable solution for electronic assemblies demanding effective EMI filtering, pulse transformer cores, and broadband applications commonly found in advanced electronic circuits, industrial power systems, and fault interrupters.
