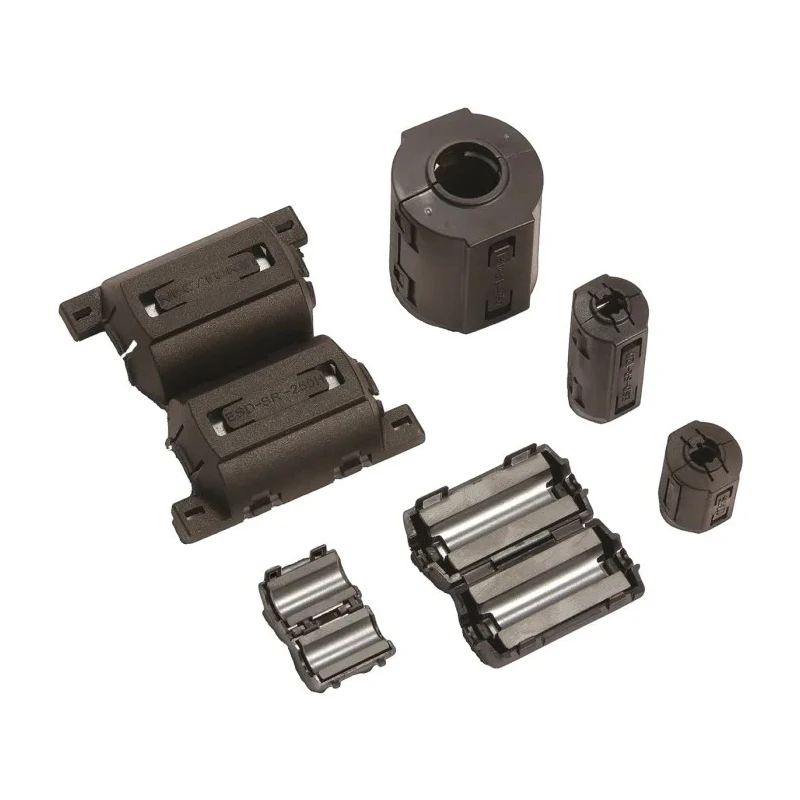

KEMET Openable Diameter 6 mm Ferrite Ring Snap-On Core for Consumer Electronics ESD-SR-100
Specifications
| Country of Origin | India |
|---|---|
| Brand | KEMET |
| Material | Ferrite |
| Model | ESD-SR-100 |
| Series | ESD-SR Snap-on Cores |
| Aperture diameter | 6mm |
| Sub Type | Snap Ferrite |
| External Width | 16.5mm |
| External Depth | 21mm |
| External Height | 16.5mm |
| Standards/Approvals | RoHS |
| Impedance at 100 MHz | 80Ω |
| Impedance at 25 MHz | 30Ω |
| Number of Apertures | 1 |
| Temperature Index | 65°C |
| Flame Class | UL94V-0 |
| Comparative Tracking Index | Rank 0 |
| KEMET Openable, Diameter 6 mm Ferrite Ring, Apertures | 1 33 mm 16.4 mm 16 mm, For Consumer ElectronicsBrand: KEMET |
| KEMET Ferrite Core ClipBrand | KEMET |
Key Features
- Constructed from ferrite material ensuring effective EMI suppression.
- Openable snap-on design facilitates easy installation on round cables.
- Diameter of 6 mm aperture tailored for round cable use.
- Impedance of 30Ω at 25 MHz and 80Ω at 100 MHz for broad frequency range filtering.
- Compliant with RoHS standards and UL94V-0 flame class for safety.
- Temperature index rated at 65°C supporting reliable operation under elevated conditions.
Product Description
KEMET ESD-SR-100 openable ferrite ring snap-on core is engineered for EMI filtering in consumer electronic devices and round cable applications. The ferrite core material provides effective suppression of electromagnetic interference, enhancing device performance and signal integrity.
The snap-on, split construction allows convenient attachment to cables without disassembly, promoting ease of maintenance and installation in industrial and commercial settings. With an aperture diameter of 6 mm, it fits a variety of round cables, ensuring versatile usage.
Designed to meet high safety and quality standards, this component complies with RoHS regulations and features a UL94V-0 flame retardant rating. Its temperature tolerance up to 65°C ensures dependable operation under typical consumer electronic environmental conditions.
The core exhibits an impedance of 30 ohms at 25 MHz and 80 ohms at 100 MHz, providing effective noise reduction over a critical frequency range. Its compact dimensions (21 mm depth, 16.5 mm width, 16.5 mm height) make it suitable for space-constrained installations.
This snap Ferrite Ring is ideal for use in industrial manufacturing of consumer electronics, telecommunications, and power supply devices where EMI suppression is critical. It facilitates compliance with electromagnetic compatibility requirements and reduces signal disturbances.
Constructed from ferrite material ensuring effective EMI suppression. Openable snap-on design facilitates easy installation on round cables. Diameter of 6 mm aperture tailored for round cable use. Impedance of 30Ω at 25 MHz and 80Ω at 100 MHz for broad frequency range filtering.
Compliant with RoHS standards and UL94V-0 flame class for safety. Temperature index rated at 65°C supporting reliable operation under elevated conditions. Compact outer dimensions: 21 mm depth, 16.5 mm width, and 16.5 mm height.
Explore the Electronics Components category at EnvMart for an extensive range of KEMET ferrite cores and EMI filters designed for various industrial and consumer electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ferrite ring has an impedance of 30Ω at 25 MHz and 80Ω at 100 MHz, providing effective noise reduction across a broad frequency range.
This model features an aperture diameter of 6 mm, making it suitable for various round cables.
The external dimensions of the core are 16.5 mm in width, 21 mm in depth, and 16.5 mm in height.
The core is constructed from ferrite material, which ensures effective suppression of electromagnetic interference.
It is rated for a temperature index of 65°C, supporting reliable operation under elevated conditions.
Yes, it complies with RoHS standards and has a UL94V-0 flame class rating for safety.
The openable snap-on design allows for easy installation on round cables without the need for disassembly, facilitating maintenance.
This ferrite ring is ideal for use in consumer electronics, telecommunications, and power supply devices where EMI suppression is critical.
The KEMET ESD-SR-100 is manufactured in India.
This model features one aperture for cable attachment.
It belongs to the ESD-SR Snap-on Cores series by KEMET.
The comparative tracking index of this ferrite ring is ranked at 0, indicating its suitability for various applications.
