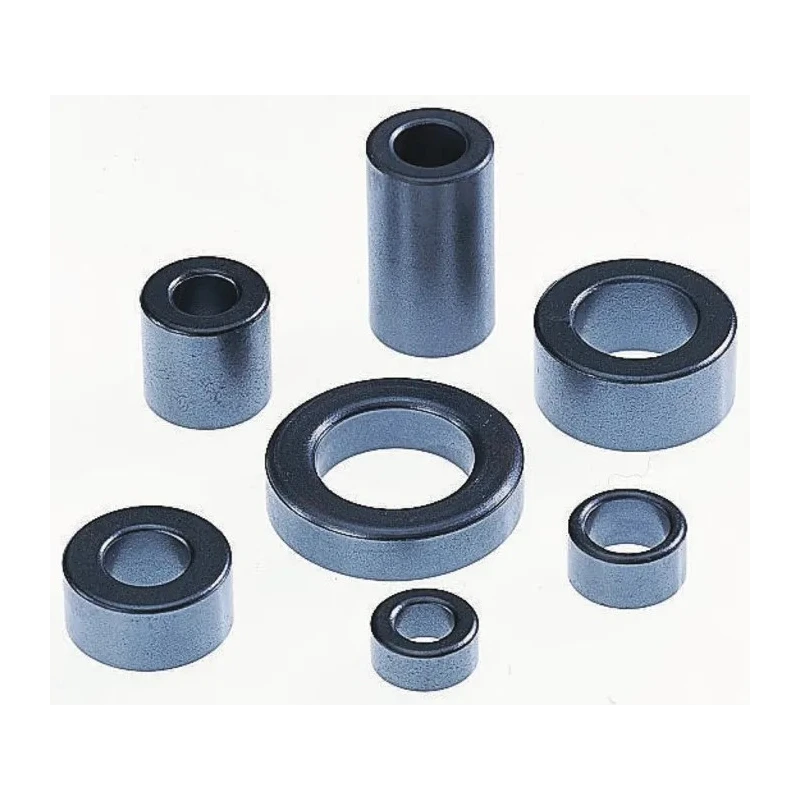

Essentra Ferrite Ring Toroid Core 6.4 mm Height, 13.5 mm Inside Diameter, 22 mm Outside Diameter RT220-135-064
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Essentra |
| Material | Ferrite |
| Height | 6.4mm |
| Model | RT220-135-064 |
| Series | RT |
| Outside diameter | 22mm |
| Sub Type | Toroid Core |
| Inside Diameter | 13.5mm |
| Maximum Frequency | 100MHz |
| Minimum Frequency | 25MHz |
| Essentra Ferrite Ring Toroid Core 6.4 mm, For | Filtering 13.5 mm ID 22 mm OD |
| Fair-Rite Ferrite Ring Toroid Core 6.35 mm 13.2 mm ID 21 mm ODBrand | Fair-Rite |
Key Features
- Constructed from high-quality ferrite material for effective EMI suppression.
- Supports a minimum frequency of 25MHz and a maximum frequency of 100MHz for versatile filtering.
- Part of the RT series, ensuring consistent performance and quality.
- Suitable for common mode interference filtering and power signal insertion losses.
- Ideal for use with one or more coils including wires, coaxial cables, twisted pairs, and multi-core cables.
- Manufactured in Taiwan, Province Of China, guaranteeing reliable origin standards.
Product Description
Essentra RT220-135-064 Ferrite Ring Toroid Core is a precision-engineered component designed for EMI filtering in electronic assemblies. Measuring 6.4 mm in height with a 13.5 mm inside diameter and a 22 mm outside diameter, this toroidal core is constructed from high-grade ferrite material to provide effective noise suppression in a broad frequency range from 25MHz to 100MHz.
This core belongs to the RT series, which is recognized for delivering consistent performance in common-mode interference filtering applications. It is ideal for use in filtering common-mode noise and managing power signal insertion losses, making it suitable for improving signal integrity in sensitive electronic circuits.
The RT220-135-064 is especially suited for winding one or multiple coils, accommodating wires, coaxial cables, twisted pairs, and multi-core cables efficiently. Its toroidal shape ensures minimal electromagnetic interference, thereby enhancing overall device performance.
Manufactured in Taiwan, Province Of China, this product complies with established quality standards and is an essential component in industrial, electronic, and power supply applications requiring robust EMI filtering solutions.
Constructed from ferrite material to suppress electromagnetic interference effectively. Designed for use in frequencies ranging from 25MHz to 100MHz. Dimensions of 6.4 mm height, 13.5 mm inside diameter, and 22 mm outside diameter provide compatibility with multiple cable types.
Part of the RT series, ensuring reliable and repeatable performance. Ideal for coils, wires, coaxial cables, twisted pairs, and multi-core cables applications. Manufactured under quality-controlled conditions in Taiwan, Province Of China.
This ferrite ring toroid core is an important component in electronic filtering systems used across industrial, laboratory, manufacturing, and telecommunications sectors. Browse more from Essentra and related Ferrite Rings on EnvMart for comprehensive EMI filtering solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a height of 6.4 mm, an inside diameter of 13.5 mm, and an outside diameter of 22 mm.
It supports a minimum frequency of 25 MHz and a maximum frequency of 100 MHz, making it suitable for versatile filtering applications.
It is constructed from high-grade ferrite material, which is effective for electromagnetic interference suppression.
This core is primarily used for common mode interference filtering and managing power signal insertion losses in electronic assemblies.
It is ideal for use with one or more coils, accommodating wires, coaxial cables, twisted pairs, and multi-core cables.
It belongs to the RT series, which is recognized for delivering consistent performance in EMI filtering applications.
It is manufactured in Taiwan, Province Of China, ensuring compliance with established quality standards.
The sub-type of this product is a toroid core, which is designed specifically for effective EMI filtering.
The toroidal shape ensures minimal electromagnetic interference, thereby enhancing overall device performance in filtering applications.
Yes, it is an important component in electronic filtering systems used across industrial, laboratory, manufacturing, and telecommunications sectors.
The RT series ensures reliable and repeatable performance, making it suitable for various EMI filtering needs.
It is designed to filter common-mode noise, which helps improve signal integrity in sensitive electronic circuits.
