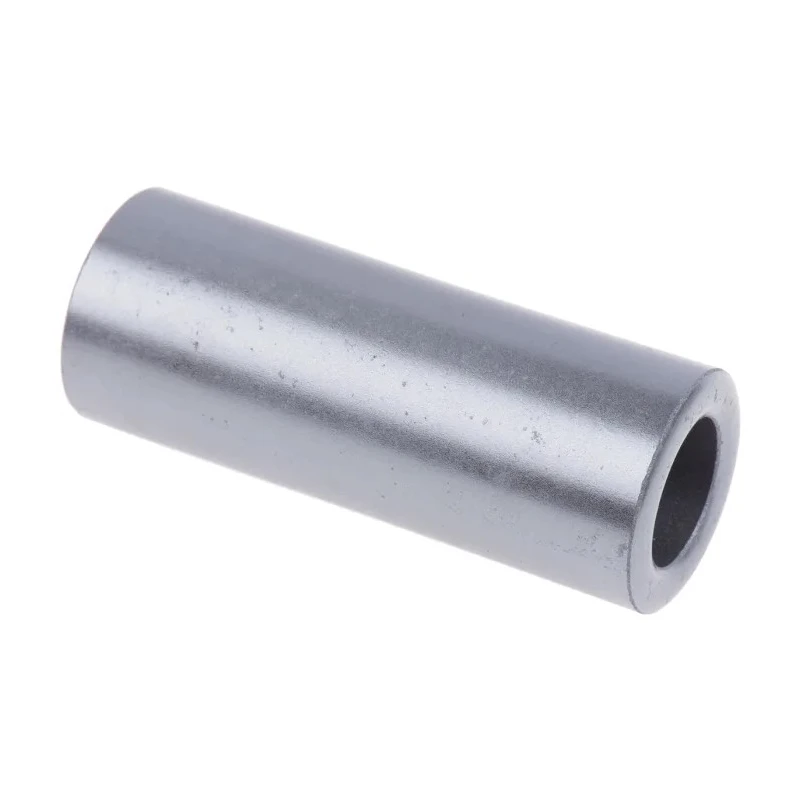

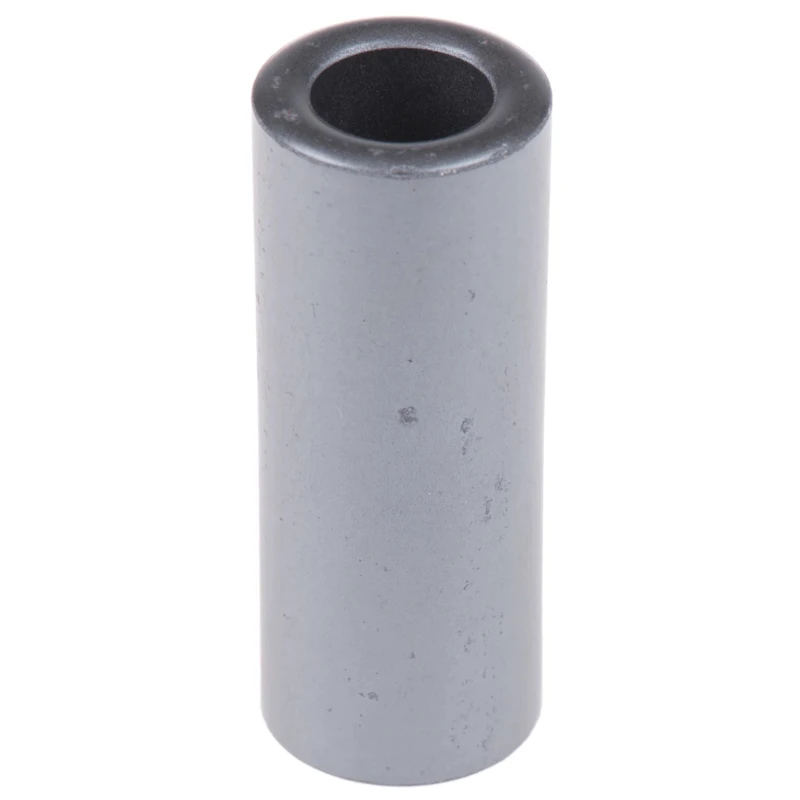

Wurth Elektronik Ferrite Ring Ferrite Core 50.8 mm Height, 11.5 mm ID, 19 mm OD WE-AFB Series 74270057

Wurth Elektronik 74270057 Ferrite Ring Ferrite Core is engineered for suppressing electromagnetic interference in electronic assemblies and general electronics applications. It features a 50.8 mm height toroidal ferrite composition designed to attenuate noise signals effectively in the frequency range from 25 MHz up to 100 MHz.

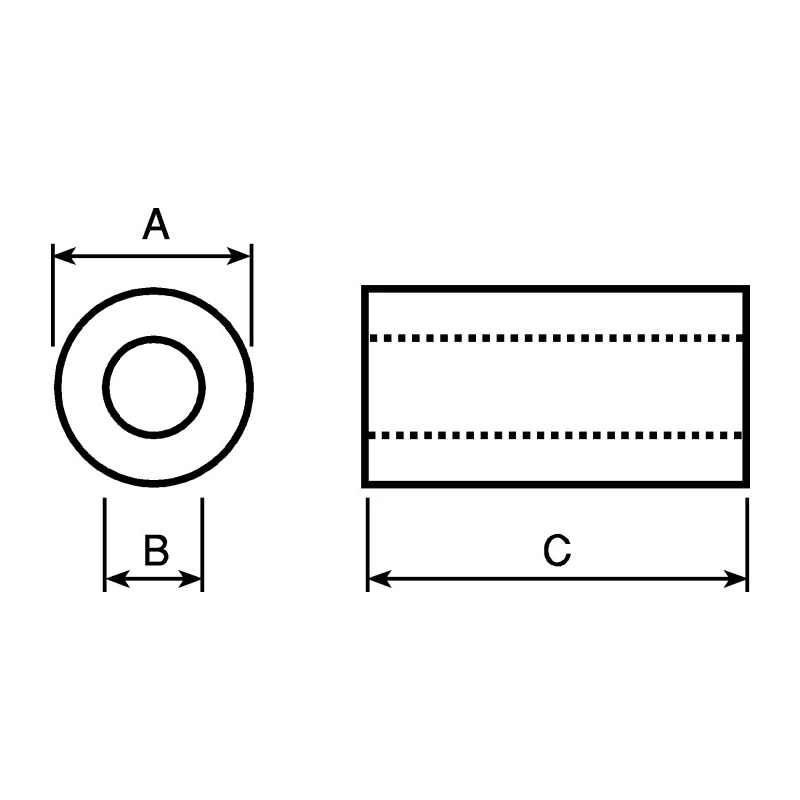

This component’s toroidal form allows straightforward placement around single or multiple conductors, functioning as a choke to reduce unwanted interference without requiring additional fastening hardware. The 11.5 mm inside diameter and 19 mm outside diameter provide adequate clearance for conductor routing, facilitating integration into cable suppression assemblies.

Manufactured to comply with RoHS and REACH directives, it ensures material safety and environmental compliance. The Wurth Elektronik WE-AFB series to which this core belongs is recognized for reliable EMI mitigation properties, suitable in both industrial and laboratory applications.

Effective EMI suppression in the 25 MHz to 100 MHz frequency band. Solid ferrite material ensures consistent magnetic behavior. Toroidal shape simplifies installation around cables and wiring. Meets RoHS and REACH standards for chemical compliance.

Designed for use as a choke in cable suppression and high-frequency circuits. Compatible with general electronic devices requiring EMI control. Part of the renowned WE-AFB series from Wurth Elektronik.

This Ferrite Ring core is ideal for integration in industrial, electronics manufacturing, power supply, and communication equipment settings where EMI suppression is critical. It supports designing safer, more reliable electronic systems by effectively reducing high-frequency noise interference.
