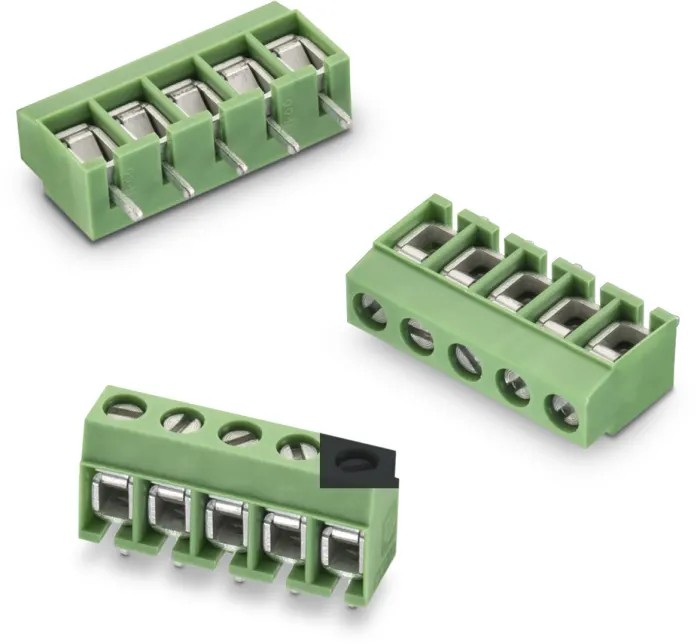

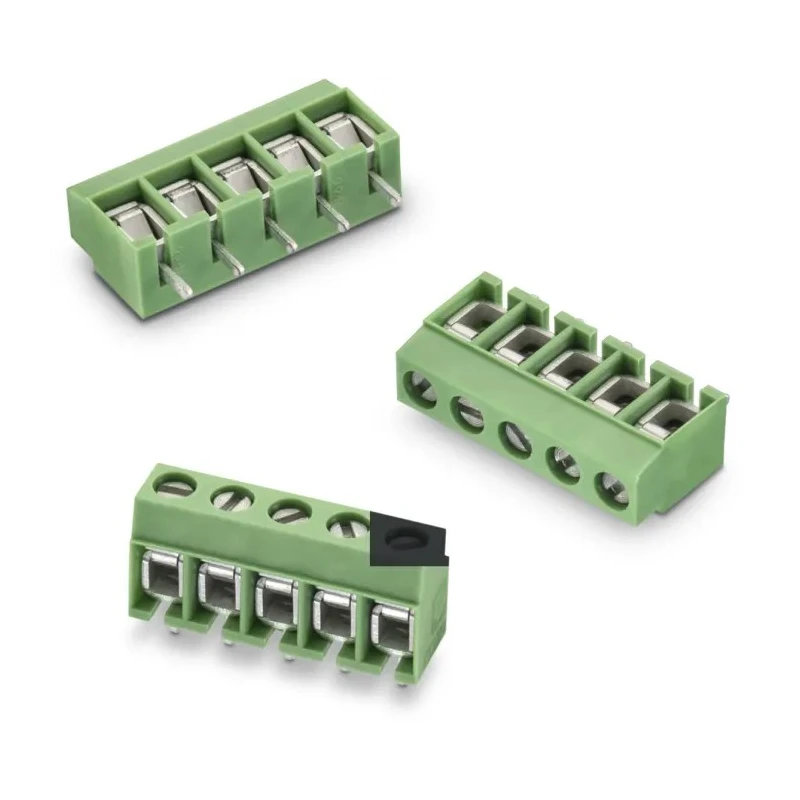

Wurth Elektronik WR-TBL Series PCB Terminal Block 8-Contact 5 mm Pitch Through Hole 250V Green 691137710008
Specifications
| Country of Origin | Italy |
|---|---|
| Voltage | 250V ac |
| Screw Size | M2.5 |
| Brand | Wurth Elektronik |
| Colour | Green |
| Orientation | Horizontal |
| Current | 24A |
| Length | 40mm |
| Depth | 11.5mm |
| Width | 7.5mm |
| Mount Type | Through Hole |
| Series | WR-TBL |
| Number of Rows | 1 |
| Pitch | 5mm |
| Standards/Approvals | RoHS, VDE, cULus |
| Number of Contacts | 8 |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 4mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire guard material | Copper alloy with tin |
| Terminal Screw Material | Steel |
| Terminal Screw Plating | Zinc |
Key Features
- High-quality WR-TBL Series PCB terminal block with 8 contacts.
- Supports a 5 mm pitch and through-hole mounting for secure PCB integration.
- Rated for 250V AC and 24A current for reliable power and signal transmission.
- Compatible with wire sizes from 0.5 mm² to 4 mm² (30 AWG to 12 AWG).
- Horizontal cable entry and pressure clamp ensure firm wire fastening.
- Copper alloy wire guards with tin plating for enhanced durability.
- Steel terminal screws with zinc plating for corrosion resistance.
- Operating temperature range from -30°C to +110°C for versatile use.
Product Description
The Wurth Elektronik WR-TBL Series PCB Terminal Block, model 691137710008, is a reliable and versatile component for electronic circuit assembly and industrial control applications. Designed to facilitate safe and robust wire connections, this terminal block features horizontal cable entry and pressure clamp for secure fastening.
With a pitch of 5 mm and accommodating 8 contacts in a single row, the terminal block is ideal for PCB layouts requiring organized multi-wire connectivity. Its green housing provides clear visual identification, and the through-hole design ensures firm integration with printed circuit boards.
The terminal block operates at voltages up to 250V AC and supports a maximum current of 24A, making it suitable for power distribution and signal transfer tasks in electronic and industrial systems. It accepts wire sizes from 0.5 mm² to 4 mm² and 30 AWG to 12 AWG, offering compatibility with a wide range of conductors.
Materials used include copper alloy wire guards with tin plating for corrosion resistance, and steel terminal screws with durable zinc plating. The block features a wire strip size of 6 mm, M2.5 screw size, and precise contact resistance rated at 20 mΩ for optimal electrical performance.
Compliant with RoHS, VDE, and cULus standards, the terminal block satisfies stringent industry requirements for safety and environmental regulations. Its operating temperature range of -30°C to +110°C enables use in demanding environments, while compact dimensions (length: 40 mm, width: 7.5 mm, depth: 11.5 mm) facilitate space-efficient installation.
Typical applications include industrial control panels, power supply connections, signal interfaces for automation systems, and electronic assembly projects across manufacturing, laboratory, and commercial electronics sectors. This terminal block ensures dependable connections, streamlined assembly, and maintenance-friendly operation.
Explore more PCB Terminal Blocks and electronics components from Wurth Elektronik in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 250V AC and a maximum current of 24A, making it suitable for power distribution and signal transfer tasks.
It accepts wire sizes from 0.5 mm² to 4 mm², which corresponds to 30 AWG to 12 AWG, providing compatibility with a wide range of conductors.
The terminal block has a length of 40 mm, a width of 7.5 mm, and a depth of 11.5 mm, facilitating space-efficient installation.
This model features a pitch of 5 mm, allowing for organized multi-wire connectivity on PCBs.
It uses a through-hole mounting method, ensuring firm integration with printed circuit boards.
The wire guards are made of copper alloy with tin plating, and the terminal screws are made of steel with zinc plating for corrosion resistance.
It operates within a temperature range of -30°C to +110°C, making it suitable for use in various demanding environments.
This model is compliant with RoHS, VDE, and cULus standards, ensuring it meets stringent industry requirements for safety and environmental regulations.
It features 8 contacts in a single row, which is ideal for applications requiring organized multi-wire connectivity.
The terminal block uses M2.5 screws for securing wire connections.
It has a horizontal cable entry, which aids in secure wire fastening.
Typical applications include industrial control panels, power supply connections, and signal interfaces for automation systems.
