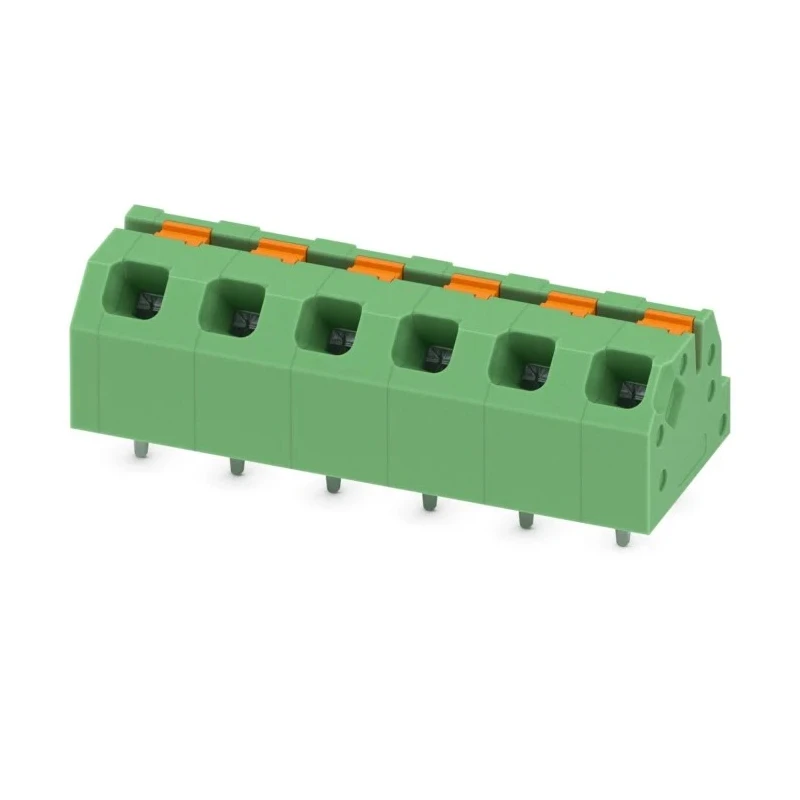

Phoenix Contact SPTAF 1/ 6-5.0-IL Series Angled Wave Soldering Mount PCB Terminal Block, 6 Contacts, 5 mm Pitch 1862314
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Angled |
| Current | 16A |
| Model | 1862314 |
| Mount Type | Wave Soldering Mount |
| Housing Material | Polyamide |
| Series | SPTAF 1/ 6-5.0-IL |
| Number of Rows | 1 |
| Connection Method | Push-in spring connection |
| Pitch | 5mm |
| Standards/Approvals | EU RoHS, cULus Recognised |
| Number of Contacts | 6 |
| PCB Terminal block, nominal current | 16 A, nom. voltage: 320 V, pitch: 5 mm, number of positions: 6, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, colour: green |
Key Features
- Features angled design for efficient PCB mounting.
- Wave soldering mount suitable for automated production lines.
- Supports 6 contacts for multi-terminal PCB applications.
- 5 mm pitch enables compact and reliable connection spacing.
- Manufactured with polyamide housing for durability.
- Rated for a nominal current of 16A and voltage up to 320V.
- Conforms to EU RoHS and cULus standards for component safety.
Product Description
Phoenix Contact SPTAF 1/6-5.0-IL Series PCB Terminal Block, model 1862314, is engineered for angled wave soldering mounting onto printed circuit boards. This terminal block provides a reliable and robust connection solution for various electronic and industrial applications.
The angled design facilitates space-saving integration and optimizes wire routing within assemblies. A 5 mm pitch between contacts allows for compact arrangement without compromising reliability.
With six contact positions, this terminal block is well-suited for multi-terminal and signal distribution tasks. The polyamide housing ensures mechanical strength, electrical insulation, and resistance to typical environmental stresses in PCB assembly environments.
Rated for a nominal current of 16A and voltage of 320V, the SPTAF 1/6-5.0-IL block meets demanding requirements for power and signal transmission. Wave soldering mount compatibility makes it ideal for high-volume automated production processes.
The push-in spring connection method enables fast and secure conductor insertion. Installation orientation is angled at 45°, enhancing component density and accessibility on the PCB. The terminal block meets EU RoHS and cULus Recognised safety standards, supporting compliance for regulated markets.
Industrial sectors utilizing this product include electronics manufacturing, electrical instrumentation, automation systems, and laboratory applications. For more high-performance connection solutions, browse Phoenix Contact products in the PCB Terminal Block family at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for a nominal current of 16A and a voltage of up to 320V.
The contact pitch for this terminal block is 5 mm, allowing for compact and reliable connections.
It features 6 contacts, making it suitable for multi-terminal PCB applications.
This model utilizes a push-in spring connection method for fast and secure conductor insertion.
The terminal block is designed with an angled orientation at 45°, which enhances component density and accessibility on the PCB.
It conforms to EU RoHS and is cULus Recognised, ensuring compliance with safety standards for regulated markets.
The housing is manufactured from polyamide, providing mechanical strength and electrical insulation.
It is designed for wave soldering mount, which is suitable for automated production lines.
The terminal block is manufactured in Germany.
This product is suitable for use in electronics manufacturing, electrical instrumentation, automation systems, and laboratory applications.
The terminal block is colored green, which is standard for many electronic components.
The angled design facilitates space-saving integration and optimizes wire routing within assemblies, enhancing overall efficiency.
