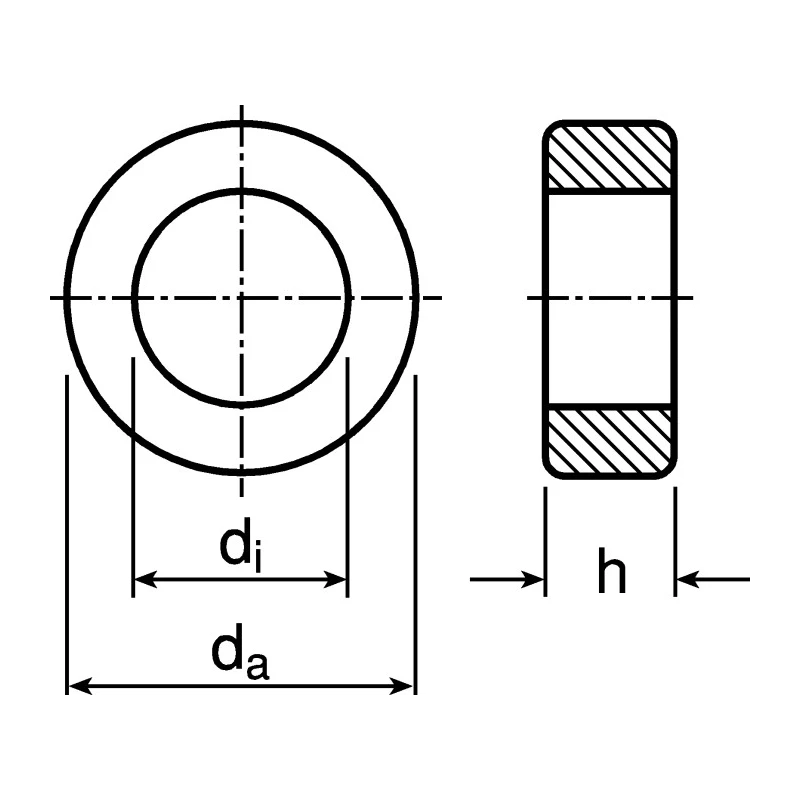

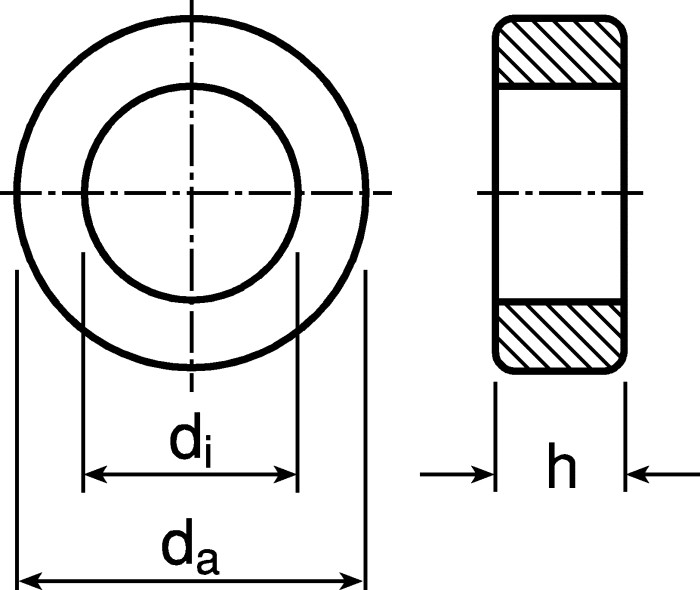

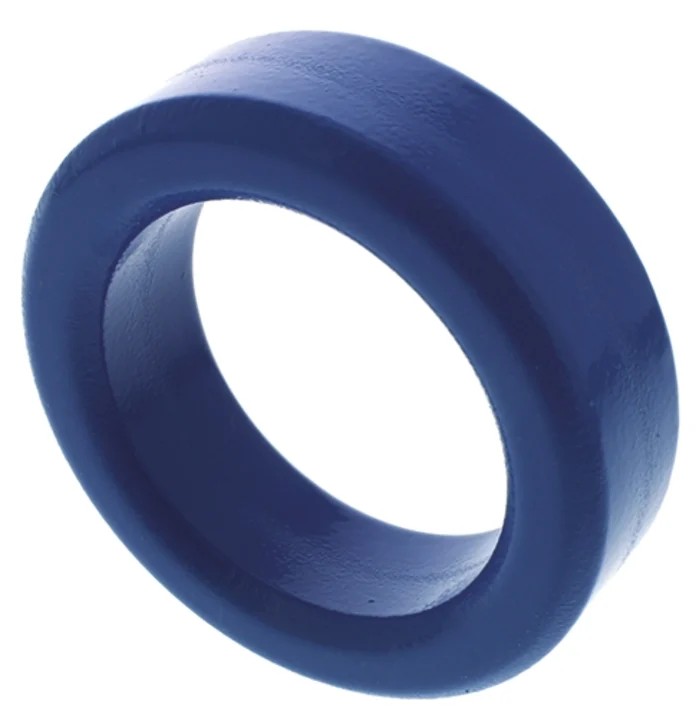

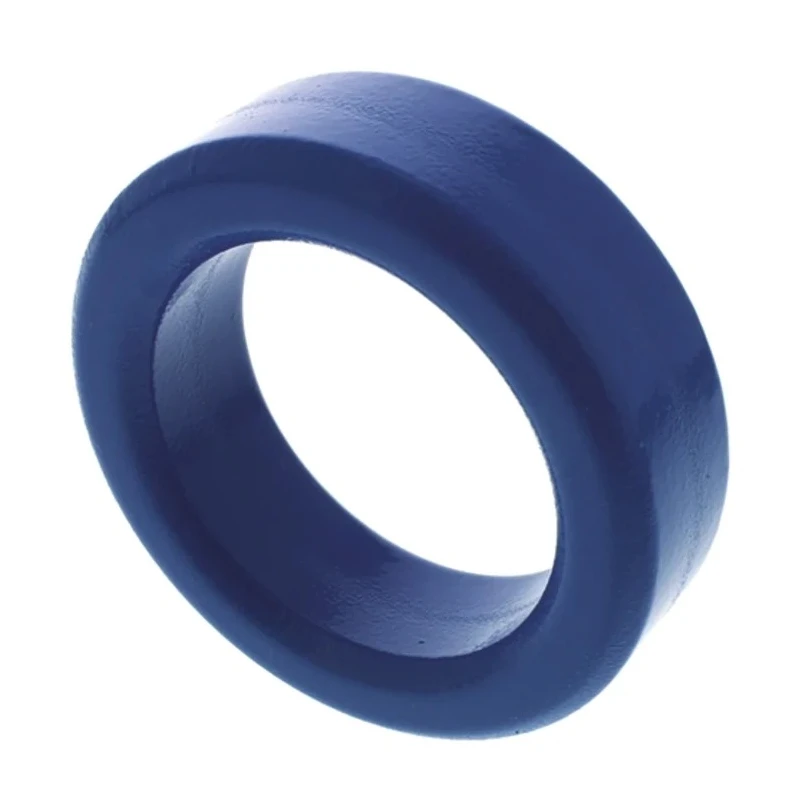

TDK Ferrite Ring Ferrite Core 18.8 mm Height, 39.2 mm ID, 60.1 mm OD for Transformer, Choke, Broadband B64290L0040X830
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Material | Ferrite N30 |
| Height | 18.8mm |
| Model | B64290L0040X830 |
| Series | B64290L0040 |
| Outside diameter | 60.1mm |
| Sub Type | Ferrite Core |
| Inside Diameter | 39.2mm |
| Standards/Approvals | RoHS |
| TDK Ferrite Ring Ferrite Core 18.8 mm, For | Transformer, Choke, Broadband Transformer, Pulse, Mixer 39.2 mm ID 60.1 mm |
Key Features
- Constructed from Ferrite material type N30 for reliable magnetic performance.
- Designed with polyamide or epoxy resin coating providing effective insulation and edge protection.
- Ideal for applications including chokes, baluns, pulse transformers, and broadband transformers.
- Compliance with RoHS standards ensures environmental and safety adherence.
- The ring is part of the B64290L0040 series, recognized for quality and consistency.
- Suitable for industrial and electronic components requiring precise ferrite core specifications.
- Outer diameter of 60.1 mm and inner diameter of 39.2 mm precisely matches design needs.
Product Description
TDK B64290L0040X830 Ferrite Ring Ferrite Core features a height of 18.8 mm, inside diameter of 39.2 mm, and outside diameter of 60.1 mm, crafted from high-quality Ferrite N30 material. This coated ring core is developed for applications in transformers, chokes, broadband transformers, pulse transformers, and mixers, providing excellent magnetic properties and durability.
The core coating utilizes polyamide or epoxy resin to ensure effective insulation and protect edges from mechanical damage, thereby enhancing the longevity and performance stability of the component. Its RoHS compliance attests to the product's environmental safety and adherence to regulatory standards.
These ferrite rings are essential components in electromagnetic interference filtering, signal processing, and various power management tasks within electronic and industrial contexts. Their dimensional accuracy and material composition are tailored to meet the demands of modern electronic engineering.
Applications include use in precision transformers, chokes, baluns, and broadband transformers where stable inductance and magnetic performance are critical. The product’s inner diameter (39.2 mm) and outer diameter (60.1 mm) enable optimal fitting in assemblies requiring reliable choke and pulse transformer components.
Constructed from Ferrite N30 material ensuring effective electromagnetic properties. Protective coating of polyamide or epoxy resin for insulation and durability. Compliant with RoHS standards for environmental safety. Precisely designed dimensions of 18.8 mm height, 39.2 mm inside diameter, and 60.1 mm outside diameter.
Compatible with a wide range of electronic components including transformers and chokes. Part of the recognized B64290L0040 series for quality assurance. Used extensively in industrial and electronic electrical applications requiring stable ferrite cores.
Explore a wide array of Ferrite Rings and cores to find compatible parts tailored to your industrial or commercial requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ferrite core has a height of 18.8 mm, an inside diameter of 39.2 mm, and an outside diameter of 60.1 mm.
It is constructed from Ferrite N30 material, which provides reliable magnetic performance.
This ferrite ring is suitable for applications including transformers, chokes, broadband transformers, pulse transformers, and mixers.
Yes, this ferrite core complies with RoHS standards, ensuring environmental safety and adherence to regulatory requirements.
The ferrite core is coated with polyamide or epoxy resin, providing effective insulation and edge protection.
This ferrite core is part of the B64290L0040 series, which is recognized for its quality and consistency.
The weight of this ferrite core is not specified in the provided information.
The primary function of this ferrite core is to provide effective electromagnetic properties for use in applications like signal processing and electromagnetic interference filtering.
The country of origin for this ferrite core is India.
The inner diameter of 39.2 mm and outer diameter of 60.1 mm enable optimal fitting in assemblies requiring reliable choke and pulse transformer components.
Yes, it is suitable for industrial and electronic applications that require stable ferrite core specifications.
The height of this ferrite core is 18.8 mm.
