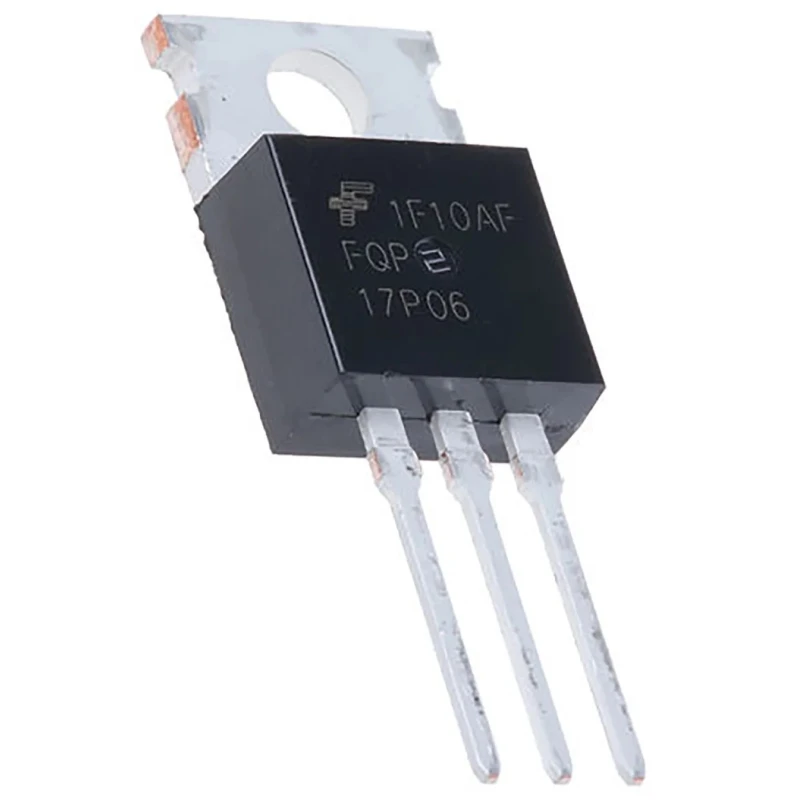

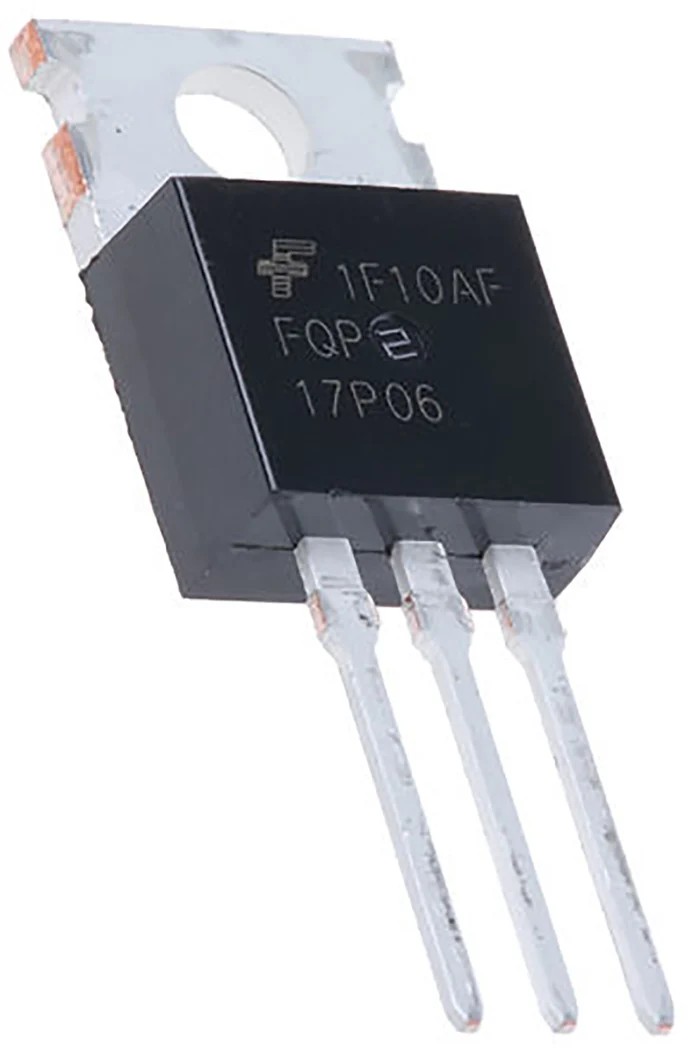

onsemi QFET Type P-Channel MOSFET, 17 A, 60 V Enhancement, 3-Pin TO-220 FQP17P06
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 9.4mm |
| Length | 10.1mm |
| Model | FQP17P06 |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Series | QFET |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Channel Type | Type P |
| Maximum Continuous Drain Current Id | 17A |
| Maximum Drain Source Voltage Vds | 60V |
| Maximum Drain Source Resistance Rds | 120mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 79W |
| Typical Gate Charge Qg @ Vgs | 21nC |
| Maximum Gate Source Voltage Vgs | -25, +25V |
| Forward Voltage Vf | -4V |
Key Features
- This enhancement mode device supports a maximum continuous drain current of 17 A.
- The maximum drain-source voltage is 60 V, suitable for moderate voltage applications.
- It features a low maximum drain source resistance of 120 milliohms, reducing power dissipation.
- The MOSFET package type is TO-220 with 3 pins and through-hole mount standard.
- It withstands operating temperatures from -55°C up to 175°C for wide thermal applications.
- The device exhibits a maximum power dissipation of 79 W, allowing efficient heat handling.
- Typical gate charge is 21 nC at Vgs, enhancing switching performance.
- The maximum gate-source voltage rating is ±25 V, ensuring device protection.
Product Description
onsemi FQP17P06 is a QFET type P-Channel MOSFET designed for industrial and electronic power management applications. This enhancement-mode transistor allows maximum continuous drain current of 17 A with a maximum drain-source voltage of 60 V, making it suitable for medium power circuits.
It comes in a 3-pin TO-220 package designed for through-hole mounting, aiding easy integration into industrial assemblies.
The device offers a low drain source resistance of 120 milliohms and high power dissipation capability of 79 W, which reduces losses and improves efficiency in power switching applications.
Designed for robust use, the MOSFET supports a wide operating temperature range from -55°C to 175°C, meeting the demands of harsh environments. The typical gate charge is 21 nC at gate-source voltage, allowing faster switching with lower gate drive losses.
Compact dimensions of approximately 10.1 mm length, 4.7 mm width, and 9.4 mm height support space-constrained designs.
These features make the FQP17P06 ideal for industrial electronics including power supplies, power factor correction, DC-DC conversion, plasma display panels, and lighting ballast applications.
This device supports high current handling with enhanced switching characteristics. The TO-220 package ensures reliable mechanical and thermal performance. It is used in industrial, electronic, and commercial applications requiring efficient power transistors.
Robust operating temperature and voltage ratings make it suitable for rigorous environments. Compact size supports modern PCB designs with space limitations. Explore a wide range of MOSFET devices for enhanced electronic control and power management on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 17 A.
It has a maximum drain-source voltage rating of 60 V, making it suitable for moderate voltage applications.
This device comes in a TO-220 package type and is designed for through-hole mounting.
The maximum power dissipation for the FQP17P06 is 79 W, allowing for efficient heat handling.
The typical gate charge at gate-source voltage (Vgs) is 21 nC, which enhances switching performance.
It can operate within a temperature range from -55°C to 175°C, suitable for harsh environments.
The maximum gate-source voltage rating is ±25 V, ensuring device protection.
The dimensions of this model are approximately 10.1 mm in length, 4.7 mm in width, and 9.4 mm in height.
It features a low maximum drain-source resistance of 120 milliohms, which reduces power dissipation.
This MOSFET is suitable for applications such as power supplies, power factor correction, DC-DC conversion, plasma display panels, and lighting ballast.
This model has 3 pins, designed for easy integration into industrial assemblies.
The FQP17P06 uses a P-Channel type, specifically designed for enhancement mode operation.
