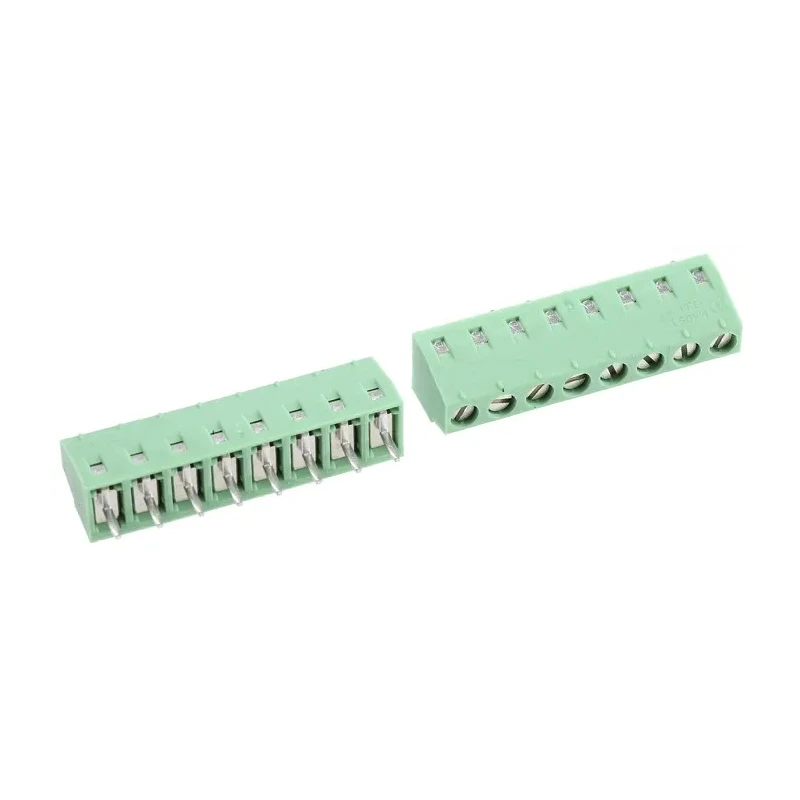

Phoenix Contact MKDS 1/8-3.81 Series PCB Terminal Block, 8-Contact, 3.81 mm Pitch, 1 Row, Polyamide Housing, Screw 1727078

Phoenix Contact 1727078 is a high-quality PCB Terminal Block from the trusted MKDS 1/8-3.81 Series designed for reliable electronic component connection in industrial and automation environments. This terminal block features 8 individual contacts arranged in a single row with a 3.81 mm pitch.

The device utilises a screw connection method with an integrated screw-locking system, which offers excellent wire retention and prevents accidental loosening, eliminating the need for retightening. The housing is made from durable polyamide material, coloured green for easy identification on the PCB.

Wires with cross-sectional areas from 0.14 mm² to 1.5 mm² (26 AWG to 16 AWG) are compatible, making it flexible for diverse wiring configurations. Its electrical ratings are 160 V voltage and 12 A current capacity, suitable for many low to medium power applications.

The terminal block has compact dimensions of 30.47 mm length, 8.5 mm width, and 7.3 mm depth, designed for through-hole mounted PCBs with a straight body orientation. The solder pins are separated from the terminal sleeve to enhance strain relief and prevent wire breakage, improving connection reliability. Low temperature rise also ensures safe operation without PCB overheating.

Manufactured in Germany, this product meets high quality standards and offers UL 94 V-0 flame retardant compliance, minimizing fire risks. It is commonly used in industrial machinery, automated control systems, manufacturing equipment, and electrical panel assemblies.

Robust PCB Terminal Block with 8 discrete contacts and 1 row configuration. Screw connection method ensures secure wire termination. Polyamide housing material with green coloration for visual identification. Supports wire sizes ranging from 0.14 mm² to 1.5 mm² (26 AWG to 16 AWG).

Rated for 160 volts and 12 amperes electrical load capacity. Compact dimensions: 7.3 mm depth, 8.5 mm width, and 30.47 mm length. Straight body orientation suited for through-hole PCB mounting. Features integrated screw-locking system to prevent wire disengagement.

Manufactured in Germany ensuring high build quality and durability. Complies with UL 94 V-0 flame retardant rating for enhanced safety.

This terminal block is ideal for applications requiring reliable, compact, and safe PCB wire connection solutions. Discover more industrial and electronic components in the Connectors and Terminal Blocks category on EnvMart.
