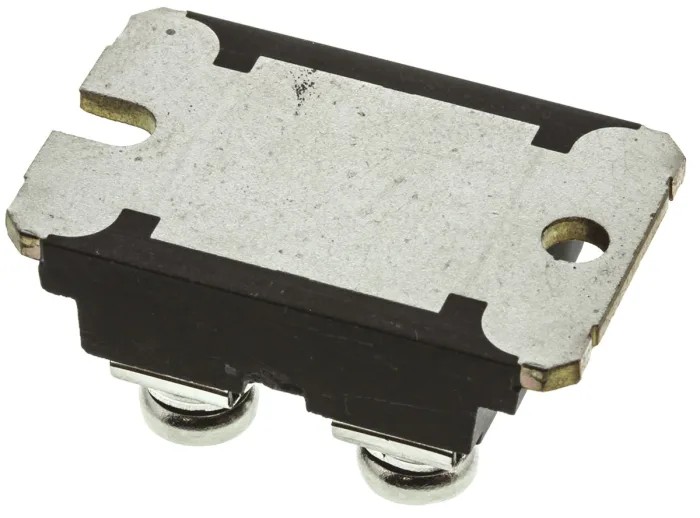

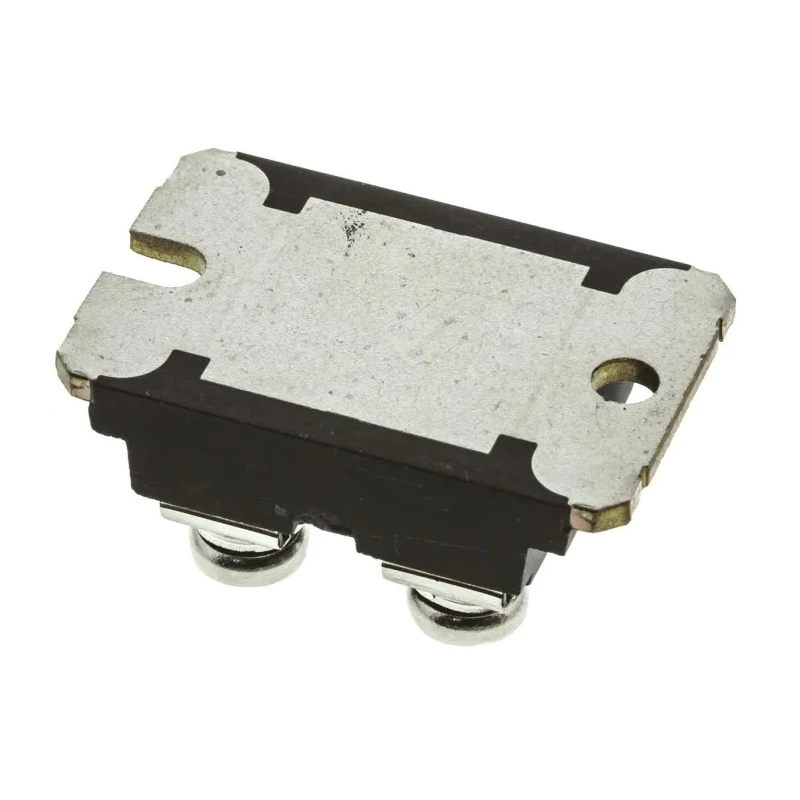

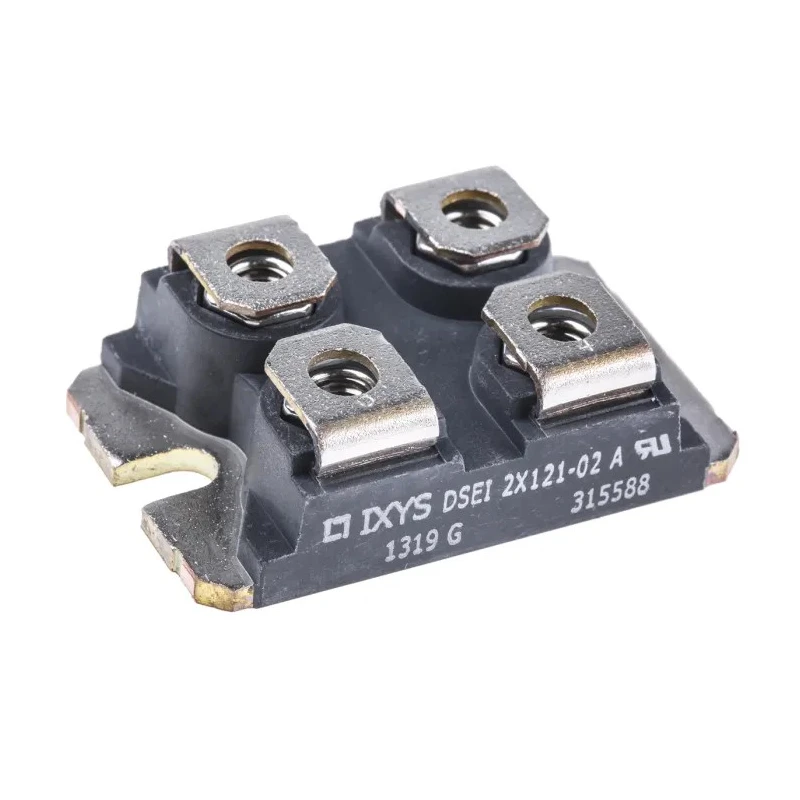

IXYS 200 V 123 A Switching Diode Panel Mount SOT-227 12-Pin DSEI2X121-02A
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 9mm |
| Length | 51mm |
| Model | DSEI2X121-02A |
| Width | 34.3mm |
| Mount Type | Panel |
| Series | DSEI2X121 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-227 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 12 |
| Maximum Continuous Forward Current If | 123A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Isolated |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.3kA |
| Maximum Forward Voltage Vf | 1.1V |
| Peak Reverse Recovery Time trr | 50ns |
| STMicroelectronics 200 V 120 A Diode Switching 4-Pin ISOTOP STTH20002TV1Brand | STMicroelectronics |
Key Features
- Panel mount type with SOT-227 package for easy installation.
- Maximum continuous forward current of 123 Amperes for high power applications.
- Peak reverse repetitive voltage of 200 Volts ensures robust blocking capability.
- Isolated diode configuration offering improved safety and heat dissipation.
- 12-pin design optimizing electrical and mechanical performance.
- Low forward voltage drop of 1.1 Volts enhances energy efficiency.
- Fast peak reverse recovery time of 50 nanoseconds suitable for switching circuits.
- Operates reliably between -40°C and 150°C for diverse environmental conditions.
Product Description
IXYS DSEI2X121-02A is a high-performance panel mount switching diode packaged in a 12-pin SOT-227 form factor. It features a maximum continuous forward current rating of 123 A and a peak reverse repetitive voltage of 200 V, making it ideal for robust power rectification in industrial and commercial semiconductor applications.
The diode configuration is isolated, providing enhanced thermal management and electrical isolation suited for high current operations. With a low forward voltage of 1.1 V and fast peak reverse recovery time of 50 ns, this diode optimizes switching efficiency and reduces power losses.
Engineered to withstand a wide operating temperature range from -40°C to 150°C, the DSEI2X121-02A diode excels in demanding environments. The device also supports peak non-repetitive forward surge currents up to 1.3 kA, ensuring reliability during transient conditions such as short circuit or startup surges.
The physical dimensions of 51mm length, 34.3mm width, and 9mm height enable compact panel installation without compromising thermal dissipation. This discrete semiconductor device is suitable for diverse industrial, electrical, and power management uses including power supplies, motor drives, and switching regulators.
Panel mount SOT-227 12-pin package for secure mounting and connectivity. High current capacity with 123 A maximum continuous forward current. Robust 200 V peak reverse repetitive voltage rating. Isolated diode for improved safety and thermal stability.
Low forward voltage and fast switching characteristics. Wide operating temperature range from -40°C to 150°C. Surge capability of 1.3 kA non-repetitive forward current. Compact size for integration in power electronics systems.
This IXYS diode model DSEI2X121-02A is a reliable component choice for engineers and designers working in industrial electronics, power conversion, and semiconductor device manufacturing. For more semiconductor and diode products, explore EnvMart's extensive electrical and electronics catalog for dependable components and solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the DSEI2X121-02A is 123 Amperes, making it suitable for high power applications.
This model has a peak reverse repetitive voltage rating of 200 Volts, ensuring robust blocking capability.
The physical dimensions of the DSEI2X121-02A are 51mm in length, 34.3mm in width, and 9mm in height.
It operates reliably between -40°C and 150°C, allowing it to function in diverse environmental conditions.
The diode is designed for panel mounting, which facilitates secure installation and connectivity.
The maximum forward voltage drop for the DSEI2X121-02A is 1.1 Volts, which enhances energy efficiency.
This diode supports a peak non-repetitive forward surge current of up to 1.3 kA, ensuring reliability during transient conditions.
The peak reverse recovery time is 50 nanoseconds, making it suitable for switching circuits.
It features an isolated diode configuration, which provides improved safety and thermal management.
The DSEI2X121-02A is packaged in a SOT-227 form factor, which is designed for easy installation.
This model is suitable for various industrial, electrical, and power management applications, including power supplies and motor drives.
The DSEI2X121-02A is manufactured in India.
