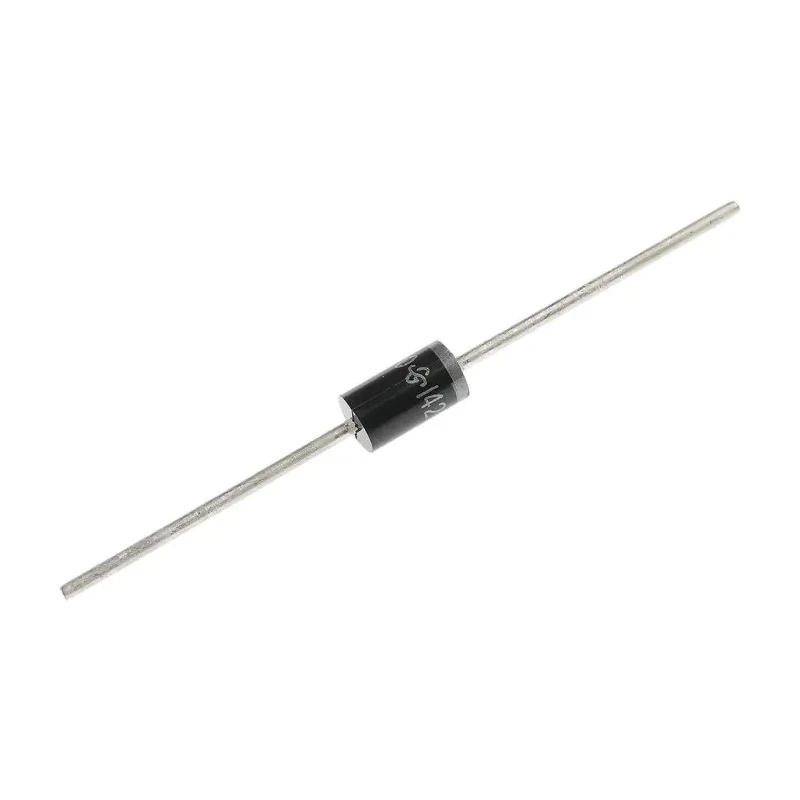

Vishay 50 V 3 A Rectifier Diode Through Hole Package DO-201AD 1N5400-E3/54
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Length | 9.5mm |
| Model | 1N5400-E3/54 |
| Mount Type | Through Hole |
| Series | 1N5400 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -50°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 50V |
| Diode Configuration | Single |
| Rectifier Type | Rectifier Diode |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 1.2V |
Key Features
- Capable of managing high forward surge currents up to 200 A.
- Low forward voltage drop of 1.2 V improves efficiency.
- Wide operating temperature range from -50 °C to 150 °C ensures reliable performance.
- Matte tin plated leads compatible with J-STD-002 and JESD 22-B102 soldering standards.
- Flame retardant epoxy body rated to UL94 V-0 standard for safety.
- Low leakage current minimizes power loss during operation.
- Standard recovery time greater than 500 ns suits various power supply applications.
- Two pin single diode configuration suitable for power rectification circuits.
Product Description
Vishay 1N5400-E3/54 is a 3 ampere, 50 volt rectifier diode in a DO-201AD through hole package designed for general purpose power rectification applications in industrial and electronic equipment.
This diode series features a moulded epoxy body with a compact length of 9.5 mm and diameter of 5.3 mm ensuring easy mounting on PCBs. It offers a low forward voltage drop of 1.2 V with a maximum continuous forward current rating of 3 A, ideal for efficient power conversion.
The device is capable of handling high forward surge currents up to 200 A, making it suitable for circuits subjected to transient surges. It has a peak reverse repetitive voltage of 50 V and a peak reverse current of 500 μA contributing to its robustness in rectifier circuits.
Operating reliably within a wide temperature range from -50 °C to +150 °C, the diode is compliant with safety standards UL94 V-0 for flame retardancy. The matte tin plated leads comply with soldering requirements described by J-STD-002 and JESD 22-B102, enhancing solderability with modern manufacturing processes.
The cathode end is clearly marked with a color band for correct polarity identification during assembly. This Vishay diode family is widely used for rectifiers in inverters, converters, freewheeling diodes, and power supply circuits in industrial, manufacturing, and consumer electronics sectors.
Handles high forward surge currents safely. Low forward voltage reduces power dissipation. Wide operational temperature range enhances reliability. Epoxy moulded plastic casing provides protection. Standard two-pin DO-201AD package for through hole mounting.
Matte tin plated leads ensure excellent solderability. Flame retardant body meets UL94 V-0 classification. Suitable for use in converters, power supplies, and inverter circuits. Manufactured according to Vishay quality standards in China.
Explore more Vishay semiconductor components and rectifier diodes available at EnvMart for your electronic and industrial automation projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating for this model is 3 A.
The peak reverse repetitive voltage is 50 V.
The diameter is 5.3 mm and the length is 9.5 mm.
It operates reliably within a temperature range from -50 °C to +150 °C.
The maximum forward voltage drop is 1.2 V.
This diode can handle high forward surge currents up to 200 A.
It uses a through hole mounting type.
The peak reverse current is 500 μA.
The epoxy body is rated to the UL94 V-0 standard for flame retardancy.
This model has a pin count of 2.
It features a single diode configuration.
It is manufactured in China.
