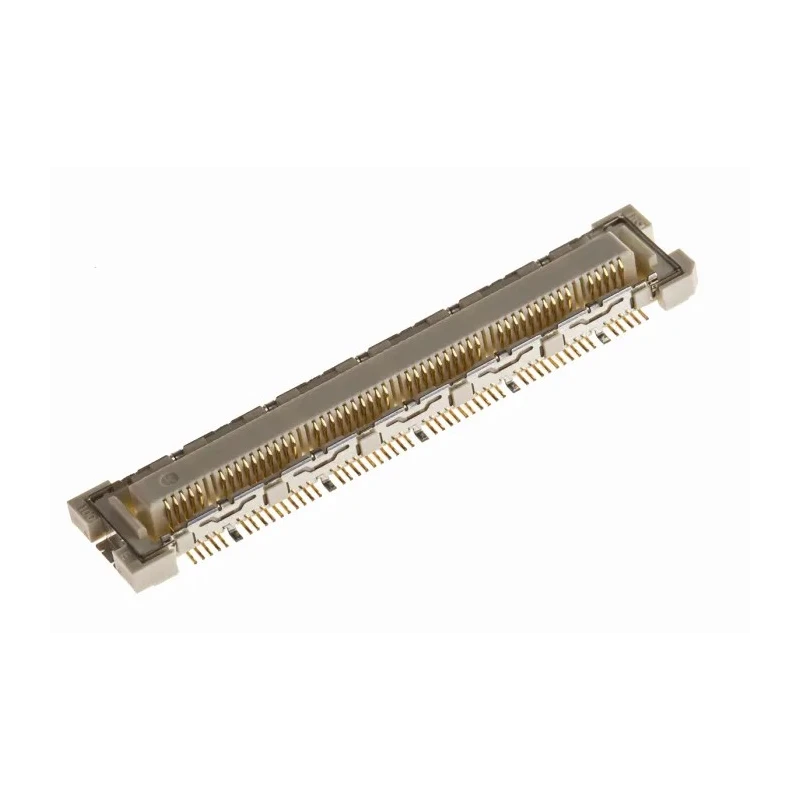

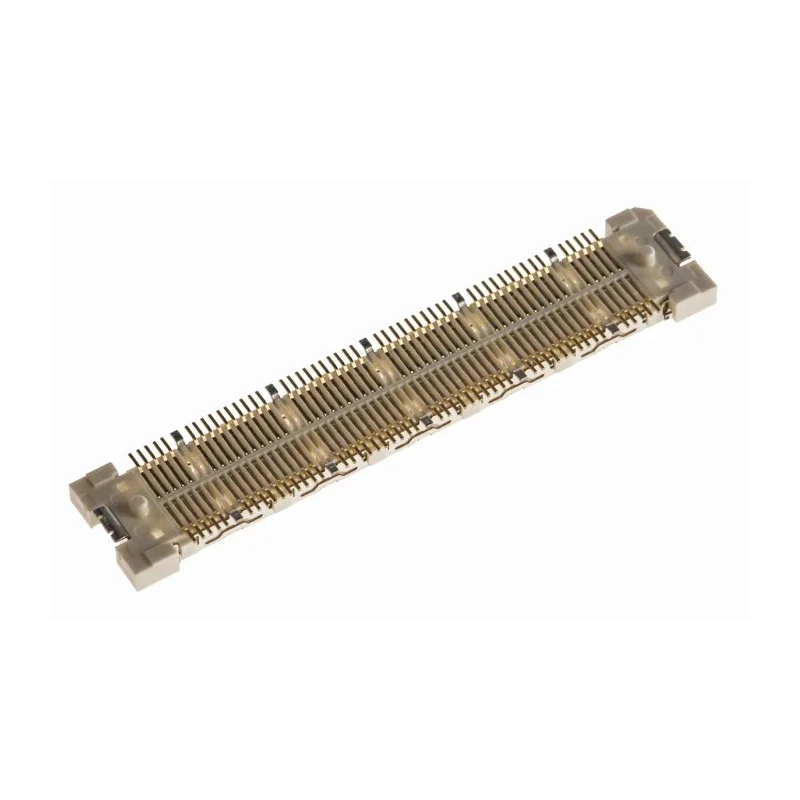

Hirose FunctionMAX FX10 Series Straight Surface PCB Socket, 2 Row, 0.5 mm Pitch Solder

Hirose FX10 FunctionMAX FX10 Series Straight Surface PCB Socket, model FX10A-100S/10-SV(91), is a precision board-to-board stacking connector featuring a 0.5 mm pitch and two rows of female contacts. This SMT surface mount connector employs a liquid crystal polymer housing that offers high mechanical strength and thermal stability. With a compact stacking height of 4 mm and a 10:1 signal-to-ground ratio, the connector optimizes grounding and reduces signal crosstalk, delivering stable high-speed data transmission exceeding 15 Gbit/s.

The socket supports a nominal current of 300mA and voltage rating of 50V, suitable for sensitive industrial and medical applications requiring reliable low power connections. The bronze contacts are gold-plated to improve electrical contact quality and protect against corrosion. Its operating temperature range spans from -55°C to 85°C, enabling dependable operation in harsh environments.

A grounding plate fits on both sides of the header and receptacle connectors, strengthening grounding and enhancing signal integrity. Additionally, metal mounting fittings at each end increase PCB retention and solder weld strength, key for durable industrial usage.

This FX10 socket is widely applicable in high-density electronics, including industrial controllers, industrial motors, medical diagnostic equipment, servers, smart meters, base station transceivers, and programmable logic controllers (PLCs). The precise alignment guideposts ensure accurate PCB placement and assembly.

Hirose's FunctionMAX range is engineered for advanced industrial requirements, offering superior signal transmission performance through differential design and noise resistance. Their connectors meet the demanding performance, grounding, and mechanical robustness standards of modern electronic equipment manufacturing.

Compact 0.5 mm pitch for high-density PCB stacking. High-speed data transmission over 15 Gbit/s. Robust liquid crystal polymer housing for SMT mounting. Gold-plated bronze female contacts for reliability. Grounding plates and metal fittings improve stability and PCB retention.

Operating temperature from -55°C to 85°C for harsh environments. Ideal for industrial, medical, and communication equipment. Explore EnvMart's extensive range of PCB Sockets and connectors for reliable high-performance electronic assembly solutions.
