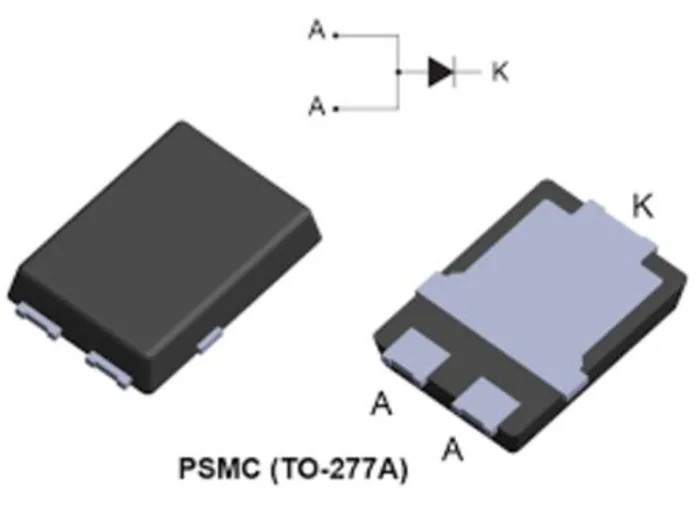

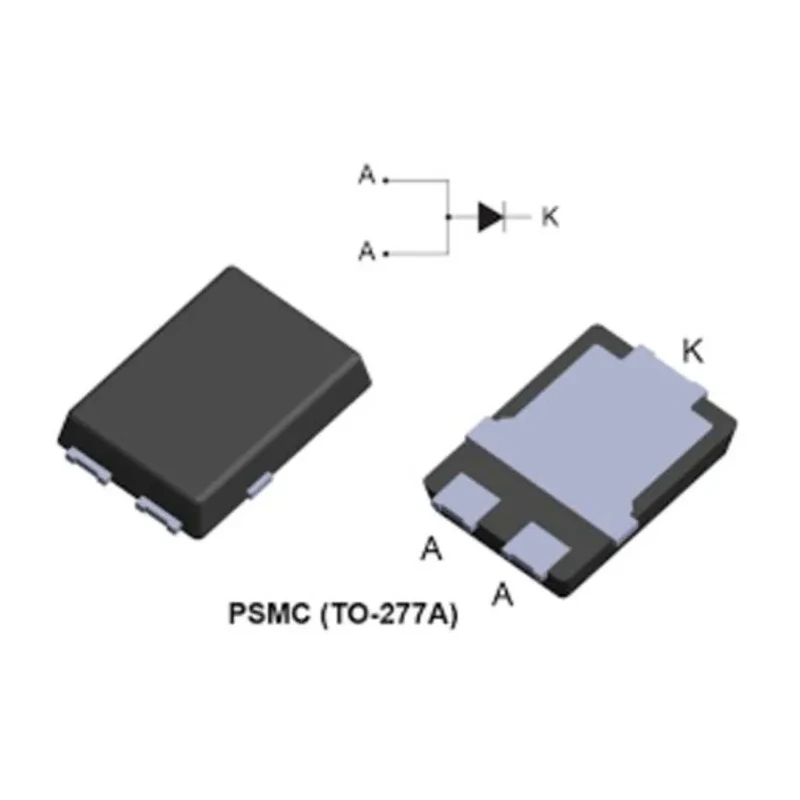

STMicroelectronics 200 V 10 A Surface Mount Diode TO-277A Package STTH1002CSF
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1mm |
| Length | 6.35mm |
| Model | STTH1002CSF |
| Width | 4.35mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-277A |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Peak Reverse Current Ir | 4μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 85A |
| Maximum Forward Voltage Vf | 1.04V |
Key Features
- Supports maximum continuous forward current of 10 A.
- Peak reverse repetitive voltage rated at 200 V.
- Features a low maximum forward voltage of 1.04 V.
- Operates within temperature range from -40°C to 175°C.
- High surge current capability up to 85 A.
- RoHS compliant and ECOPACK2 certified component.
- Three-pin configuration in a TO-277A surface mount package.
- Low peak reverse current rated at 4 μA for efficiency.
Product Description
STMicroelectronics STTH1002CSF is a 200 V, 10 A diode mounted on a TO-277A surface mount package designed for industrial and electronic applications requiring efficient switching with optimized forward voltage and reverse recovery characteristics. Its design makes it ideal for secondary rectification in DC/DC converters and lighting systems.
The device supports high operating junction temperatures up to 175°C, ensuring reliability in demanding environments. Its robust construction allows it to handle peak non-repetitive forward surge currents up to 85 A. The diode features a low forward voltage drop at 1.04 V to enhance energy efficiency and reduce power loss.
This diode is RoHS compliant and meets ECOPACK2 environmental standards, making it suitable for green manufacturing requirements. Its compact package dimensions of 6.35 mm length, 4.35 mm width, and 1 mm height allow for efficient PCB space utilization.
Additional features include a peak reverse repetitive voltage of 200 V, a low peak reverse current of only 4 μA, and three pins configured for surface mounting. However, it does not carry an automotive standard certification.
Applications of the STTH1002CSF diode span across various industries including industrial machinery, lighting solutions, and power electronics requiring reliable, efficient, and compact diode components.
Supports maximum continuous forward current of 10 A. Peak reverse repetitive voltage rated at 200 V. Low maximum forward voltage of 1.04 V enhances efficiency. Operates reliably from -40°C to 175°C. Handles peak non-repetitive forward surge current of up to 85 A.
RoHS and ECOPACK2 compliant for environmental safety. Compact 3-pin TO-277A surface mount package. Low peak reverse current of 4 μA reduces leakage losses. Ideal for DC/DC converters and lighting applications requiring secondary rectification.
High operating junction temperature for demanding industrial use. Discover a wide range of semiconductors and electronic components like the STTH1002CSF diode at EnvMart for advanced electronics manufacturing and industrial applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 10 A.
It has a peak reverse repetitive voltage rating of 200 V.
The maximum forward voltage drop is 1.04 V, which enhances energy efficiency.
This model operates reliably within a temperature range from -40°C to 175°C.
It can handle a peak non-repetitive forward surge current of up to 85 A.
The diode is housed in a TO-277A surface mount package.
It features a three-pin configuration for surface mounting.
The peak reverse current is rated at 4 μA, which helps reduce leakage losses.
Yes, it is RoHS compliant and meets ECOPACK2 environmental standards.
It is suitable for applications in industrial machinery, lighting solutions, and power electronics requiring efficient switching.
The dimensions are 6.35 mm in length, 4.35 mm in width, and 1 mm in height.
The country of origin for this diode is India.
