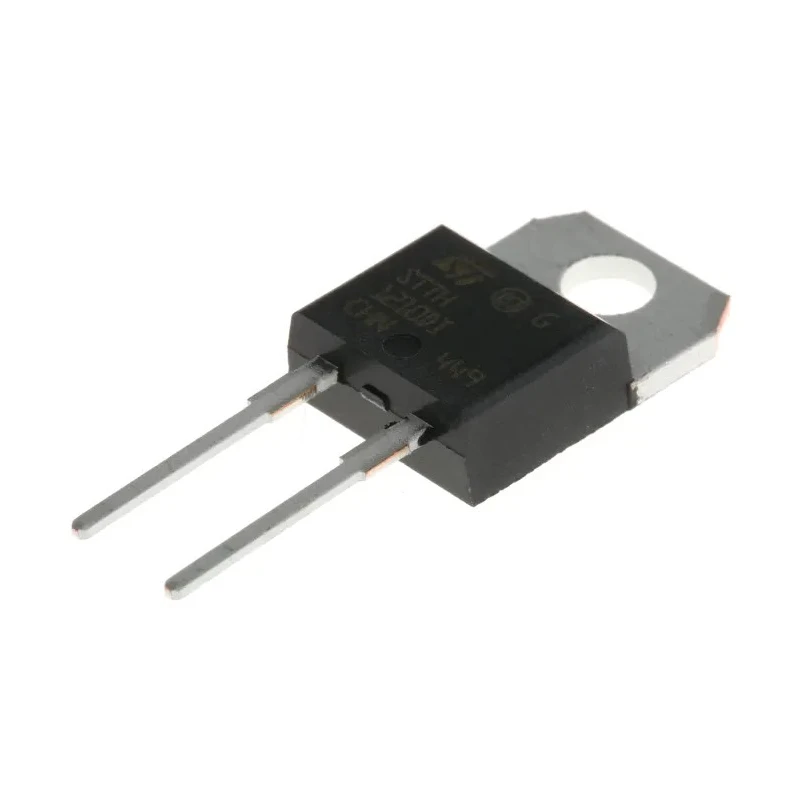

STMicroelectronics 1 kV 12 A Switching Diode 2-Pin TO-220F STTH1210DI

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 1 kV 12 A Switching Diode 2-Pin TO-220F STTH1210DI

Name: STMicroelectronics 1 kV 12 A Switching Diode 2-Pin TO-220F STTH1210DI
Brand: STMicroelectronics
SKU: 126532
Price: 1.83 USD
Availability: InStock



Category Switching Diodes Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Diameter	3.75mm
Brand	STMicroelectronics
Height	9.3mm
Length	10.4mm
Model	STTH1210DI
Width	4.6mm
Mount Type	Through Hole
Series	STTH1210
Maximum Operating Temperature	175°C
Package Type	TO-220F
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Maximum Continuous Forward Current If	12A
Peak Reverse Repetitive Voltage Vrrm	1kV
Diode Configuration	Single
Rectifier Type	Switching
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	80A
Maximum Forward Voltage Vf	2V
Peak Reverse Recovery Time trr	48ns
Infineon Silicon Diode, Single, 7.5 A, 2-Pin 650 V TO-220 IDV15E65D2XKSA1Brand	Infineon
Vishay 600V 12A, Silicon Junction Diode, 2-Pin TO-220F UGF12JT-E3/45Brand	Vishay

Key Features

Through-hole mount with TO-220F package design.
Maximum forward voltage of 2 volts ensures low power loss.
Peak non-repetitive forward surge current rating of 80 amps.
Peak reverse recovery time of 48 nanoseconds for fast switching.
Operates reliably within a temperature range of -65°C to 175°C.
Single diode configuration with two pins for simple circuit integration.
RoHS compliant, enhancing environmental safety.
Peak reverse current limited to 10 microamperes for stability.

Product Description

STMicroelectronics STTH1210DI is a high-performance switching diode built for electronic components and power distribution systems. Featuring a robust TO-220F package and through-hole mount type, it is designed for industrial and commercial semiconductor applications.

This diode provides a maximum continuous forward current of 12 amps and a peak reverse repetitive voltage rating of 1 kV, suitable for high voltage switching circuits. The maximum forward voltage drop of 2 volts ensures energy-efficient operation while handling significant current loads.

Designed for durability, the diode operates over a wide temperature range from -65°C to 175°C, making it reliable in harsh environmental conditions. Its peak non-repetitive forward surge current rating of 80 amps offers resilience in transient surge events.

The fast switching capability is demonstrated by a peak reverse recovery time of 48 nanoseconds, ideal for high-frequency rectification and switching power supplies. With a single diode configuration and two-pin layout, it integrates easily into circuitry.

Through-hole mount with TO-220F package. Maximum forward current of 12 A. High reverse voltage resistance at 1 kV. Low forward voltage drop of 2 V for efficient operation. Peak reverse recovery time of 48 ns ensuring rapid switching.

Wide operating temperature range from -65°C to 175°C. Compact dimensions ideal for tight circuit board layouts. RoHS certified for environmental compliance. Peak reverse current limited to 10 μA for stable performance. Suitable for industrial, laboratory, and power electronics applications.

This diode from STMicroelectronics is a reliable option for users seeking efficient power switching components suitable for a variety of electronic systems including power supplies, industrial machinery, and advanced semiconductor device manufacturing.
