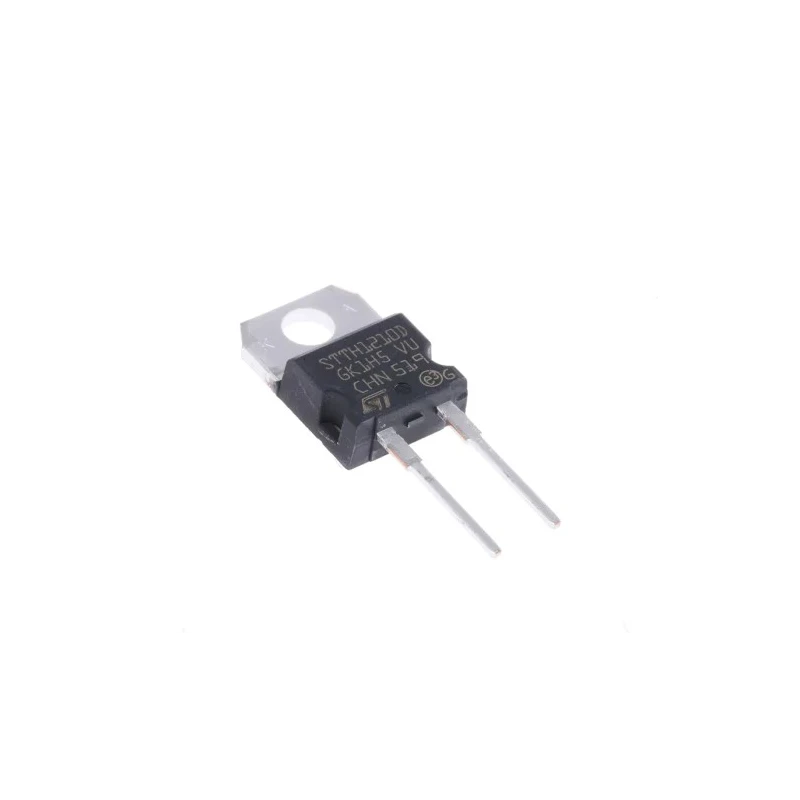

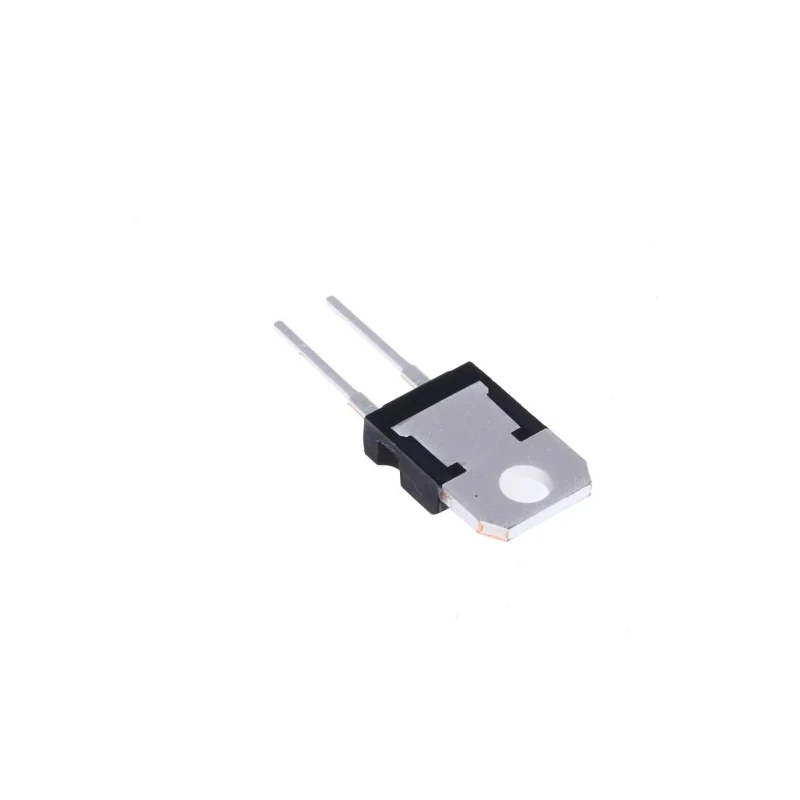

STMicroelectronics 1 kV 12 A Switching Diode 2-Pin TO-220AC STTH1210D

STMicroelectronics STTH1210D is a single diode specifically designed for switching applications with a peak reverse repetitive voltage of 1 kV and a maximum continuous forward current rating of 12 A. It comes in a TO-220AC package that offers reliable through-hole mounting, making it suitable for industrial and power electronics designs.

This diode delivers efficient switching performance characterized by its fast peak reverse recovery time of 48 nanoseconds, which enables rapid transitions essential for reducing losses in high-frequency switching circuits. Its maximum forward voltage drop of 2 volts ensures lower power dissipation and improved efficiency in rectification tasks.

STTH1210D is engineered to operate over a broad temperature spectrum ranging from -65°C up to 175°C, making it appropriate for demanding industrial environments and applications such as power supplies, inverters, and motor drives. The device's single diode configuration and 2-pin layout simplify circuit integration and design flexibility.

The device also features a peak non-repetitive forward surge current of 80 amperes, which provides robustness against transient surges and load spikes, helping to safeguard the electronic systems. Compliant with RoHS directives, this diode ensures adherence to environmental standards, supporting sustainable manufacturing and disposal.

Dimensional details include a compact 4.6 mm width, 9.3 mm height, and 10.4 mm length package with a 3.75 mm pin diameter, making it well-suited for space-constrained printed circuit board layouts.

Applications for the STTH1210D diode span across industrial automation, power electronics, HVAC systems, and manufacturing equipment. Designers and engineers can rely on its switching capabilities for efficient power rectification and protection roles.

Set contains 1 diode in TO-220AC package supplied in tube packaging ready for insertion into machinery, improving assembly efficiency and throughput. Explore more in the Diodes category at EnvMart for wide selections of semiconductor components from leading manufacturers.

Provides a maximum continuous forward current of 12 A to handle moderate power levels. Peak reverse repetitive voltage rating is 1 kV ensuring robust voltage tolerance. Features a fast peak reverse recovery time of 48 ns enabling efficient high-speed switching.

Operates reliably over a wide temperature range from -65°C to 175°C for industrial environments. Single diode configuration suitable for rectifier and switching uses in electronic circuits. Encapsulated in a durable TO-220AC through-hole mount package for easy PCB integration.

Maximum forward voltage drop of 2 V reduces conduction losses during operation. Peak non-repetitive forward surge current of 80 A supports transient power spikes safely. Complies with RoHS for environmental and health safety compliance.

Dimensions include a width of 4.6 mm, height of 9.3 mm, and length of 10.4 mm for compact footprint. EnvMart provides a comprehensive range of STMicroelectronics semiconductor components designed for diverse industrial and electronic applications.
