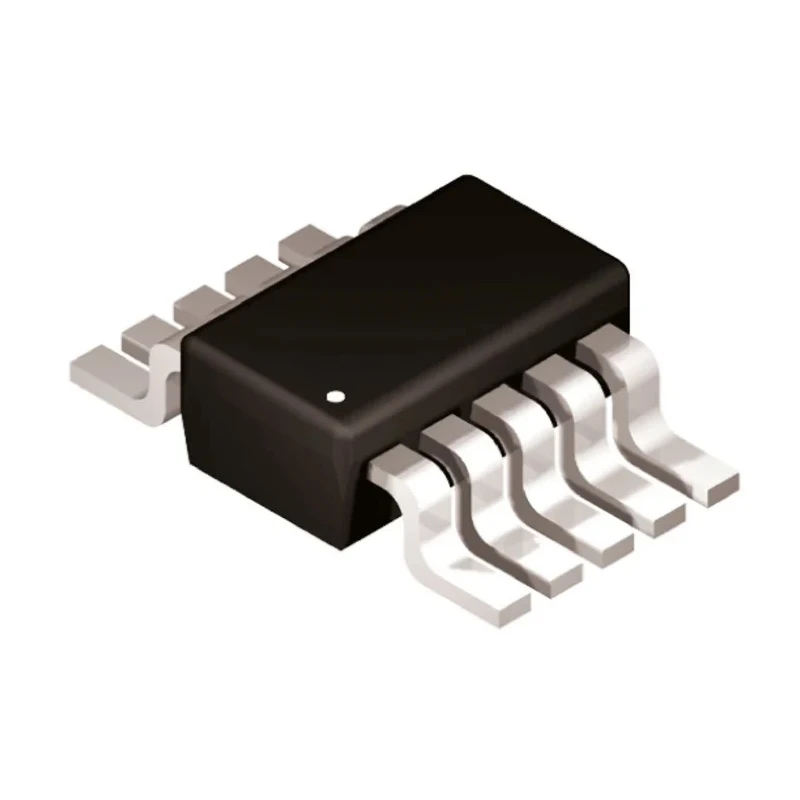

Maxim Integrated Logic Level Translator Bi-Directional 2 Elements, 10-Pin μMAX MAX9376EUB+

Maxim Integrated MAX9376EUB+ is a high-performance bi-directional logic level translator IC designed for translating between LVPECL (Low Voltage Positive Emitter Coupled Logic) and LVDS (Low Voltage Differential Signaling) logic families. The device is packaged in a 10-pin μMAX surface mount package, providing a compact solution suitable for space-constrained electronic designs.

The IC includes two elements per chip, enabling concurrent logic level translation for multiple signals. It supports a supply voltage range from 3V to 3.6V, ensuring compatibility with a broad range of power supply configurations. The maximum propagation delay at a load capacitance is just 600 picoseconds, which facilitates high-speed signal transmission with minimal latency.

This product operates effectively in harsh environments with an operating temperature range from -40°C to 85°C. Electrical characteristics include a maximum high level output current of 100mA and a maximum low level output current of 3.5mA, making it suitable for driving various downstream components.

The chip’s compact physical dimensions of 3 mm in length and 950 μm in height enable its application in dense circuit board layouts typically found in industrial, laboratory, communication equipment, and manufacturing systems. The logic function translator efficiently converts signals from LVPECL to LVDS and vice versa, supporting reliable interfacing between disparate logic standards.

Bi-directional logic level translation supporting LVPECL and LVDS. Surface mount 10-pin μMAX package for easy PCB integration. Two translator elements per chip for multiple signal translation. Voltage supply from 3V minimum to 3.6V maximum.

600 picoseconds maximum propagation delay at specified load. Operating temperature from -40°C to 85°C ensures reliability in diverse environments. Output currents optimized for signal integrity and downstream interfacing.

Compact size suitable for space-limited circuit designs. Manufactured in the United States maintaining quality standards. Widely applicable in semiconductor, industrial electronics, and communication sectors.

This Maxim Integrated logic level translator is an essential component for bridging different logic families in modern electronics, ensuring signal integrity and protocol compatibility across systems. Its performance and package type allow designers to implement high-speed, reliable translation in compact form factors.
