STMicroelectronics 1 kV 12 A Switching Diode Single 2-Pin TO-220AC STTH1210D

Free Delivery in India | Lowest Global Shipping Charges

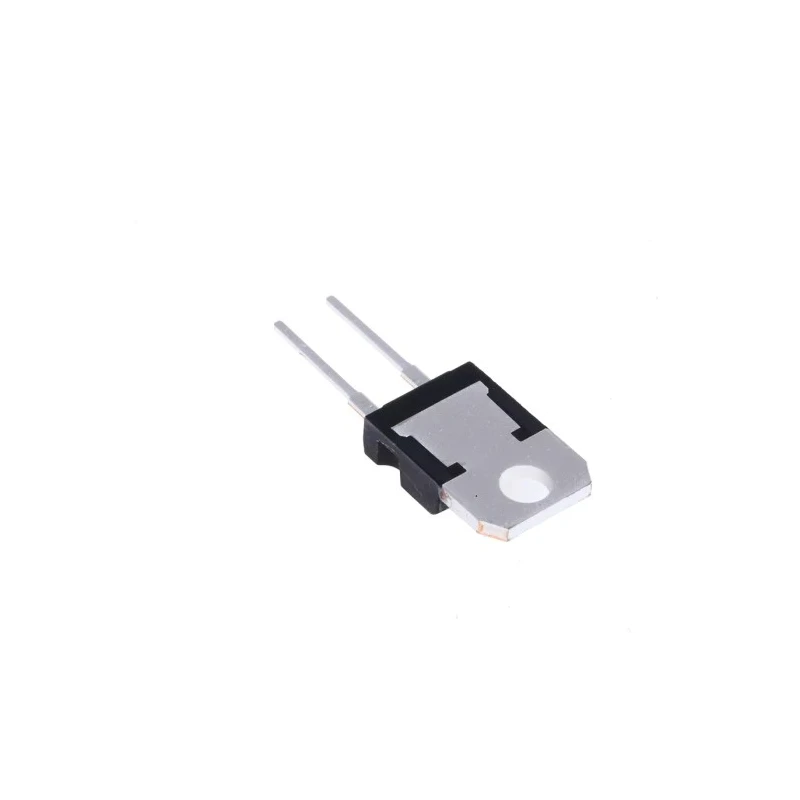

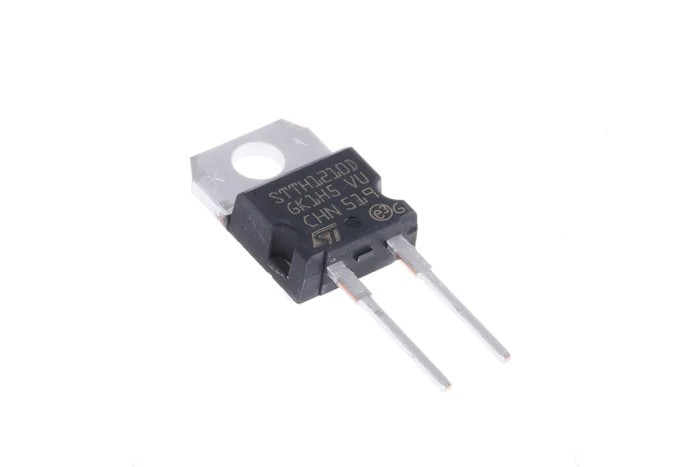

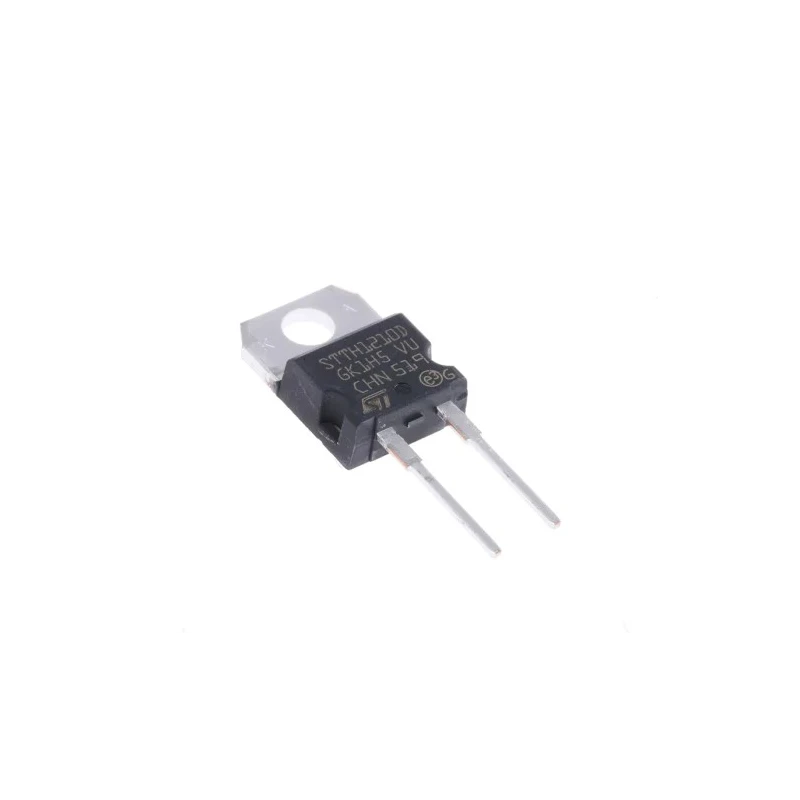

STMicroelectronics 1 kV 12 A Switching Diode Single 2-Pin TO-220AC STTH1210D

Name: STMicroelectronics 1 kV 12 A Switching Diode Single 2-Pin TO-220AC STTH1210D
Brand: STMicroelectronics
SKU: 211870
Price: 1.65 USD
Availability: InStock



Category Semiconductors Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Diameter	3.75mm
Brand	STMicroelectronics
Height	9.3mm
Length	10.4mm
Model	STTH1210D
Width	4.6mm
Mount Type	Through Hole
Series	STTH1210
Maximum Operating Temperature	175°C
Package Type	TO-220AC
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Maximum Continuous Forward Current If	12A
Peak Reverse Repetitive Voltage Vrrm	1kV
Diode Configuration	Single
Rectifier Type	Switching
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	80A
Maximum Forward Voltage Vf	2V
Peak Reverse Recovery Time trr	48ns
Infineon Silicon Diode, Single, 7.5 A, 2-Pin 650 V TO-220 IDV15E65D2XKSA1Brand	Infineon

Key Features

Rated maximum continuous forward current of 12 A for high power capability.
Peak reverse repetitive voltage of 1 kV ensures robust voltage handling.
Fast recovery time of 48 ns suitable for efficient switching circuits.
Compact TO-220AC package with 2-pin configuration for easy through-hole mounting.
Operating temperature range from -65°C up to 175°C for industrial environments.
Low peak reverse current of 10 μA minimizes leakage and power loss.
Maximum forward voltage of 2 V during conduction.
Compliant with RoHS environmental standards.

Product Description

STMicroelectronics STTH1210D is a high-performance single switching diode housed in a TO-220AC package, capable of handling a maximum continuous forward current of 12 A and a peak reverse repetitive voltage of 1 kV. This diode is engineered for reliable switching operations with a peak reverse recovery time of just 48 nanoseconds, making it suitable for efficient power electronics applications.

The TO-220AC 2-pin through-hole mounting package provides robust mechanical stability and cooling paths, facilitating usage in industrial and commercial environments requiring high voltage and current levels. The device supports a wide operating temperature range from -65°C to 175°C, allowing dependable operation under harsh thermal conditions.

Low peak reverse current of 10 microamperes reduces leakage, improving overall efficiency in rectifier and switching circuits. The maximum forward voltage drop of 2 volts ensures minimal conduction loss during operation. Moreover, the diode is RoHS compliant, aligning with environmental and sustainability requirements.

With compact dimensions (length 10.4 mm, width 4.6 mm, height 9.3 mm, diameter 3.75 mm), this diode fits well in space-constrained PCB layouts, especially for power supply, automotive electronics, and industrial control systems.

Rated maximum continuous forward current of 12 A for high power capability. Peak reverse repetitive voltage of 1 kV ensures robust voltage handling. Fast recovery time of 48 ns suitable for efficient switching circuits. Compact TO-220AC package with 2-pin configuration for easy through-hole mounting.

Operating temperature range from -65°C up to 175°C for industrial environments. Low peak reverse current of 10 μA minimizes leakage and power loss. Maximum forward voltage of 2 V during conduction. Compliant with RoHS environmental standards.

Suitable for industrial, laboratory, and power management applications. Explore the full range of semiconductor diodes and rectifiers from STMicroelectronics in the EnvMart Electronics & Electricals category for reliable power and switching solutions.
