Vishay High Current Bridge Rectifier 600 V 400 A 4-Pin Single GBPC3506-E4/51

Free Delivery in India | Lowest Global Shipping Charges

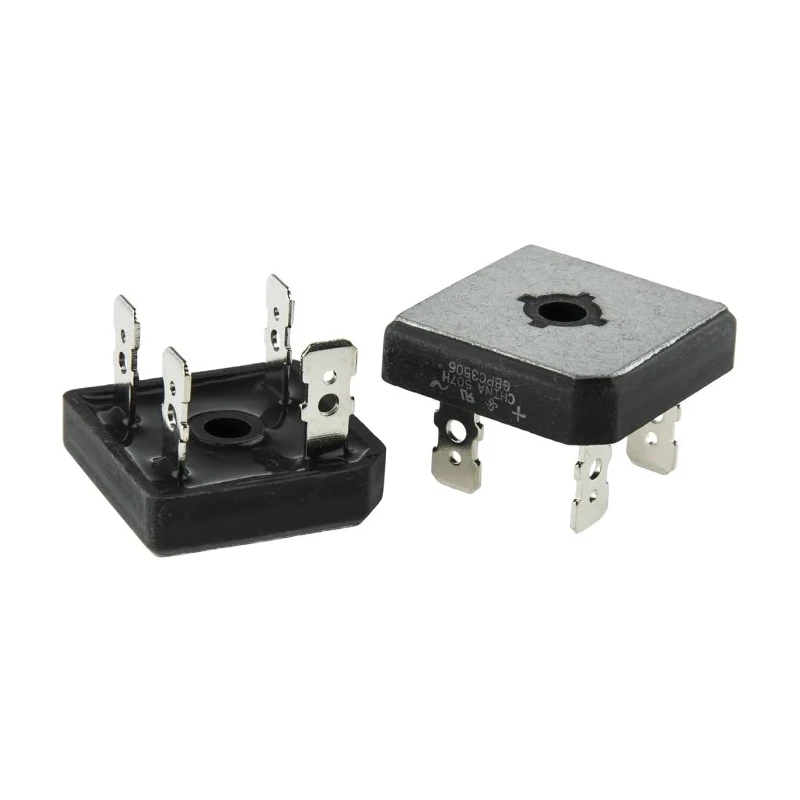

Vishay High Current Bridge Rectifier 600 V 400 A 4-Pin Single GBPC3506-E4/51

Name: Vishay High Current Bridge Rectifier 600 V 400 A 4-Pin Single GBPC3506-E4/51
Brand: Vishay
SKU: 94743



Category Bridge Rectifier Module Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	7.62mm
Length	28.8mm
Model	GBPC3506-E4/51
Width	28.8mm
Mount Type	Screw
Series	GBPC35
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBPC
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	600V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	400A
Forward Current If	35A
Peak Forward Voltage Vf	1.1V
Universal, 3-way terminals	Push-on, wrap around or solder

Key Features

Capable of peak reverse repetitive voltage up to 600 V.
Provides forward current of 35 A with a peak surge current of 400 A.
Features 4 pins and a single-phase diode configuration.
Operates within temperature range from -55°C to 150°C.
Compact dimensions of 28.8 mm length and width, and 7.62 mm height.
Incorporates universal 3-way terminals supporting push-on, wrap around, or solder mounting.
Low forward voltage drop of 1.1 V ensures efficient performance.
Extremely low peak reverse current leakage at 5 μA.

Product Description

Vishay GBPC3506-E4/51 Bridge Rectifier is a high current semiconductor device designed for converting alternating current (AC) to direct current (DC) through full-wave rectification. It supports a peak reverse repetitive voltage of 600 V and a forward current of 35 A, making it suitable for industrial and laboratory power conversion needs.

The device features a screw mount type and comes in a GBPC package with four pins arranged for single-phase operation. Its robust design enables operation in extreme temperature conditions, ranging from -55°C minimum to a maximum of 150°C.

With compact mechanical dimensions of 28.8 mm length and width and a height of 7.62 mm, this bridge rectifier is adaptable to various electronic circuits and assemblies, while its universal 3-way terminals allow flexible connection methods: push-on, wrap around, or solder.

Other electrical characteristics include a peak non-repetitive forward surge current of 400 A and a peak forward voltage of only 1.1 V, ensuring efficient energy conversion with minimal losses. The device also exhibits a very low peak reverse current of 5 μA, enhancing overall reliability.

Capable of peak reverse repetitive voltage up to 600 V. Forward current rating of 35 A supports high power applications. Peak surge current of 400 A for transient conditions. Single-phase, 4-pin configuration with screw mount.

Compatible with push-on, wrap around, or solder terminal connections. Compact dimensions for convenient PCB integration. Wide operating temperature range from -55°C to 150°C. Low forward voltage drop of 1.1 V for efficiency.

Minimal leakage current of 5 μA for enhanced performance.

This bridge rectifier is ideal for use in power supplies, industrial machinery, HVAC systems, and manufacturing equipment where reliable AC to DC conversion is critical. Vishay’s GBPC35 series combines robust performance with compact sizing.

Environmentally compliant with RoHS standards and produced under stringent quality controls, this product is manufactured in China to meet global industrial requirements. Explore more in the Electronics & Electricals category for semiconductors and discrete semiconductor solutions.
