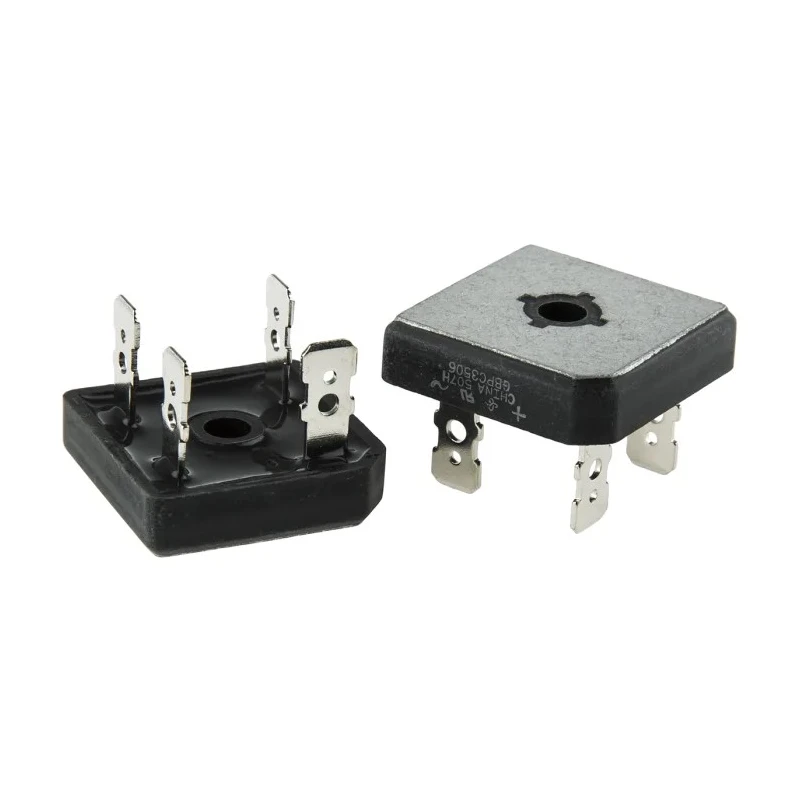

Vishay Bridge Rectifier 600 V 400 A 4-Pin Single GBPC3506-E4/51

Vishay GBPC3506-E4/51 Bridge Rectifier 600 V 400 A 4-Pin Single is engineered to convert alternating current (AC) input to direct current (DC) output with full-wave rectification, ensuring consistent polarity output regardless of input polarity. It is part of the GBPC35 series designed for high current applications with a forward current capacity of 35 A and a peak surge current of 400 A.

The device mounts securely via screw terminals and offers versatile 3-way terminal connectivity options including push-on, wrap around, or solder, providing installation flexibility. It operates effectively within a wide temperature range from -55°C minimum to 150°C maximum, ensuring reliability under harsh conditions.

Its compact package measuring 28.8 mm by 28.8 mm with a height of 7.62 mm allows for space-efficient electronic assemblies. The bridge rectifier features a low forward voltage drop of 1.1 V and a minimal peak reverse current of 5 μA, contributing to its efficiency and reduced power loss.

Designed with a glass passivated chip junction, it offers enhanced durability and long-term stability for industrial and commercial applications. It is ideal for use in power supplies, motor drives, inverters, and various control systems requiring reliable full-wave rectification at voltages up to 600 V.

This product is new, made by Vishay, and conforms to stringent performance standards, though it does not carry specific approval certifications such as automotive standards. Its robust design makes it suitable for electronics, industrial manufacturing, HVAC systems, and laboratory equipment.

This bridge rectifier supports a peak reverse repetitive voltage of 600 V. It features a forward current rating of 35 A and a peak surge current of 400 A. The device operates reliably within a temperature range of -55°C to 150°C.

Includes 4 pins with a screw mount type for secure installation. Compact package dimensions of 28.8 mm length, 28.8 mm width, and 7.62 mm height. Constructed with a low forward voltage drop of 1.1 V and low peak reverse current of 5 μA.

Universal 3-way terminal options: push-on, wrap around, or solder. Designed for single-phase bridge rectification with glass passivated chip junction for durability. Ideal for industrial electronics requiring high reliability and thermal performance.
