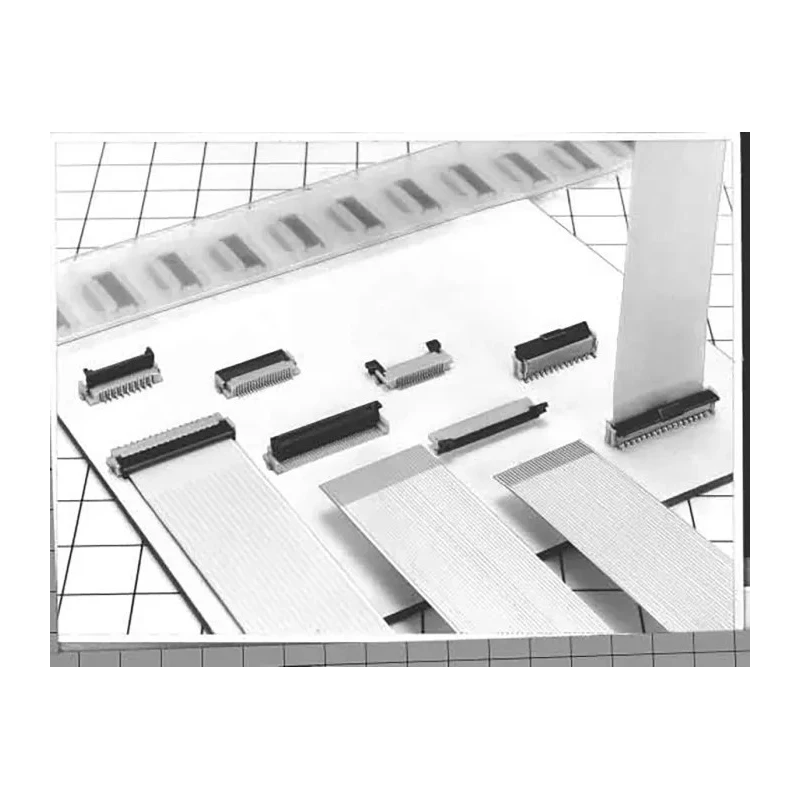

Hirose 0.5 mm Pitch 26 Way Straight Female FPC Connector, Surface Mount, ZIF, 500mA, Gold Plated Contacts FH12
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Hirose |
| Orientation | Straight |
| Current | 500mA |
| Model | FH12 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | FH12 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Vertical |
Key Features
- Features 26 contacts for high-density connections.
- 0.5 mm pitch allows compact PCB designs.
- Straight female configuration with vertical contact position.
- Surface mount termination for modern automated PCB assembly.
- Zero Insertion Force (ZIF) mechanism ensures secure and reliable engagement.
- Gold plated phosphor bronze contacts for enhanced conductivity and durability.
- Rated for 500mA current handling with 50V operating voltage.
- Operating temperature range from -40°C to 85°C, suitable for demanding environments.
Product Description
The Hirose FH12-26S-0.5SVA(54) is a 0.5 mm pitch, 26-way straight female FPC connector engineered for reliable connections in compact electronic assemblies. This model incorporates a zero insertion force (ZIF) mechanism, simplifying installation and ensuring excellent retention and contact integrity. With surface mount termination, it is ideal for modern automated PCB manufacturing and compact layouts.
This connector features phosphor bronze contacts plated with gold for superior conductivity and durability, supporting high-density applications in industrial, consumer, and professional electronics. Rated for up to 500mA current and 50V operating voltage, it suits circuits requiring robust signal integrity.
The vertical contact position, straight orientation, and ZIF locking ensure clear tactile feedback during engagement and withdrawal, reducing damage risk to both the connector and the attached FPC. With a single row of 26 contacts and polyamide housing, the product withstands operating temperatures from -40°C to 85°C and is suitable for use in portable devices, instrumentation, and complex control systems.
Applications for this connector include PCB and wire housing, FPC/FFC integration, industrial controls, instrumentation, and consumer electronics demanding dense and reliable interconnections. Its reinforced actuator design improves usability and durability in repetitive mating cycles.
Industrial, laboratory, manufacturing, and commercial electronics environments benefit from this connector's high performance, ease of installation, and secure locking mechanism. Features 26 contacts for high-density connections.
0.5 mm pitch allows compact PCB designs. Straight female configuration with vertical contact position. Surface mount termination for modern automated PCB assembly. Zero Insertion Force (ZIF) mechanism ensures secure and reliable engagement.
Gold plated phosphor bronze contacts for enhanced conductivity and durability. Rated for 500mA current handling with 50V operating voltage. Operating temperature range from -40°C to 85°C, suitable for demanding environments.
Polyamide housing for enhanced structural stability. Designed for FPC/FFC applications, reinforced actuator improves usability. Browse more PCB Connectors from Hirose and similar categories for advanced interconnection solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current handling capacity of 500mA.
It supports an operating voltage of 50V.
The connector features a pitch size of 0.5 mm, allowing for compact PCB designs.
This connector utilizes surface mount termination, suitable for modern automated PCB assembly.
The contacts are made of phosphor bronze and are gold plated for enhanced conductivity.
It operates effectively within a temperature range of -40°C to 85°C.
This model features 26 contacts, designed for high-density connections.
The connector has a straight orientation with a vertical contact position.
It incorporates a Zero Insertion Force (ZIF) mechanism for secure and reliable engagement.
The housing is made of polyamide, providing enhanced structural stability.
This connector is suitable for PCB and wire housing, FPC/FFC integration, and various electronic applications.
The connector is a female type, designed for compatibility with corresponding male connectors.
