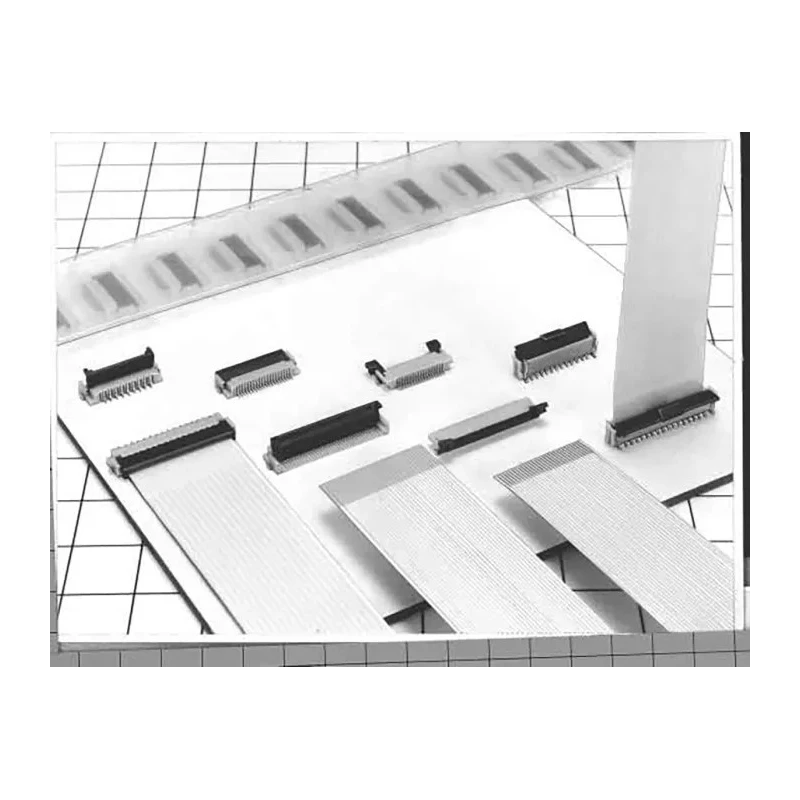

Hirose 0.5 mm Pitch 20 Way Straight Female FPC Connector, Solder FH12

Hirose FH12 model 0.5 mm pitch 20 way straight female FPC connector provides a high density, reliable connection solution for electronic component assemblies. It is specifically designed as a surface mount connector with solder termination and vertical contact positioning. The connector utilizes a phosphor bronze contact material, plated with gold to ensure excellent conductivity and corrosion resistance.

The connector features a rotating one-touch Zero Insertion Force (ZIF) mechanism, giving tactile feedback during insertion to prevent damage to delicate FPC cables. It supports currents up to 500 mA and voltage ratings of 50V AC, making it well suited for varied electronic applications.

Built with a durable polyamide housing, the connector maintains integrity across a wide operating temperature range from -40°C to 85°C. Its locking mechanism secures the FPC firmly in place, providing consistent contact and preventing disconnections due to vibration or movement.

Ideal for industrial, manufacturing, electronics assembly, and laboratory instrumentation where precision and reliability are critical. The product is made in Japan, reflecting strict quality control and engineering standards.

This connector supports a 0.5 mm pitch with 20 contacts for high density connection. It features a one-touch rotating ZIF mechanism for easy insertion and removal. Constructed with phosphor bronze contacts plated in gold for durability and conductivity.

The housing is made of polyamide, offering a robust insulating structure. Operating temperature range is from -40°C to 85°C suitable for industrial applications. It supports a current rating of 500 mA and voltage up to 50V AC.

The locking mechanism ensures secure connections in vertical, straight orientation. Manufactured in Japan, assuring high-quality standards and reliability.
