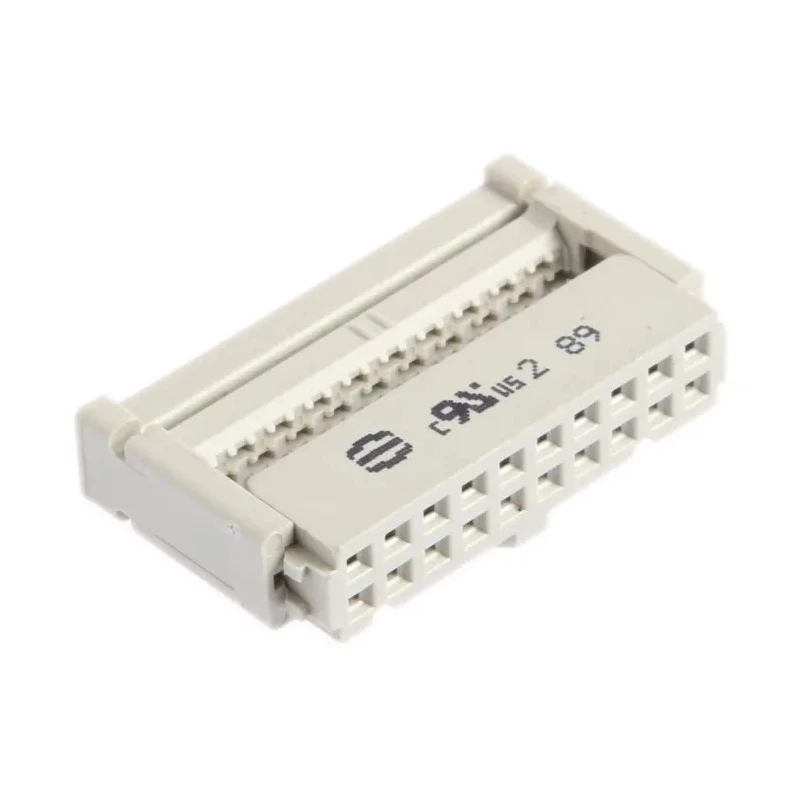

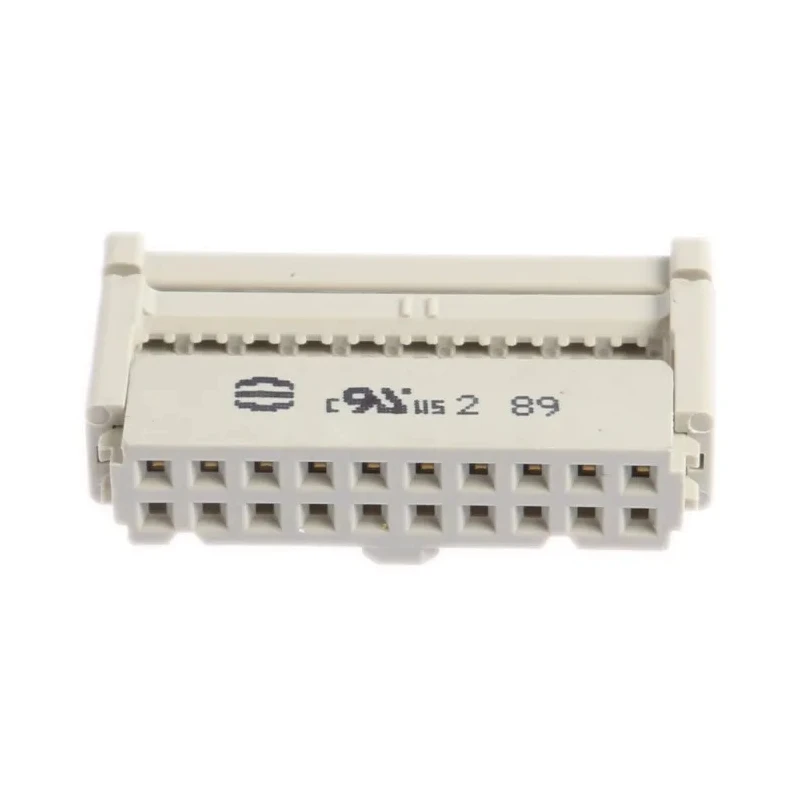

HARTING 20-Way IDC Connector Female for Cable, 2 Row, 2.5A, 320V AC, Gold Plating, SEK 18 Series 09185206813
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 320V ac |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 2.5A |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 18 |
| Termination Type | IDC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| HARTING 20-Way IDC Connector Female for Cable, 2 RowBrand | HARTING |
| TE Connectivity 20-Way IDC Connector Female for Cable, 2 RowBrand | TE Connectivity |
Key Features
- Features 20 contacts arranged in 2 rows for secure cable interfacing.
- Gold-plated contacts ensure excellent conductivity and corrosion resistance.
- Rated for up to 2.5 amperes current and 320 volts AC operating voltage.
- Durable housing made from Polybutylene Terephthalate supports robust usage.
- Designed for cable mount with right-angle orientation for space-saving installation.
- Operates reliably between -55°C and 125°C temperature range.
- Contacts crafted from copper alloy for optimal electrical performance.
- Termination by Insulation Displacement Contact (IDC) method for ease of wiring.
Product Description
HARTING 09185206813 is a 20-way IDC connector female connector designed for cable mounting with a 2-row configuration. It offers a robust current capacity of 2.5A and supports a voltage rating of 320V AC, making it suitable for various electronic and industrial applications requiring reliable interconnections.
The connector features gold-plated contacts that enhance electrical conductivity and improve corrosion resistance, ensuring extended operational life in challenging environments. Its durable housing constructed from Polybutylene Terephthalate provides mechanical stability while maintaining insulation integrity.
This right-angle, shrouded connector is designed for IDC termination, allowing efficient and secure cable connections without the need for additional soldering. Its operational temperature range from -55°C to 125°C accommodates harsh industrial or laboratory conditions.
The connector meets several recognized standards including DIN41651 and IEC 603-13, confirming its compliance and suitability for international industrial and electronic use cases. The SEK 18 series designation facilitates its integration within compatible connector systems.
Applications include use in industrial control equipment, electronic device wiring, power and signal transmission, and other settings where dependable cable connections are critical. The compact design and mounting style aid in effective space management in assemblies and enclosures.
Features 20 contacts arranged in 2 rows for secure cable interfacing. Gold-plated contacts ensure excellent conductivity and corrosion resistance. Rated for up to 2.5 amperes current and 320 volts AC operating voltage. Durable housing made from Polybutylene Terephthalate supports robust usage.
Designed for cable mount with right-angle orientation for space-saving installation. Operates reliably between -55°C and 125°C temperature range. Contacts crafted from copper alloy for optimal electrical performance. Termination by Insulation Displacement Contact (IDC) method for ease of wiring.
Complies with industry standards including DIN41651 and IEC 603-13. Series identifier SEK 18 underlines compatibility in connector systems. Explore more IDC Connectors and electronic components at EnvMart to meet your industrial and electronic assembly requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a maximum current of 2.5 amperes.
It supports a voltage rating of 320 volts AC.
The housing is made from Polybutylene Terephthalate, and the contacts are crafted from copper alloy with gold plating.
It operates reliably between -55°C and 125°C.
This connector features 20 contacts arranged in 2 rows.
It uses the Insulation Displacement Contact (IDC) method for termination.
The connector is designed for right-angle orientation, facilitating space-saving installation.
It complies with several recognized standards including DIN41651 and IEC 603-13.
It is suitable for industrial control equipment, electronic device wiring, and power and signal transmission.
The pitch of the contacts is 2.54 mm.
The connector has female contacts.
The country of origin for this connector is India.
