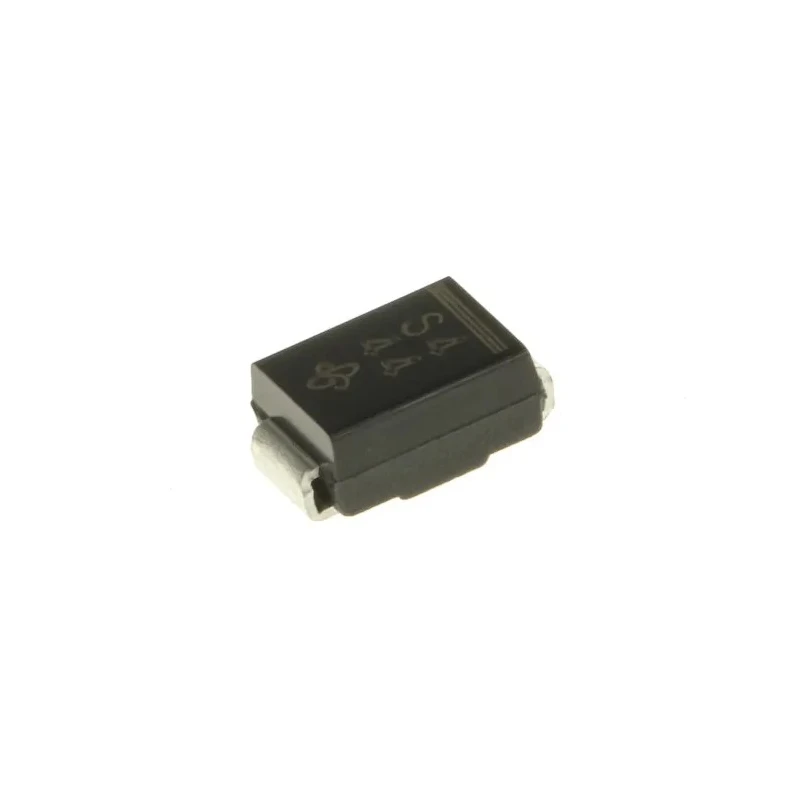

Vishay Schottky Diode 40 V 2 A Surface Mount DO-214AA Package SS24-E3/52T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Length | 4.7mm |
| Model | SS24-E3/52T |
| Width | 3.8mm |
| Mount Type | Surface |
| Series | SS24 |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 400μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 0.5V |
Key Features
- Features a DO-214AA compact package for surface mounting.
- Exhibits very low forward voltage drop of 0.5 V for efficient power conversion.
- Operates reliably between -65°C and 125°C temperature range.
- Suitable for fast switching applications with low power loss in electronic circuits.
- Has a peak non-repetitive forward surge current rating of 75 A.
- Comes with 2 pins and a single diode configuration for simple integration.
- Compact size with length of 4.7 mm and width of 3.8 mm supports dense PCB layouts.
- Designed for discrete semiconductor applications and power rectification uses.
Product Description
Vishay SS24-E3/52T Schottky Diode is a compact, high-efficiency rectifier diode designed for surface mount applications in electronic, power supply, and industrial circuits. It supports a maximum continuous forward current of 2 A and can withstand a peak repetitive reverse voltage of up to 40 V, making it ideal for switching and rectification tasks.
The diode features a DO-214AA package type that ensures easy surface mounting on printed circuit boards with a small footprint, allowing high-density assembly. The forward voltage drop is as low as 0.5 V, which minimizes conduction losses and improves overall circuit efficiency.
Operating temperature ranges from -65°C to 125°C, providing robust performance in industrial and commercial environments. The device supports a peak non-repetitive forward surge current rating of 75 A, offering protection against transient current spikes during operation.
This Schottky diode is commonly used in power supplies, voltage clamping, reverse polarity protection, and other applications requiring fast switching and low forward voltage drops. Its single diode configuration with 2 pins facilitates straightforward circuit design and integration.
DO-214AA surface mount package for space-saving layouts. Low forward voltage drop reduces power loss. High surge current capability enhances reliability. Wide operating temperature range ensures versatile use. Single diode, 2-pin configuration suitable for various circuits.
Compact dimensions of 4.7 mm length and 3.8 mm width. Ideal for power rectification and fast switching applications. Applications include industrial electronics, power supplies, automotive electronics, and general electronic design tasks requiring efficient and reliable Schottky rectifiers.
Explore the broader category of Schottky Diodes & Rectifiers on EnvMart for complementary components and advanced semiconductor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay SS24-E3/52T Schottky diode is 2 A.
This model can withstand a peak reverse repetitive voltage of up to 40 V.
The diode has a length of 4.7 mm and a width of 3.8 mm, making it suitable for dense PCB layouts.
The maximum forward voltage drop for the SS24-E3/52T is 0.5 V, which helps reduce conduction losses.
It operates reliably within a temperature range of -65°C to 125°C.
The diode has a peak non-repetitive forward surge current rating of 75 A.
This model features a single diode configuration with 2 pins for easy integration into circuits.
The Vishay SS24-E3/52T is designed for surface mounting on printed circuit boards.
It is suitable for applications such as power supplies, voltage clamping, and reverse polarity protection.
The peak reverse current for the SS24-E3/52T is rated at 400 μA.
This diode belongs to the SS24 series, which is known for high-efficiency rectification.
The Vishay SS24-E3/52T is manufactured in India.
