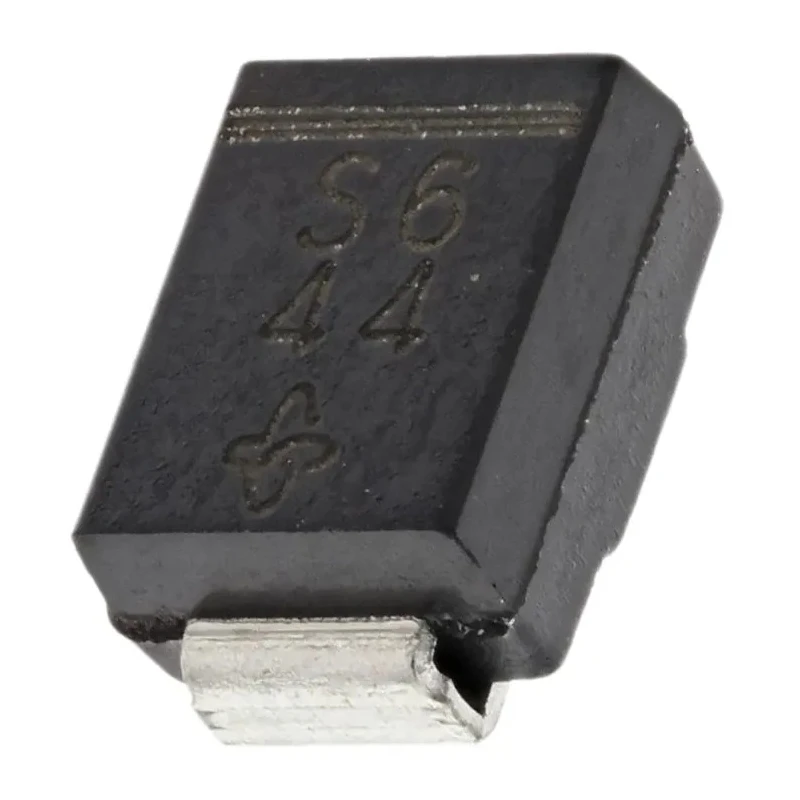

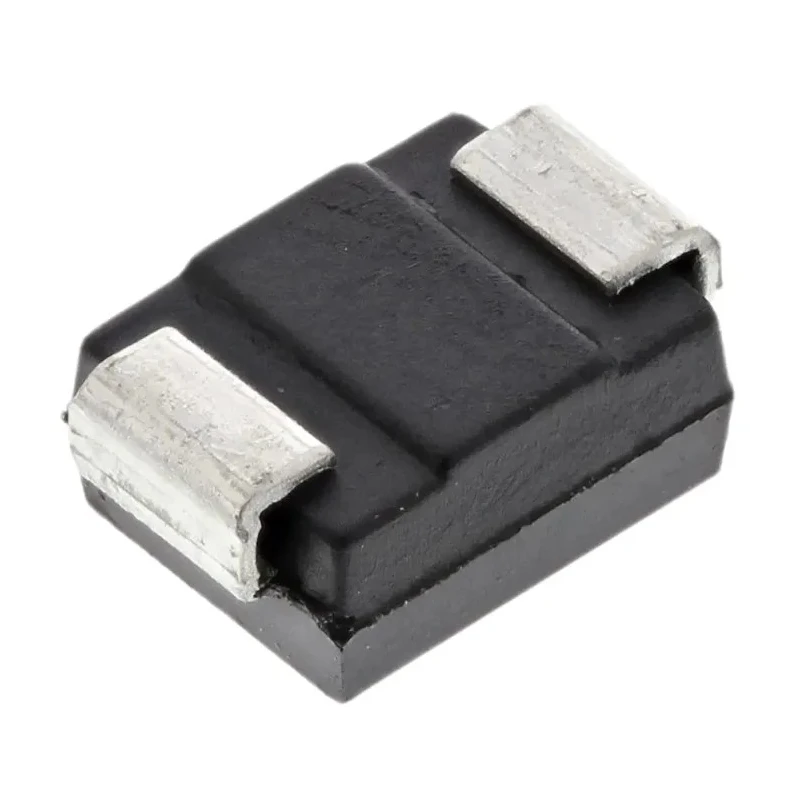

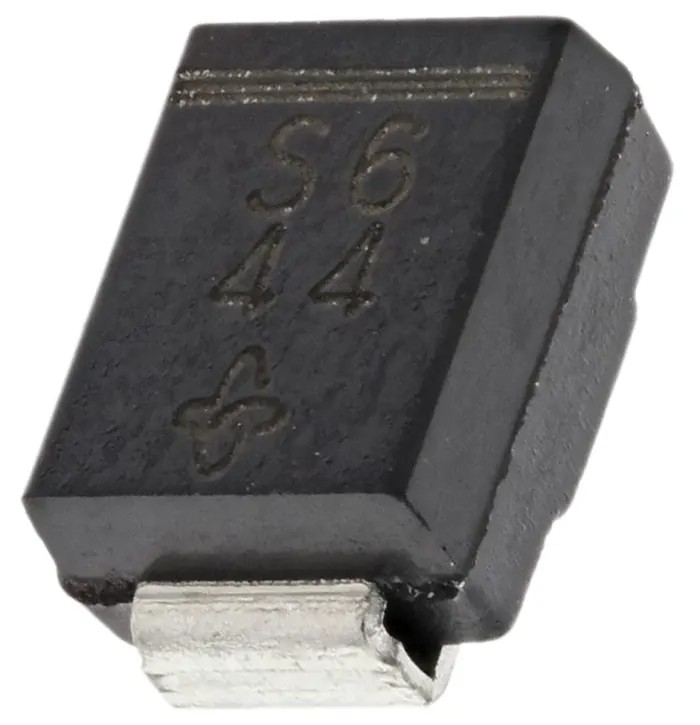

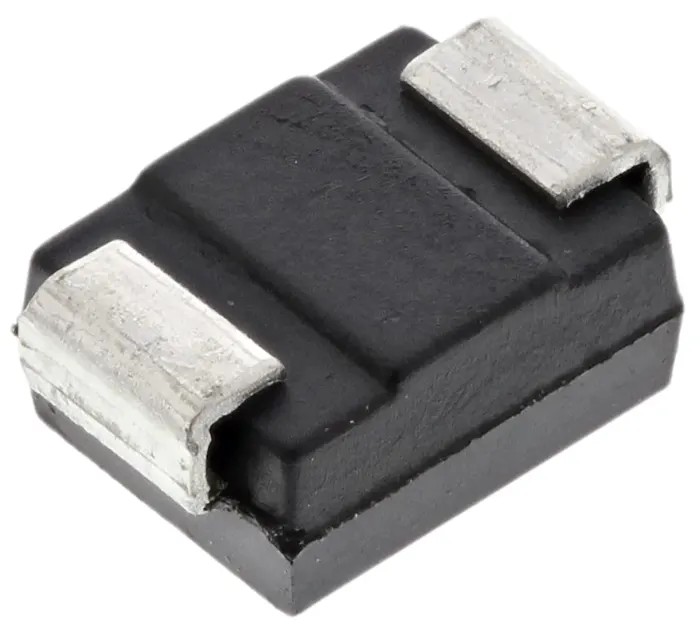

Vishay Schottky Diode 60 V 2 A Surface Mount DO-214AA Package SS26-E3/52T
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Length | 4.7mm |
| Model | SS26-E3/52T |
| Width | 3.8mm |
| Mount Type | Surface |
| Series | SS26 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 400μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 0.7V |
Key Features
- This diode has a maximum continuous forward current of 2 A suitable for low voltage, high current applications.
- The peak reverse repetitive voltage rating is 60 V ensuring reliable blocking capability.
- Low forward voltage drop of 0.7 V reduces power loss and improves efficiency.
- Peak non-repetitive forward surge current is 75 A for transient conditions.
- The device operates between -65°C to 150°C ambient temperature range.
- Compact dimensions with 4.7 mm length and 3.8 mm width allow space-efficient PCB designs.
- Mount type is surface mount for automated assembly compatibility.
- Pin count is 2, configured as a single diode.
Product Description
Vishay SS26-E3/52T is a high performance Schottky diode offered in a surface mount DO-214AA package. It features a continuous forward current of 2 A and a peak reverse voltage of 60 V suitable for power rectification in electronic circuits.
These Schottky rectifiers allow very fast switching and exhibit low forward voltage drop of 0.7 V, which results in increased efficiency and reduced heat dissipation. The diode supports peak non-repetitive forward surge currents of up to 75 A, making it robust against transient surges commonly encountered in power electronics.
The diode's operating temperature range from -65°C to 150°C ensures reliability in harsh industrial and commercial environments. Its compact form factor with dimensions of 4.7 mm length and 3.8 mm width allows for dense PCB layouts and automated assembly via surface mount technology.
This component is ideal for use in power supplies, voltage clamping, and rectification applications across industrial, commercial, and electronic device manufacturing sectors. Maximum continuous forward current: 2 A. Peak reverse repetitive voltage: 60 V.
Forward voltage drop: 0.7 V. Peak surge current: 75 A. Operating temperature: -65°C to 150°C. Surface mount DO-214AA package. Low reverse leakage current of 400 μA. Single diode configuration with 2 pins. Compact dimensions suitable for automated PCB assembly.
Choose Vishay SS26-E3/52T Schottky diode for efficient, reliable power rectification in diverse electronic applications. Explore more semiconductor components and Schottky diodes in the Electronics & Electricals category at EnvMart for your industrial and commercial projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay SS26-E3/52T Schottky diode is 2 A.
This model has a peak reverse repetitive voltage rating of 60 V, ensuring reliable blocking capability.
The forward voltage drop for the Vishay SS26-E3/52T is 0.7 V, which helps reduce power loss and improve efficiency.
It supports a peak non-repetitive forward surge current of up to 75 A, making it robust against transient conditions.
The diode operates within an ambient temperature range of -65°C to 150°C, ensuring reliability in various environments.
The Vishay SS26-E3/52T has compact dimensions of 4.7 mm in length and 3.8 mm in width, suitable for space-efficient PCB designs.
This diode is designed for surface mount, making it compatible with automated assembly processes.
The Vishay SS26-E3/52T features a single diode configuration with 2 pins.
The maximum reverse leakage current for this diode is 400 μA.
The diode is packaged in a DO-214AA format, which is suitable for surface mount applications.
The Vishay SS26-E3/52T is classified as a Schottky rectifier, known for its fast switching capabilities and low forward voltage drop.
This diode is suitable for applications such as power supplies, voltage clamping, and rectification in various electronic circuits.
