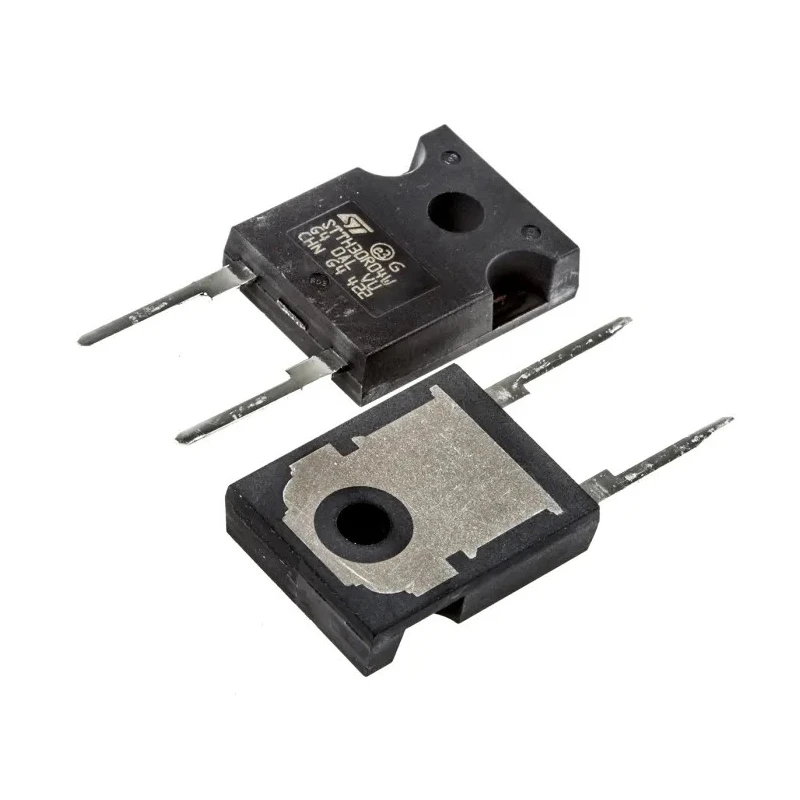

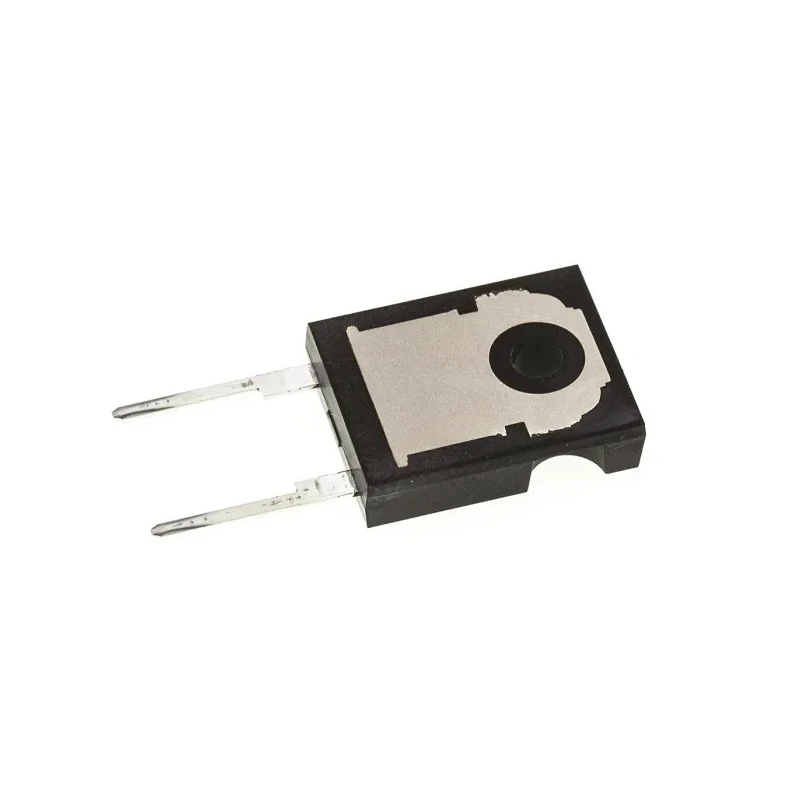

STMicroelectronics 400 V 30 A Switching Diode, Through Hole DO-247 Package STTH30R04W
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.55mm |
| Brand | STMicroelectronics |
| Height | 20.15mm |
| Length | 15.75mm |
| Model | STTH30R04W |
| Width | 5.15mm |
| Mount Type | Through Hole |
| Series | STTH30R04 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-247 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 15μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 300A |
| Maximum Forward Voltage Vf | 1.45V |
| Peak Reverse Recovery Time trr | 100ns |
Key Features
- Maximum continuous forward current of 30 A for robust current handling.
- Peak reverse repetitive voltage rated at 400 V ensuring high voltage tolerance.
- Switching rectifier type with a single diode configuration.
- Low maximum forward voltage of 1.45 V promoting efficiency in circuits.
- Fast peak reverse recovery time of 100 ns reducing switching losses.
- Operates reliably from -40°C up to a maximum of 175°C.
- Through hole mount type with DO-247 package for easy PCB assembly.
- Peak non-repetitive forward surge current of 300 A for transient current tolerance.
Product Description
STMicroelectronics STTH30R04W is a switching diode with a maximum continuous forward current of 30 A and a peak reverse repetitive voltage of 400 V. Packaged in a through hole DO-247 format, it is suitable for applications requiring efficient rectification and fast switching performance.
The diode features a low maximum forward voltage of 1.45 V and a peak reverse recovery time of 100 ns which minimizes power loss and improves operational efficiency. It can operate in a wide temperature range from -40°C to 175°C, making it suitable for demanding industrial environments.
With a peak non-repetitive forward surge current of 300 A, the STTH30R04W diode can handle transient high current conditions reliably. It complies with RoHS standards, ensuring environmental safety and regulatory compliance.
Designed for through hole PCB mounting, the DO-247 package provides robust mechanical stability and ease of installation. Its compact dimensions (15.75 mm length, 20.15 mm height, 5.15 mm width, and 3.55 mm diameter) suit space-constrained electronic circuits.
Typical applications include power supplies, motor drives, and industrial switching circuits where efficient, high-current rectification is required. The diode's availability in multiple quantity packs supports volume production and stock replenishment.
Maximum continuous forward current of 30 A. Peak reverse repetitive voltage of 400 V. Single switching diode configuration. Low forward voltage of 1.45 V for efficiency. Fast reverse recovery time of 100 ns. Operating temperature range from -40°C to 175°C.
Through hole DO-247 package type. Peak forward surge current of 300 A. RoHS compliant. Compact dimensions suitable for PCB mounting. Explore more STMicroelectronics semiconductor and diode products in the Electronics & Electricals category at EnvMart for reliable industrial and electronic applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the STMicroelectronics STTH30R04W is 30 A.
This model has a peak reverse repetitive voltage rating of 400 V.
The maximum forward voltage of the STTH30R04W is 1.45 V.
It can handle a peak non-repetitive forward surge current of 300 A.
The operating temperature range is from -40°C to 175°C.
This diode is packaged in a through hole DO-247 format.
The peak reverse recovery time is 100 ns.
It has a pin count of 2.
The diameter of the STTH30R04W is 3.55 mm.
The dimensions are 15.75 mm in length, 20.15 mm in height, and 5.15 mm in width.
Yes, it complies with RoHS standards.
It features a single diode configuration.
