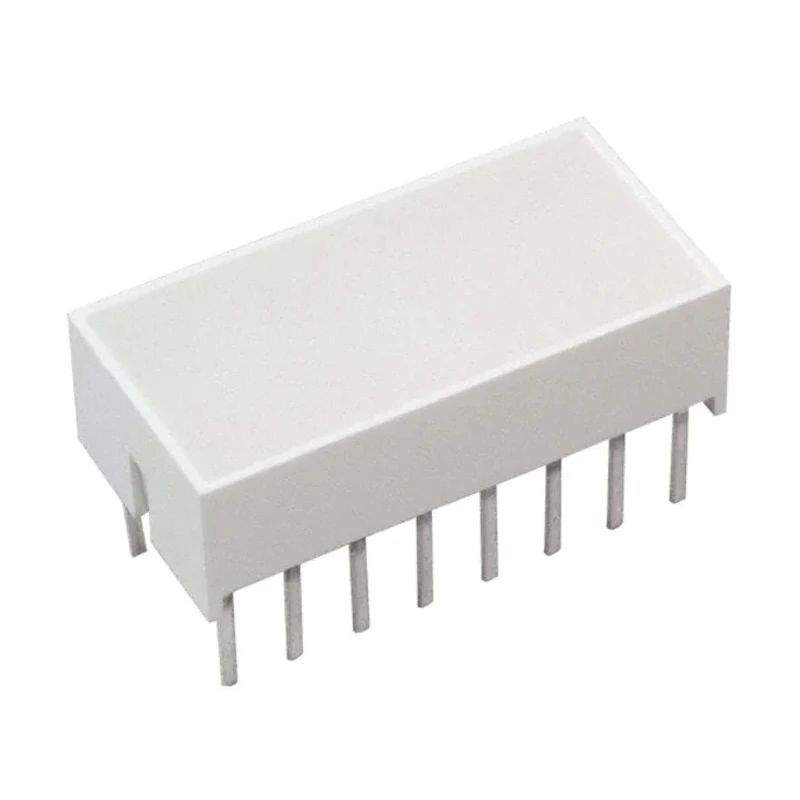

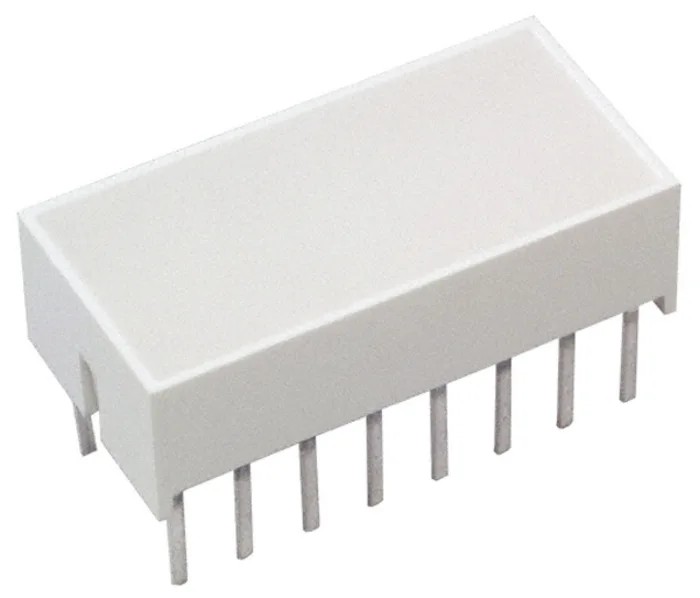

Broadcom Light Bar LED Display Red 80mcd 8.89 mm HLMP-2685

Broadcom HLMP-2685 Light Bar LED Display is a high-quality red LED module with a luminous intensity of 80 millicandela (mcd) and character height of 8.89 mm. It provides a bright and uniform light emitting area, suitable for telecommunications indicators, front panel status indicators, and bar graph displays in industrial and electronic applications.

The LED light bar features a rectangular light emitting surface (LES) with a single segment and a dominant wavelength of 626 nm, ensuring vivid red color output. The display character width measures 3.81 mm, giving excellent readability in compact spaces.

This LED module is designed for through-hole mounting and comes with physical dimensions of 10.2 mm width, 6.2 mm height, and 20.3 mm depth, making it fit well in various electronic assemblies. Operating temperature ranges from -40°C to 85°C, allowing for reliable performance in harsh environments.

Power dissipation is low at 78 mW, with a forward voltage of 2 V and a forward current of 20 mA, making it energy-efficient. The white-colored face offers good contrast against the red LED light for better visibility.

The HLMP-2685 is RoHS compliant, ensuring it meets environmental safety standards. Proper anti-static precautions are recommended during handling to maintain product integrity. Features a bright red LED with a dominant wavelength of 626 nm.

Character width is 3.81 mm for clear and precise display. Designed for through-hole mounting method. Compact external dimensions of 10.2 mm width, 6.2 mm height, and 20.3 mm depth. Operates reliably within -40°C to 85°C temperature range.

Consumes 78 mW power dissipation ensuring energy-efficient operation. Forward voltage rated at 2 V and forward current at 20 mA. The face color of the LED display is white for enhanced contrast.

This LED display module is ideal for applications in telecommunications, industrial instrumentation, HVAC systems, and other electronics requiring clear visual status indicators. Browse more LED Display products and accurate industrial components at EnvMart.
