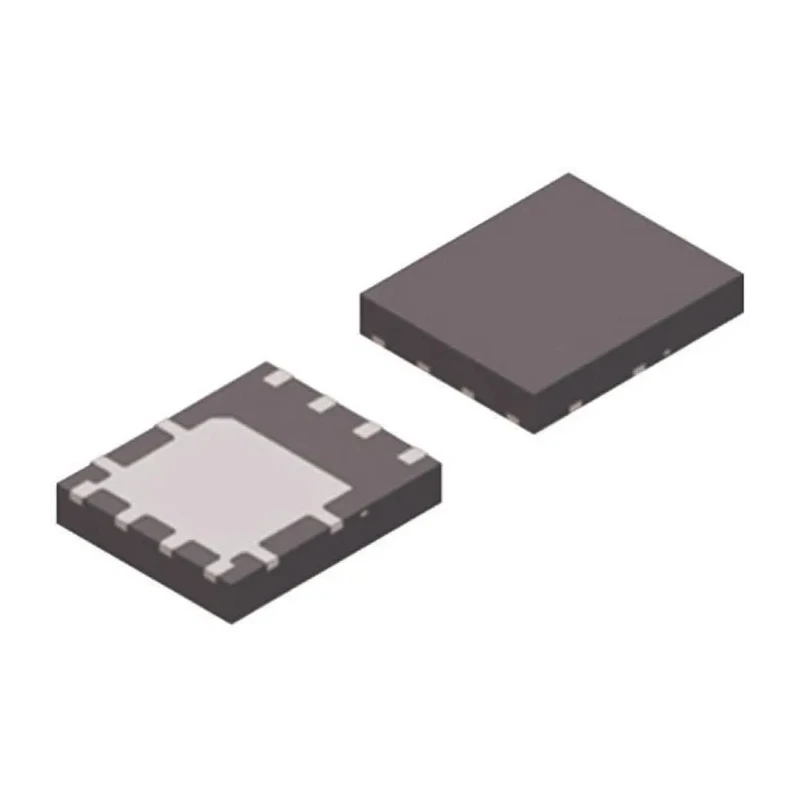

STMicroelectronics 100 V 30 A Surface Mount Schottky Diode PowerFLAT Package STPS30M100DJF-TR

STMicroelectronics STPS30M100DJF-TR is a high-performance Schottky diode designed for surface mounting with a PowerFLAT 8-pin package. Rated at 100 V peak reverse voltage and 30 A maximum continuous forward current, this component is engineered for efficient switching and rectification in electronic and industrial power systems.

Its low forward voltage drop of 960 mV contributes to reduced power losses and improved thermal management. The diode reliably operates over a wide temperature range from -65°C to 150°C, accommodating demanding environmental conditions.

The device's peak non-repetitive forward surge current capacity of 200 A provides robustness against transient overloads, while a peak reverse current of 40 mA ensures minimal leakage.

Compact physical dimensions (6.15 mm length, 5.2 mm width, 0.95 mm height) and 8 pins support versatile PCB assembly and space-optimized layouts. Although no specific automotive standards or approvals are listed, this diode is suitable for various industrial, power management, and electronic applications requiring fast switching and high efficiency.

This diode delivers a maximum continuous forward current of 30 A. It supports a peak reverse repetitive voltage of 100 V. The package type is PowerFLAT facilitating surface mount technology. The device is housed in an 8-pin package for compact installation.

Forward voltage drop is low at 960 mV to improve efficiency. Peak non-repetitive forward surge current rating of 200 A improves transient tolerance. The operating temperature range is wide, from -65°C to 150°C. Physical size measures 6.15 mm by 5.2 mm by 0.95 mm.

Peak reverse leakage current is restricted to 40 mA. No automotive standard certifications apply.

This STMicroelectronics diode is a reliable semiconductor component ideal for power rectification, switching circuits, and electronics manufacturing. It is commonly used in industrial equipment, power supplies, and electronic devices requiring efficient diode performance and surface mount compactness.
