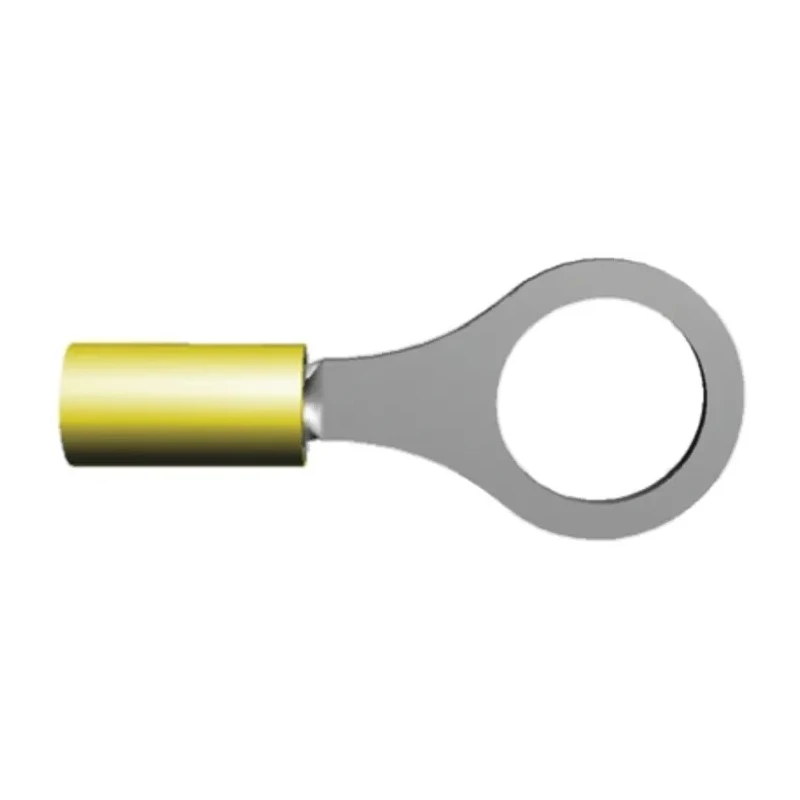

TE Connectivity PIDG Insulated Ring Terminal Yellow M12 Stud Size 52077
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 1.02mm |
| Model | 52077 |
| Insulation | Insulated |
| Overall Length | 35.91mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-7472Brand: TE ConnectivityManufacturers Part No.: 52077 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 0.715mm |
| Inner Ring Diameter | 0.515mm |
| Stud Size | M12 |
Key Features
- High conductivity copper body ensures efficient electrical connection.
- Copper sleeve enhances wire insulation support and prevents fraying.
- Serrated barrel offers maximum contact and tensile strength after crimping.
- Colour coded nylon sleeve improves wire size identification and tooling.
- Funnelled wire entry allows fast, easy insertion of stripped wire strands.
- Designed for reliable, uniform crimps using specialized tool dies.
- Suitable for various industrial applications including control instrumentation, power supplies, and aerospace.
- Meets or exceeds MIL-T-7928, Type II, Class 1 and 2 standards.
Product Description
TE Connectivity 52077 PIDG insulated ring terminal features a yellow nylon insulation sleeve designed for M12 stud size providing reliable performance for wire sizes 12 AWG to 10 AWG. The product is engineered with high conductivity copper contact material and tin plating ensuring efficient electrical connection and excellent durability.
The precision-formed copper body and barrel include serrations to ensure maximum contact and tensile strength post-crimping. A copper sleeve surrounding the wire barrel offers improved insulation support preventing wire fraying. The funnelled wire entry design aids high-speed wire insertion while the colour coded nylon outer sleeve facilitates wire size identification and tooling selection during assembly.
These terminals are designed to deliver a uniform, reliable crimp, supported by specialized tool dies, making them ideal for use across demanding electrical circuits. The terminals are compliant with RoHS for environmental standards and operate safely up to 105°C maximum temperature.
Applications span instrumentation and control systems, lighting, power supplies, panel assemblies, transportation, lifting equipment, motors, aerospace, and household appliances, demonstrating versatility and robust reliability.
High conductivity copper body. Copper sleeve for enhanced wire insulation support. Serrated barrel for superior contact and tensile strength. Colour coded nylon insulation sleeve for easy wire size identification. Funnelled wire entry for efficient wire insertion.
Uniform reliable crimp enabled by precision tooling. Complies with MIL-T-7928 Type II Class 1 and 2 standards. RoHS compliant and temperature rated to 105°C.
This product is part of the extensive TE Connectivity ring terminals family optimized for professional industrial and electrical engineering use. Explore further Ring Terminal solutions on EnvMart to fit diverse wiring and connection requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 105°C.
This terminal is designed for wire sizes ranging from 12 AWG to 10 AWG, which corresponds to 2.6 mm² to 6.6 mm².
The contact material of this terminal is copper, which is tin plated to enhance conductivity.
The stud size for this terminal is M12.
The funnelled wire entry design allows for fast and easy insertion of stripped wire strands, improving installation efficiency.
This product complies with RoHS environmental standards and meets or exceeds MIL-T-7928, Type II, Class 1 and 2 standards.
The overall length of this terminal is 35.91 mm.
This terminal features nylon insulation, which is colour-coded for easy wire size identification.
The thickness of this ring terminal is 1.02 mm.
This terminal is suitable for various applications including instrumentation, control systems, lighting, power supplies, and aerospace.
The serrated barrel design of this terminal provides maximum contact and tensile strength after crimping.
The TE Connectivity PIDG insulated ring terminal is manufactured in India.
